Poulan Paramount SK125-00 Electric Trimmer

Model: SK125-00 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

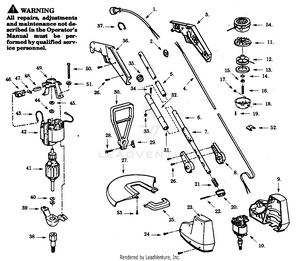

TRIMMER ASSEMBLY

...
...
1
Power Cord PLN-534234500
...
2
Trigger Switch PLN-534193001
...
3
R.H./L.H. Handle PLN-534356714
...
4
Harness PLN-534729100
...
5
Upper Tube PLN-534379804
...
6
Lower Tube PLN-534681200
...
7
Foam Grip PLN-534681300
...
8
R.H./L.H. Pivot PLN-534677604
...
9
R.H./L.H. Housing PLN-534676824
...
10
Motor Ass'y. PLN-534638603
...
11
Rear Plate PLN-534167215
...
12
Spool & Line PLN-534167815
...
13
Foam Pad PLN-534167700
...
14
O-Ring PLN-534316200
...
15
Adapter Nut PLN-534166700
...
16
Spring PLN-534819200
...
17
Eyelet PLN-534167600
...
18
Hub Ass'y. PLN-534167935
...
19
Cotter Pin PLN-534270300
...
20
Sleeve PLN-534678305
...
21
Spring PLN-534819200
...
22
Pin PLN-534327204
...
23
Hsg. Top Label PLN-534672500
...
24
SCREW PLN-534222402
...
25
Front Guard PLN-534678404
...
26
Screw PLN-534193700
...
27
Guard & Blade Ass'y. PLN-534681824
...
28
Bolt PLN-534218105
...
29
Wing Nut PLN-534437000
...
30
Assist Handle PLN-534156415
...
31
Outer Tube PLN-534393202
...
32
Warning Label (Not a serviceable part) PLN-534688400
...
33
Stop Nut PLN-534393500
...
34
Screw PLN-534393300
...
35
Bushing PLN-534356805
...
36
Handle Label PLN-534672000
...
37
Hanger PLN-534270100
...
38
Shaft Adapter PLN-534167100
...
39
Endbell Ass'y. (Drive) PLN-534872701
...
40
Washer PLN-534520022
...
41
Armature Ass'y. PLN-534367600
...
42
Field Ass'y. PLN-534367801
...
43
Lead Wire Ass'y. PLN-534810031
...
44
Washer PLN-534520031
...
45
Retaining Ring PLN-534246701
...
46
Brush Holder PLN-534260007
...
47
Brush Spring PLN-534570009
...
48
Brush PLN-534200018
...
49
Endbell Ass'y. (Brush) PLN-534710641
...
50
Screw PLN-534500261
...
51
Lockwasher PLN-534520020
...
52
Spanner Wrench PLN-534166800
...
53
Screw PLN-534184704
...
54
Cutting Head Ass'y. PLN-534167015
...
55
Operator Manual Not Shown. PLN-534885410
...
...
...
