Poulan Paramount SK120C-02 Electric Trimmer

Model: SK120C-02 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

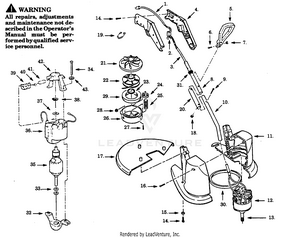

TRIMMER ASSEMBLY

...
...
1
Power Cord PLN-534234501
...
2
Switch PLN-534193001
...
3
Harness PLN-534162315
...
4
R.H./L.H. Handle PLN-534356762
...
5
Assist Handle PLN-534156415
...
6
Bolt PLN-534218103
...
7
Wing Nut PLN-534437000
...
8
Upper Tube PLN-534379803
...
9
Screw PLN-534393300
...
10
Lower Tube PLN-534360302
...
11
Motor Housing PLN-534273522
...
12
Motor PLN-534450007
...
13
Shaft Adapter PLN-534668005
...
14
Screw PLN-534193700
...
15
Washer PLN-534653000
...
16
Screw PLN-534193800
...
17
Guard Ass'y. PLN-534368001
...
18
Nut PLN-534393500
...
19
Hanger PLN-534270100
...
20
Outer Tube PLN-534393202
...
21
Rear Plate PLN-534167215
...
22
Spool & Line PLN-952710512
...
23
O-Ring PLN-534316200
...
24
Adapter Nut PLN-534166700
...
25
Spring PLN-534819200
...
26
Hub Ass'y. PLN-534167905
...
27
Cotter Pin PLN-534270301
...
28
Eyelet PLN-534167600
...
29
Foam Pad PLN-534167700
...
30
Baffle PLN-534367900
...
31
Bushing PLN-534356805
...
32
Endbell Ass'y. (Drive) PLN-534872701
...
33
Washer PLN-534520022
...
34
Screw PLN-534500261
...
35
Armature Ass'y. PLN-534367600
...
36
Field Ass'y. PLN-534367801
...
37
Washer PLN-534520031
...
38
Retaining Ring PLN-534246701
...
39
Brush Holder PLN-534260007
...
40
Brush Spring PLN-534570009
...
41
Brush PLN-534200018
...
42
Endbell Ass'y. (Brush) PLN-534872601
...
43
Lockwasher PLN-534520020
...
...
...
