Poulan Paramount SK100C-00 Electric Trimmer

Model: SK100C-00 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

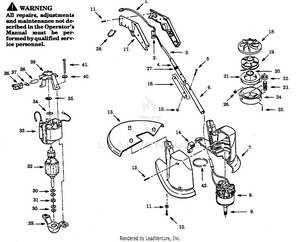

TRIMMER ASSEMBLY

...
...
1
Power Cord PLN-534234501
...
2
Switch PLN-534193001
...
3
Harness PLN-534162324
...
4
Upper Tube PLN-534379802
...
5
Screw PLN-534393300
...
6
Lower Tube PLN-534379702
...
7
R.H./L.H. Housing PLN-534273524
...
8
Motor PLN-534450004
...
9
Drive Adapter PLN-534668005
...
10
Screw PLN-534193700
...
11
Washer PLN-534653000
...
12
Screw PLN-534193800
...
13
Guard PLN-534271914
...
14
Blade Retainer PLN-534292705
...
15
Nut PLN-534393500
...
16
Outer Tube PLN-534393203
...
17
R.H./L.H. Handle PLN-534356734
...
18
Rear Plate PLN-534167215
...
19
Spool & Line PLN-952710514
...
20
O-Ring PLN-534316200
...
21
Foam Pad PLN-534167700
...
22
Adapter Nut PLN-534166700
...
23
Spring PLN-534819200
...
24
Hub Ass'y. PLN-534167935
...
25
Cotter Pin PLN-534270301
...
26
Eyelet PLN-534167600
...
27
Bushing PLN-534356805
...
28
Hanger PLN-534270100
...
29
Endbell (Drive) PLN-534710067
...
30
Washer PLN-534520022
...
31
Washer PLN-534632001
...
32
Armature Ass'y. PLN-534010701
...
33
Field Ass'y. PLN-534294701
...
34
Washer PLN-534520031
...
35
Washer PLN-534246701
...
36
Brush Holder PLN-534260007
...
37
Brush Spring PLN-534570009
...
38
Brush PLN-534200018
...
39
Endbell (Brush) PLN-534872601
...
40
Lockwasher PLN-534520020
...
41
Screw PLN-534500026
...
42
Air Baffle PLN-534367900
...
...
...
