product name

Poulan Paramount PT122C-00 Electric Trimmer

Model: PT122C-00 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

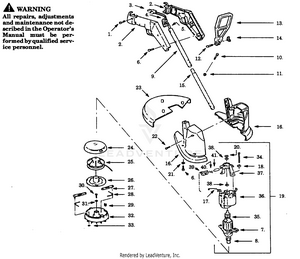

TRIMMER/BRUSHCUTTER ASSEMBLY

...
...
1
Screw PLN-534826802
...
2
Handle Set PLN-534826522
...
3
Plug PLN-534936001
...
4
Trigger Switch PLN-534193003
...
5
Harness Assembly PLN-534828001
...
6
Screw PLN-534826801
...
7
Endbell PLN-534872701
...
8
Shaft Adaptor PLN-534918602
...
9
Upper Handle Tube PLN-534828100
...
10
Screw PLN-534829600
...
11
Nut PLN-534828300
...
12
Bolt PLN-534828400
...
13
Assist Handle PLN-534159205
...
14
Nut PLN-534828500
...
15
Tube PLN-534828200
...
16
Housing Set PLN-534826602
...
17
Lead Wire PLN-534810031
...
18
Washer PLN-534520020
...
19
Motor Assembly PLN-534968403
...
20
Retaining Ring PLN-534246701
...
21
Washer PLN-534828700
...
22
Screw PLN-534826800
...
23
Guard PLN-534368004
...
24
Cover PLN-534919200
...
25
Spool w/Line PLN-952710536
...
26
Cam PLN-534100640
...
27
Arm PLN-534918800
...
28
Spring PLN-534908501
...
29
Line Saver PLN-534918500
...
30
Screw PLN-534978600
...
31
Washer PLN-534908700
...
32
Housing Ass'y. (Inc. 27,28,29,32,33) PLN-534972601
...
33
Nut PLN-534400700
...
34
Screw PLN-534500261
...
35
Armature/End Bell PLN-534367600
...
36
Field Ass'y PLN-534367803
...
37
Endbell PLN-534872601
...
38
Washer PLN-534494616
...
39
Brush Holder Ass'y PLN-534260007
...
40
Spring PLN-534570009
...
41
Brush PLN-534200018
...
...
...
