Poulan Paramount PT120-00 Electric Trimmer

Model: PT120-00 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

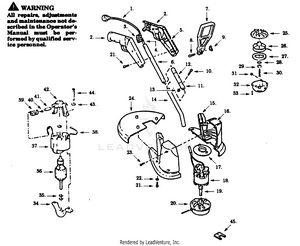

TRIMMER ASSEMBLY

...
...
1
Power Cord PLN-534234500
...
2
Handle Set PLN-534356742
...
3
Trigger Switch PLN-534193001
...
4
Harness PLN-534162315
...
5
Handle Label PLN-534795300
...
6
Upper Tube PLN-534379801
...
7
Assist Handle Ass'y. PLN-534156415
...
8
Bolt PLN-534218105
...
9
Wing Nut PLN-534437000
...
10
Screw PLN-534393300
...
11
Outer Tube PLN-534393200
...
12
Warning Label PLN-534764300
...
13
Locknut PLN-534393500
...
14
Lower Tube PLN-534360300
...
15
Housing Set PLN-534273532
...
16
Housing Top Label PLN-534795400
...
17
Air Baffle PLN-534455305
...
18
Motor PLN-534450007
...
19
Shaft Adapter PLN-534167100
...
20
Cutting Head Ass'y. PLN-534167065
...
21
Screw PLN-534193700
...
22
Washer PLN-534653000
...
23
Screw PLN-534193800
...
24
Guard & Blade Ass'y. PLN-534368003
...
25
Rear Plate PLN-534167215
...
26
Spool & Line PLN-534167815
...
27
Foam Pad PLN-534167700
...
28
O-Ring PLN-534316200
...
29
Adapter Nut PLN-534166700
...
30
Spring PLN-534819200
...
31
Eyelet PLN-534167600
...
32
Hub Ass'y. PLN-534167935
...
33
Cotter Pin PLN-534270301
...
34
Endbell Ass'y. (Drive) PLN-534872701
...
35
Washer PLN-534520022
...
36
Armature Ass'y. PLN-534367600
...
37
Field Ass'y. PLN-534367801
...
38
Leadwire Ass'y. PLN-534810031
...
39
Brush Holder Ass'y. PLN-534260007
...
40
Brush Spring PLN-534570009
...
41
Brush PLN-534200018
...
42
Endbell Ass'y. (Brush) PLN-534710641
...
43
Lockwasher PLN-534520020
...
44
Screw PLN-534500261
...
45
Spanner Wrench PLN-534166800
...
46
Operator Manual Not Shown. PLN-534885740
...
...
...
