product name

Poulan Paramount PB340 Electric Blower

Model: PB340 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

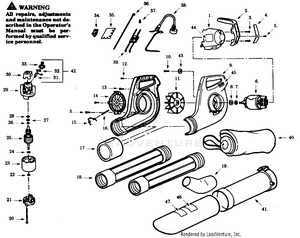

BLOWER ASSEMBLY

...
...
1
Motor Cover PLN-534319601
...
2
Handle PLN-534319705
...
3
Screw PLN-534015772
...
4
Plate Warning PLN-534404355
...
5
Screw PLN-534193700
...
6
Motor PLN-534992001
...
7
Retaining Ring PLN-534747011
...
8
Washer PLN-534136100
...
9
L.H/R.H. Housing PLN-534972301
...
10
Screw PLN-534136401
...
11
Impeller Ass'y. PLN-534398315
...
12
Screw PLN-534184700
...
13
Screw PLN-534790300
...
14
Inlet Cover PLN-534543305
...
15
Spring PLN-534475900
...
16
Hinge Pin PLN-534327201
...
17
Ferrule Sleeve PLN-534408415
...
18
Outlet Tube PLN-534352705
...
19
Curved Nozzle PLN-534373405
...
20
Screw PLN-534228700
...
21
Endbell Ass'y. (Drive) PLN-534207101
...
22
Washer PLN-534228800
...
23
Field Ass'y. PLN-534227001
...
24
Retaining Ring PLN-534747002
...
25
Armature Ass'y. PLN-534992401
...
26
Retaining Ring PLN-534246702
...
27
Washer PLN-534228802
...
28
Washer PLN-534238903
...
29
Endbell Ass'y. (Brush) PLN-534227501
...
30
Insulator PLN-534226000
...
31
Brush PLN-534227800
...
32
Brush Spring PLN-534228000
...
33
Brush Holder PLN-534227700
...
34
On-Off Switch Ass'y. PLN-534332506
...
35
Mounting Board PLN-534334800
...
36
Leadwire Ass'y. PLN-534433800
...
37
Wire Nut PLN-534253201
...
38
Power Cord Ass'y. PLN-534193202
...
39
P.C. Board Ass'y. PLN-534345405
...
40
Vacuum Bag PLN-534339900
...
41
Vacuum Tube PLN-534528705
...
42
Brush Kit (Incl. 31-33) PLN-534450400
...
43
Washer PLN-534757900
...
44
Motor Cover Label (Not a serviceable part) PLN-534991800
...
45
Switch Position Label PLN-534500300
...
46
Name Plate Label (Not a serviceable part) PLN-534100501
...
47
Warning Label PLN-534869300
...
48
Operator Manual Not Shown. PLN-534887250
...
49
Carton (Not a serviceable part) Not Shown. PLN-534825318
...
...
...
