Poulan Paramount PB200-00 Electric Blower

Model: PB200-00 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

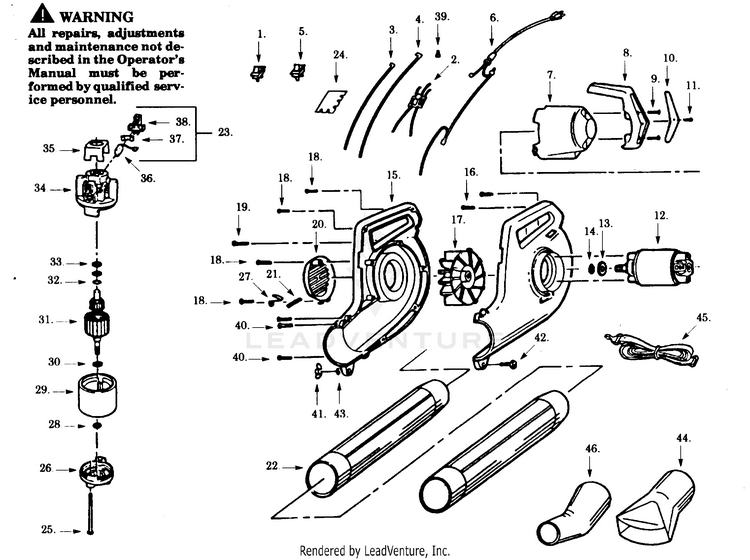

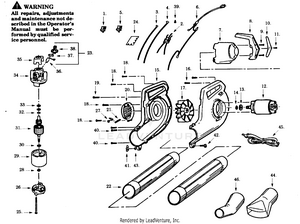

BLOWER ASSEMBLY

...
...
1
On-Off Switch PLN-534158303
...
2
P.C. Board Ass'y. PLN-534335300
...
3
Lead Wire Ass'y. PLN-534335000
...
4
Lead Wire Ass'y. PLN-534332201
...
5
Speed Switch PLN-534158302
...
6
Power Cord Ass'y. PLN-534335200
...
7
Motor Cover PLN-534319602
...
8
Handle PLN-534319702
...
9
Screw PLN-534136402
...
10
Plate PLN-534404355
...
11
Screw PLN-534193700
...
12
Motor PLN-534225010
...
13
Washer PLN-534136100
...
14
Retainer Ring PLN-534747002
...
15
R.H./L.H. Housing PLN-534334711
...
16
Screw PLN-534136401
...
17
Impeller Ass'y. PLN-534398315
...
18
Screw PLN-534184700
...
19
Screw PLN-534222400
...
20
Inlet Cover PLN-534319802
...
21
Hinge Pin PLN-534327200
...
22
Outlet Tube PLN-534352705
...
23
Brush Kit (Incl. 36,37,38) PLN-534450400
...
24
Mounting Board PLN-534334800
...
25
Screw PLN-534228700
...
26
Endbell Output PLN-534207101
...
27
Spring PLN-534377000
...
28
Washer PLN-534238903
...
29
Field Ass'y. PLN-534227001
...
30
Retainer Ring PLN-534246700
...
31
Armature PLN-534225010
...
32
Retainer Ring PLN-534747002
...
33
Washer PLN-534228800
...
34
Endbell (Brush) PLN-534227501
...
35
Insulator PLN-534226000
...
36
Brush PLN-534227800
...
37
Brush Spring PLN-534228000
...
38
Brush Holder PLN-534227700
...
39
Connector PLN-534561001
...
40
SCREW PLN-534222402
...
41
Wing Nut PLN-534352300
...
42
Screw PLN-534352400
...
43
Washer PLN-534356900
...
44
Diffuser Ass'y. PLN-534339405
...
45
Shoulder Strap PLN-534358900
...
46
Curved Nozzle PLN-534373405
...
...
...
