Poulan Paramount PB170HD-00 Electric Blower

Model: PB170HD-00 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

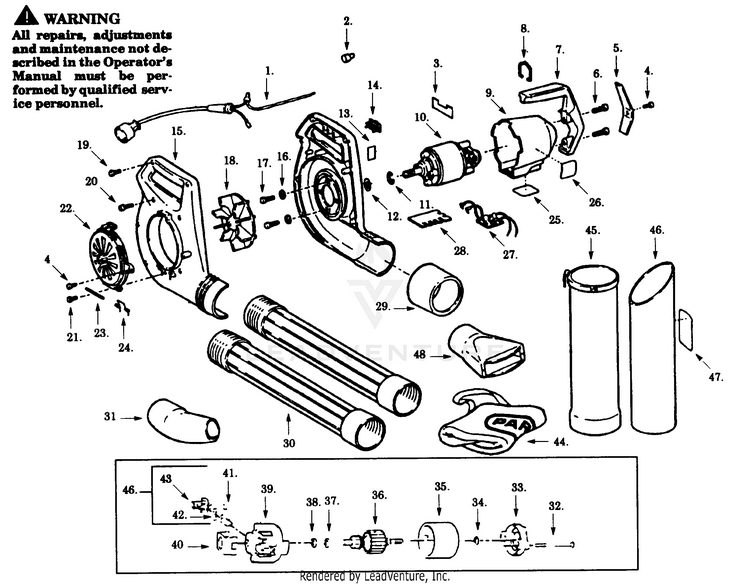

BLOWER ASSEMBLY

...
...
1
Power Cord Ass'y. PLN-534434001
...
2
Wire Nut PLN-534253201
...
3
Switch Label PLN-534500300
...
4
Screw PLN-534826801
...
5
Plate PLN-534404355
...
6
Screw PLN-534015772
...
7
Side Handle PLN-534319705
...
8
Hanger PLN-534270100
...
9
Motor Cover PLN-534319602
...
10
Motor Ass'y. PLN-534992001
...
11
Retaining Ring PLN-534747002
...
12
Washer PLN-534757900
...
13
Hsg. Front Label (Not a serviceable part) PLN-534797100
...
14
On/Off Switch PLN-534447903
...
15
Housing Set PLN-534491722
...
16
Washer PLN-534494604
...
17
Screw PLN-534136401
...
18
Impeller Ass'y. PLN-534398315
...
19
Screw PLN-534790302
...
20
Screw PLN-534790300
...
21
Screw PLN-534899900
...
22
Inlet Cover Ass'y. PLN-534498205
...
23
Pin Hinge PLN-534327201
...
24
Return Spring PLN-534475900
...
25
Warning Label PLN-534760704
...
26
Motor Cover Label (Not a serviceable part) PLN-534937900
...
27
P.C. Board Ass'y. PLN-534807001
...
28
Mounting Board PLN-534334800
...
29
Ferrule Sleeve PLN-534408415
...
30
Outlet Tube PLN-534352705
...
31
Nozzle PLN-534373405
...
32
Screw PLN-534228700
...
33
Endbell Ass'y. (Drive) PLN-534207101
...
34
Washer PLN-534228800
...
35
Field Ass'y. PLN-534227001
...
36
Armature Ass'y. PLN-534992401
...
37
Washer PLN-534228802
...
38
Washer PLN-534238903
...
39
Endbell Ass'y. (Brush) PLN-534227501
...
40
Insulator PLN-534226000
...
41
Brush PLN-534227800
...
42
Brush Spring PLN-534228000
...
43
Brush Holder PLN-534227700
...
44
Vacuum Bag PLN-534339900
...
45
Vacuum Tube PLN-534528705
...
46
Brush Kit (Incl.41,42,43) PLN-534450400
...
47
Warning Label-Tube PLN-534803400
...
48
Diffuser Nozzle PLN-534339405
...
49
Operator Manual Not Shown. PLN-534886570
...
50
Warning Decal (Not a serviceable part) Not Shown. PLN-534100471
...
51
Carton Not Shown. PLN-534061407
...
...
...
