Poulan Paramount 5201 Electric Trimmer

Model: 5201 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

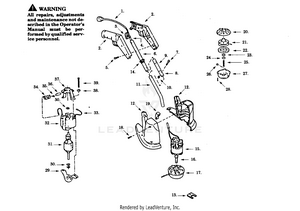

TRIMMER ASSEMBLY

...
...
1
Power Cord PLN-534234500
...
2
Handle Set PLN-534356713
...
3
Trigger Switch PLN-534193001
...
4
Harness PLN-534162324
...
5
Screw PLN-534193700
...
6
Upper Tube PLN-534379802
...
7
Screw PLN-534393300
...
8
Outer Tube PLN-534393203
...
9
Warning Label (Not a serviceable part) PLN-534778200
...
10
Locknut PLN-534393500
...
11
Lower Tube PLN-534379702
...
12
Housing Set PLN-534273583
...
13
Spanner Wrench PLN-534166800
...
14
Bushing PLN-534356805
...
15
Motor PLN-534638602
...
16
Shaft Adapter PLN-534167100
...
17
Auto Head Ass'y. PLN-534167035
...
18
Screw PLN-534193800
...
19
Blade Retainer Ass'y. PLN-534162205
...
20
Rear Plate PLN-534167215
...
21
Spool & Line PLN-534167805
...
22
Foam Pad PLN-534167700
...
23
O-Ring PLN-534316200
...
24
Adapter Nut PLN-534166700
...
25
Spring PLN-534819200
...
26
Eyelet PLN-534167600
...
27
Hub Ass'y. PLN-534167935
...
28
Cotter Pin PLN-534270301
...
29
Endbell Ass'y. (Drive) PLN-534872701
...
30
Washer PLN-534520022
...
31
Armature Ass'y. PLN-534010701
...
32
Field Ass'y. PLN-534294703
...
33
Lead Wire Ass'y. PLN-534810031
...
34
Brush Holder Ass'y. PLN-534260007
...
35
Brush Spring PLN-534570009
...
36
Brush PLN-534200018
...
37
Endbell Ass'y. (Brush) PLN-534710641
...
38
Lockwasher PLN-534520020
...
39
Screw PLN-534500264
...
40
Operator Manual Not Shown. PLN-534885840
...
...
...
