Poulan PR65Y21C - 96142000300 (2005-01) Walk Behind Mower

Model: PR65Y21C - 96142000300 (2005-01)

Save
 Part Not Listed?Part Not Listed?
product name

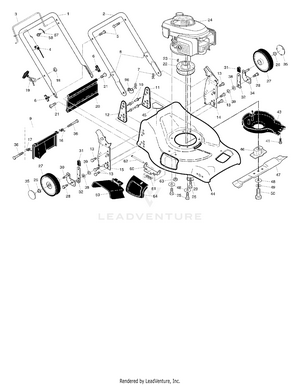

ASSEMBLY

...
...
1
188190X479 PLN-TBD
...
2
HANDLE.LOWER.21.FWGD.BLACK PLN-532175245
...
3
187940X428 PLN-187940X428
...
4
CABLE.MZR PLN-532183567
...
5
BOLT, HANDLE 5/16-18X1.75 PLN-532191574
...
6
189713X428 PLN-189713X428
...
7
HAIRPIN COTTER PLN-532051793
...
8
WIRE TIE PLN-532007192
...
9
REAR DOOR KIT. . 16 17 PLN-532180479
...
10
RIVET BLIND PLN-532128415
...
11
PLN-532175069
...
12
KIT.BRACKET.SUPPORT.RH.21.FWGD PLN-532421560
...
13
SCREW 14-20 X 5/8 PLN-817060410
...
14
181019X479 PLN-181019X479
...
15
181018X479 PLN-181018X479
...
16
SPRING LH PLN-532180071
...
17
SPRING.REAR.DOOR.EZ.21 PLN-532180072
...
18
NUT 1/4-20 NYLOC PLN-539976978
...
19
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788
...
20
SKIRT.REAR.21 FWGD.BLACK PLN-532413159
...
21
HINGE SCREW PLN-532088652
...
22
ENGINE PULLEY PLN-532185005
...
23
HI-PRO KEY PLN-532187723
...
24
(For engine service and replacement parts call Honda Engines at 1-800-426-7701) PLN-TBD
...
25
BOLT 3/8-16X1-1/8 PLN-532150406
...
26
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148
...
27
WHEEL.8X2.PR.LP.RADII.BLK PLN-532150339
...
28
189312 PLN-532189312
...
29
WASHER.ENGINE.BZP PLN-532125078
...
30
189596X004 PLN-189596X004
...
31
Selector Knob (AYP part number) PLN-532087877
...
32
SELECTOR SPRING PLN-532175060
...
34
189597X004 PLN-189597X004
...
35
HUBCAP PLN-532180660
...
36
BOLT PLN-532184193
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 PLN-532428867
...
38
WASHER PLN-532176185
...
39
PUSH NUT PLN-532176235
...
41
SCREW.HEX.WSH PLN-532192325
...
43
DEBRIS.SHIELD.FWGD.WALK.MOWER PLN-532187038
...
44
LAWN MOWER HOUSING . 10 11 12 45 PLN-532176710
...
45
DECAL.CUTFINGER.CE.02 PLN-581579101
...
46
BLADE ADAPTER PLN-532184590
...
47
BLADE.21.PUSH/RWGD/FWG PLN-532189028
...
48
WASHER,HARDEN PLN-532851074
...
49
SLW 3/8 STD PLN-539990118
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 PLN-532851084
...
57
BRACKET.UPSTOP PLN-532850733
...
58
SCREW PLN-532750634
...
59
DISCHARGE DEFLECTOR PLN-532175071
...
60
BRACKET.ASM.HINGE.21.FWGD. 175735 PLN-532175735
...
61
SPRING.TORSION PLN-532193000
...
62
ROD.HINGE.21 PLN-532175650
...
63
NUT 1/4-20 NYLOC PLN-539976978
...
64
DOOR.MULCH.21.REAR PLN-532175066
...
96
CLIP.CABLE.BLK PLN-532197991
...
xx
WARNING DECAL (not shown) PLN-530402152
...
xx
193733 PLN-TBD
...
xx
193736 PLN-TBD
...
xx
194710 PLN-TBD

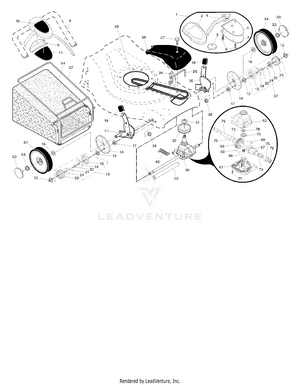

DRIVE

...
...
1
195091 PLN-TBD
...
2
188277 PLN-532188277
...
3
PULLEY.CAM.DRIVE.CONTROL.HV PLN-532187353
...
4
LEVER.SHORT.MARIGOLD 195585 PLN-583226701
...
5
188276 PLN-532188276
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 PLN-532181698
...
7
BRACKET, DRIVE CONTROL PLN-532184212
...
8
EA WLK COVER PLATE.BLK PLN-532184987
...
9
195412 PLN-532195412
...
10
195175 PLN-TBD
...
11
DECAL PLN-532185913
...
12
E-RING 7/16 RE PLN-812000058
...
13
KIT PINION ASM PLN-532414860
...
14
COVER.DUST.WHEEL.INNER.WALK PLN-581840401
...
15
SEAL.PINION PLN-532184172
...
16
WASHER FLUT PLN-532067725
...
17
BEARING, BALL PLN-532169911
...
18
Selector Knob (AYP part number) PLN-532087877
...
19
DISC.DRIVE.21.EZ-WALK PLN-532175104
...
20
SPRING, TORSION PLN-532188291
...
21
PAWL.DRIVE.21.EZ-WALK PLN-532175098
...
22
RETAINER.DRIVE.21.EZ-WALK.LT PLN-532175105
...
23
GEAR, PINION PLN-532175103
...
24
RETAINER, DRIVE, RH PLN-532175102
...
25
KEEPER, BELT PLN-532188102
...
26
SCREW PLN-532173715
...
27
SCREW, HEX HD TAPPING #10-24 1 PLN-532175262
...
28
180329 PLN-532180329
...
29
21" DRIVE BELT (IN SLEEVE) PLN-531300774
...
30
HUBCAP PLN-532180660
...
31
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148
...
32
PULLEY.DRIVE.EZ/VARI.SCREWON PLN-532443262
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409149
...
34
WHEEL.8X2XRADI PLN-532180775
...
35
KIT.ADJUSTER.ASM.EZ.LH PLN-532180915
...
36
TRANSMISSION.21RD.FGDE PLN-532187212
...
37
KIT PINION ASM PLN-532414860
...
38
NUT 1/4-20 NYLOC PLN-539976978
...
40
SPRING PLN-532406558
...
41
KIT.ADJUSTER.ASM.EZ(169770).RT PLN-532180914
...
54
194697 PLN-TBD
...
55
PLN-532175739
...
57
FRAME.GBAG.21.FWGD. PLN-532194643
...
61
LOWER CASE Use Dow Corning 709 to reseal Gear Case Halves PLN-532187525
...
62
UPPER CASE Use Dow Corning 709 to reseal Gear Case Halves PLN-532187526
...
63
GEAR.27.TEETH.WALK.MOWER PLN-532183499
...
66
SHAFT INPUT (13056) PLN-532187527
...
67
SPACER PLN-532187528
...
69
WIRE, FORMED PLN-532183505
...
70
BEARING PLN-532183506
...
72
SEAL.OUTPUT.SHAFT PLN-532183508
...
73
WASHER PLN-532183509
...
75
BUSHING PLN-532183511
...
76
SHAFT OUTPUT (12198) PLN-532187529
...
77
SCREW PLN-532183513
...
78
SEAL INPUT SHAFT PLN-532183514
...
...
...
