Poulan PP28PD - 967228701 (2014-09) Pole Pruner-Pole Saw

Model: PP28PD - 967228701 (2014-09)

Save
 Part Not Listed?Part Not Listed?
product name

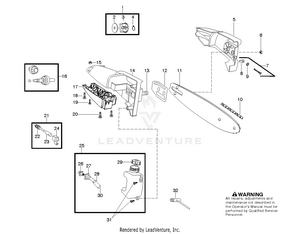

CUTTING EQUIPMENT

...
...
1
SPROCKET PLN-530071647
...
2
WASHER PLN-530056521
...
3
SPROCKET PLN-530056520
...
4
RING SPROCKET RETAINER PLN-530056563
...
5
BAR CLAMP ASSY PLN-530057100
...
6
BAR NUT PLN-530015917
...
7
RETAINER PLN-530069611
...
8
ADJUST PIN,BAR 36/41 PLN-530015826
...
9
RETAINER PLN-530038593
...
10
CHAIN PLN-530051524
...
11
BAR PLN-530044908
...
12
PAD BAR PLATE PLN-530056523
...
13
BOLT PLN-530016133
...
14
GEAR HOUSING UPPER PLN-530056513
...
15
NUT,HEX PLN-530016284
...
16
KIT GEAR ASSY PLN-530071646
...
17
GEAR HOUSING LOWER PLN-530056514
...
18
SCR 10-24 MS LDK PAN PH PLN-530016312
...
19
SCREW-10-14 X 1/2 PLASTITE PLN-530015805
...
20
SCREW-10-14 X 13/16 (PL PLN-530015886
...
21
OILER PLN-530071645
...
22
ASSY GEAR PLUNGER PLN-530053764
...
23
BARREL PLN-530053765
...
24
OIL BLOCK ASSY PLN-530057347
...
25
ASSY OIL TANK PLN-530150266
...
26
OIL PUMP FITTING PLN-530056524
...
27
LINE OIL INTAKE PLN-530021160
...
28
Filter-Oil PLN-530056533
...
29
CAP OIL PLN-530150552
...
30
Filter-Oil PLN-530056533
...
31
SCREW PLN-530015843
...
32
WRENCH-BAR PLN-530031163

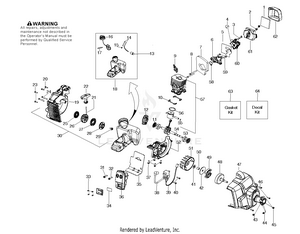

ENGINE

...
...
1
FILTER FOAM PLN-581976201
...
2
NUT PLN-530016101
...
3
LEVER CHOKE PLN-585165801
...
4
PURGE BULB ZAMA PLN-530058709
...
5
KIT GASKET CARB 28CC PLN-585345906
...
6
CARB ADAPTOR PLN-530035596
...
7
KIT GASKET 28CC PLN-585345911
...
8
BOLT CARB ADAPTOR PLN-530016400
...
9
Spark Plug PLN-503235112
...
10
SEAL CYLINDER PLN-545083301
...
11
KIT GASKET 28CC PLN-585345911
...
12
STARTER PAWL BRIDGE PLN-503873305
...
13
FUEL PICK-UP ASSY PLN-530095646
...
14
KIT-LINE(FUEL) PLN-530069599
...
15
FUEL LINE FITTING DBL BARB PLN-581411001
...
16
ASSY FUEL CAP PLN-578931002
...
17
KIT GASKET 28CC PLN-585345911
...
18
KIT FUEL TANK PP 28CC PLN-585345901
...
19
HOUSING STARTER PLN-585867401
...
20
SCREW PLN-545003511
...
21
KIT ROPE PLN-545008079
...
22
STARTER HANDLE PLN-545208401
...
23
SCREW PLN-545003511
...
24
SCREW M5-0.8X30MM PLN-530016426
...
25
KIT STARTER SPRING PLN-545008087
...
26
KIT PULLEY/SPRING PLN-585530301
...
27
DRIVER SPRING PLN-578465101
...
28
PULLEY STARTER DRIVE PLN-579366201
...
29
SCREW PLN-530016468
...
30
KIT HOUSING STARTER PLN-585345909
...
31
BOLT MUFFLER PLN-530058982
...
32
BOLT MUFFLER PLN-530058982
...
33
SCREW-6-19X5/16PLAST PA PLN-530015241
...
34
KIT SPARK ARRESTOR SCREEN PLN-545030501
...
35
KIT GASKET 28CC PLN-585345911
...
36
KIT MUFFLER W/CATALYST PLN-585345903
...
37
SCREW-M5-0.8 X 25MM(TAP) PLN-530015897
...
38
IGNITION MODULE MBU-7 PLN-545046701
...
39
ASSY MOD LEADWIRE PLN-585696001
...
40
SCREW M4 X .70 TT 16MM PLN-530016456
...
41
WASHER CLUTCH PLN-530016463
...
42
WASHER-CLUTCH PLN-530094189
...
43
SCREW-10-14 X 1/2 PLASTITE PLN-530015805
...
44
SCREW-10-24 X 1" (UNC) PLN-530015774
...
45
LOCKNUT-HEX 10-24 PLN-530015768
...
46
SCREW M4 X .70 TT 16MM PLN-530016456
...
47
ASSY FAN HOUSING PLN-583974801
...
48
CLUTCH DRUM ASSY PLN-578426601
...
49
ASSEMBLY CLUTCH PLN-585578701
...
50
SPACER FLYWHEEL PLN-530057852
...
51
FLYWHEEL PLN-530039242
...
52
CASTING C/CASE PLN-545195602
...
53
Bearing - Crankshaft PLN-545013401
...
54
ASSY CRANKSHAFT PLN-545195202
...
55
WRIST PIN RET. PLN-530015162
...
56
RING PISTON 28CC AIP PLN-575227401
...
57
KIT PISTON & CYLINDER PLN-545008082
...
58
KIT GASKET 28CC PLN-585345911
...
59
SCREW-M5-0.8 X 25MM(TAP) PLN-530015897
...
60
CARB FE PLN-585345913
...
61
HOUSING AIR FILTER BLACK PLN-581866401
...
62
COVER FILTER HSG PLN-585165701
...
63
KIT GASKET 28CC PLN-585345911
...
64
PLN-585345915

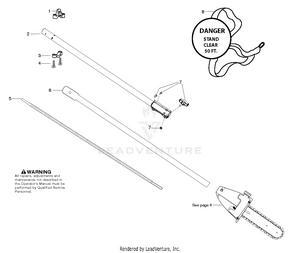

SHAFT

...
...
1
CLAMP HARNESS UPPER PLN-530057986
...
2
TUBE PLN-576472801
...
3
CLAMP LOWER HARNESS PLN-530057987
...
4
SCREW PLN-530015940
...
5
FLEX-LOWER PLN-530096218
...
6
ASSY D'SHAFT SVC 24" BLACK PLN-574305301
...
7
ASSY COUPLER BLACK PLN-545213801
...
8
Shoulder Strap PLN-530094417

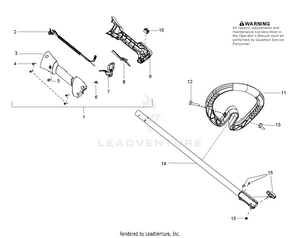

SHAFT HANDLE

...
...
1
ASSY THROTTLE HSG PLN-584440304
...
2
ASSY CABLE/WIRE HARNESS PLN-585205602
...
3
HANDLE HALF RIGHT PLN-545187601
...
4
SCREW M4 X 1.75 PT 16MM PLN-530016449
...
5
SCREW M4 X 1.75 PT 16MM PLN-530016449
...
6
SPRING PLN-545190001
...
7
TRIGGER PLN-585217001
...
8
LOCKOUT TRIGGER PLN-545187801
...
9
HANDLE HALF LEFT PLN-545187501
...
10
SWITCH PLN-545049309
...
11
HANDLE ASSIST 1" PLN-530058583
...
12
BOLT, TYPE 2 PLN-530015820
...
13
Nut PLN-530091373
...
14
KIT DRIVESHAFT UPPER PLN-585345905
...
15
ASSY COUPLER BLACK PLN-545213801
...
...
...
