Poulan PO550SH - 96112010603 (2012-05) Walk Behind Mower

Model: PO550SH - 96112010603 (2012-05)

Save
 Part Not Listed?Part Not Listed?
product name

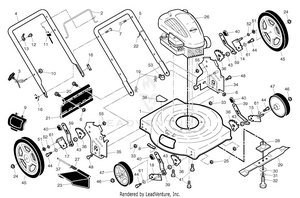

FRAME ENGINE

...
...
1
KIT.HOUSING.22".PUSH.MARIGOLD . 38 PLN-532172820
...
2
BAIL.CONT.D.STRAIGHT.PUSH.BLK PLN-532196025
...
3
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788
...
4
HANDLE.UPPER.ECONOMY.BLACK PLN-532448263
...
5
HANDLE.LOWER.D-STRAIT.BLACK PLN-532434514
...
6
NUT 1/4-20 NYLOC PLN-539976978
...
7
BOLT, HANDLE 5/16-18X1.75 PLN-532191574
...
8
CLIP. CLOSEOUT PLN-532161622
...
9
PLATE.MULCHER.22.ECON.BLACK PLN-532160830
...
10
NUT 1/4-20 NYLOC PLN-539976978
...
11
CABLE.MZR.RATO.22"LOW. PLN-532440934
...
12
SCREW PLN-532178848
...
13
BRACKET.UPSTOP.RT PLN-532430034
...
15
ARM.ASM.AXLE.5/9.POS. REAR RH / FRONT LF PLN-532401174
...
16
HANDLE.KNOB.BLACK PLN-532185577
...
18
ARM.ASM.AXLE.5/9.POS.BZP REAR LH / FRONT RH PLN-532401175
...
19
HAIRPIN COTTER PLN-532051793
...
20
BOLT.HEX.1/4.X.3/4.DICHROMATE PLN-874760412
...
21
SKIRT.REAR.22RD/SD.FO/VE PLN-532413160
...
22
WIRE TIE PLN-532007192
...
23
GUARD.DISCHARGE.22". PLN-532160831
...
25
NUT.FLANGE.HEX.5/16X18.BLACK PLN-532426589
...
26
ENGINE.RATO.550S.140CC.25MM RATO RV140- 1 PLN-532445722
...
27
SPRING.HINGE PLN-532408585
...
28
ADAPTER.BLADE.W/KEY.25MM.CE PLN-532418373
...
29
BLADE.22.MULCH.STANDARD PLN-532406713
...
30
WASHER,HARDEN PLN-532851074
...
31
SLW 3/8 STD PLN-539990118
...
32
BOLT.3/8-24X1.25 GR8 PLN-583116901
...
33
NUT.71038.31-18.HEX.NYLOCK PLN-873800500
...
34
BRKT.ASM.HDL.22.ECON.BLACK PLN-532403508
...
35
BRKT.ASM.HNDL.22.ECON.HW.RH.BL PLN-532403507
...
36
BRACKET ADJ. 5 POS ADS PLN-532407494
...
37
HINGE ROD PLN-532160833
...
38
DECAL.CUTFINGER.CE.02 PLN-581579101
...
39
SPRING.SELECTOR.5POS.BZP PLN-532401621
...
40
KNOB PM PLN-532087877
...
41
BOLT 3/8-16X1-1/8 PLN-532150406
...
43
SPACER.HEIGHT.ADJUSTER PLN-532401629
...
44
SHOULDER BOLT 5/16-18 PLN-532401638
...
45
WHEEL.12X1.75.5SPK.BRK.GRN. PLN-532440487
...
46
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148
...
47
WHEEL.7X1.75.5SPK.BRK.BLACK PLN-532430501
...
61
WASHER.CURVED.CYLINDRICAL PLN-532401630
...
14
ARM.ASM.AXLE..LR.5/9.POS.BZP LH PLN-532401176
...
17
ARM.ASM.AXLE..RR.5/9.POS.BZP RH PLN-532401177
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409149
...
48
BOLT PLN-874760514
...
51
WASHER PM PLN-532088348
...
52
O-RING..070X.487.NEOPRENE PLN-532197480
...
55
NUT.LOCK.5/16-18 PLN-532751153
...
59
SPRING.SEL.EXT.21.DOMED.12/14 PLN-532401624
...
xx
DECAL, WARNING (NOT SHOWN) NOT SHOWN PLN-532404764
...
...
...
