Poulan PE3500 Gas Edger

Model: PE3500 Gas Edger

Save
 Part Not Listed?Part Not Listed?
product name

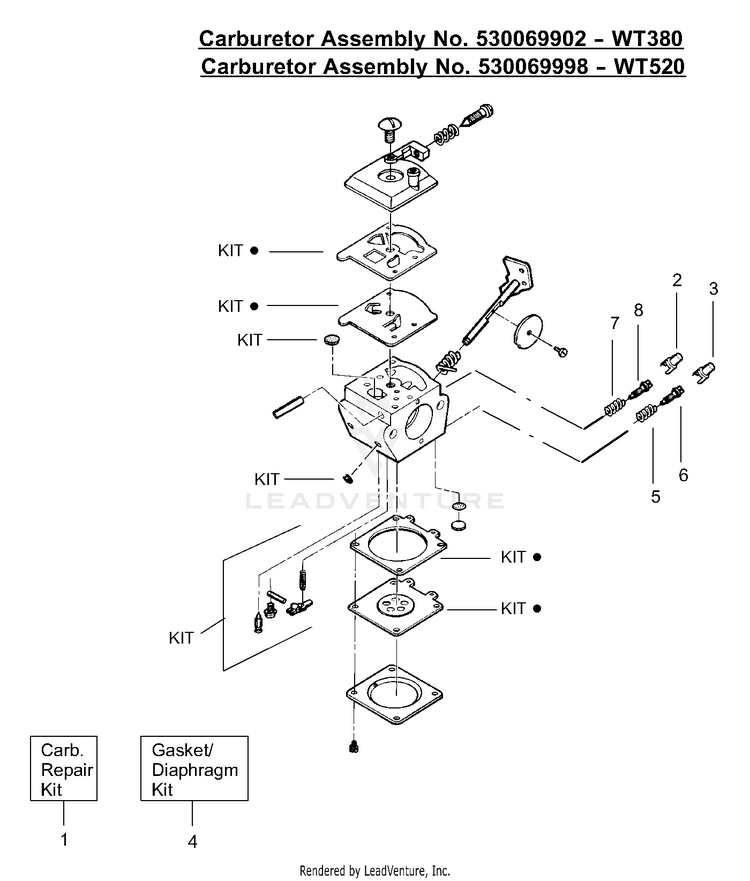

Carburetor Assembly (WT380) PN 530069902, (WT520) 530069998

...
...
1
Carburetor Repair Kit (KIT=Indicates Contents) PLN-530069829
...
2
Limiter Cap (High-Red) PLN-530038318
...
3
Limiter Cap (Low-Blue) PLN-530038317
...
4
Gasket/Diaphragm Kit (DOT=Indicates Contents) PLN-530069844
...
5
Needle Spring-Low Speed PLN-530035293
...
6
Needle-Low Speed PLN-530035433
...
7
Needle Spring-High Speed PLN-530035295
...
8
Needle-High Speed PLN-530035388
...
530069902
Carburetor Assembly - WT-639 PLN-530071639
...
530069998
Carburetor Assembly - WT-639 PLN-530071639

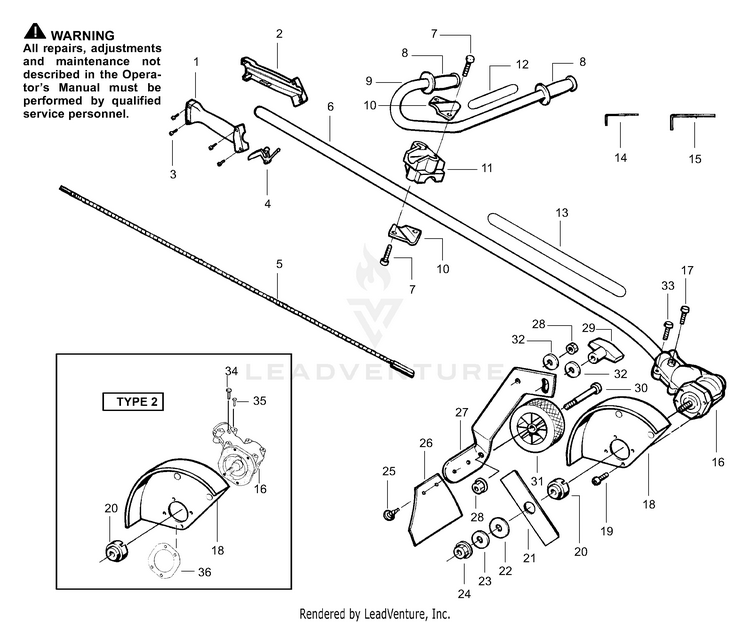

Driveshaft

...
...
1
Throttle Hsg. Right PLN-530036515
...
2
Throttle Hsg. Left PLN-530036514
...
3
Screw PLN-530015957
...
4
Lever-Throttle PLN-530036556
...
5
Shaft-Flex PLN-530094585
...
6
Assy-Driveshaft PLN-530053438
...
7
Screw PLN-530015791
...
8
Fin Grip PLN-530092086
...
9
Assy-Handlebar PLN-530069999
...
10
Bracket-Handlebar PLN-530053659
...
11
Clamp-Handlebar PLN-530012207
...
12
Decal-Handlebar Warning PLN-530027778
...
13
Decal-Shaft Warning PLN-530053042
...
14
Hex Wrench (5/32) PLN-530031159
...
15
Hex Wrench (3/16) PLN-530031098
...
16
Type 1 PLN-530053047
...
16
Type 2 PLN-530071378
...
17
Screw PLN-530016140
...
18
Type 1 PLN-530053008
...
18
Kit - Edger Guard PLN-530071930
...
19
Screw PLN-530016312
...
20
Kit-Dust Cup PLN-530071521
...
21
Blade PLN-530053007
...
22
Washer-Flat PLN-530015792
...
23
Washer-Belleville PLN-530016240
...
24
Nut-Flange PLN-530015793
...
25
Fastener Mud Flap PLN-530053012
...
26
Mud Flap Kit (Incls. #25) PLN-530071251
...
27
Wheel Bracket PLN-530053009
...
28
Locknut PLN-530015515
...
29
Knob PLN-530092059
...
30
Bolt-Shoulder Axle PLN-530015981
...
31
Wheel (Front) PLN-530095125
...
32
Washer PLN-530092062
...
33
Screw PLN-530015650
...
34
Screw PLN-530016301
...
35
Screw PLN-530016309
...
36
Type 1 Not Shown; Operator Manual PLN-530087018
...
36
Type 2 Not Shown; Operator Manual PLN-530086382
...
xx
Decal-Guard Warning Not Shown; Operator Manual PLN-545074501

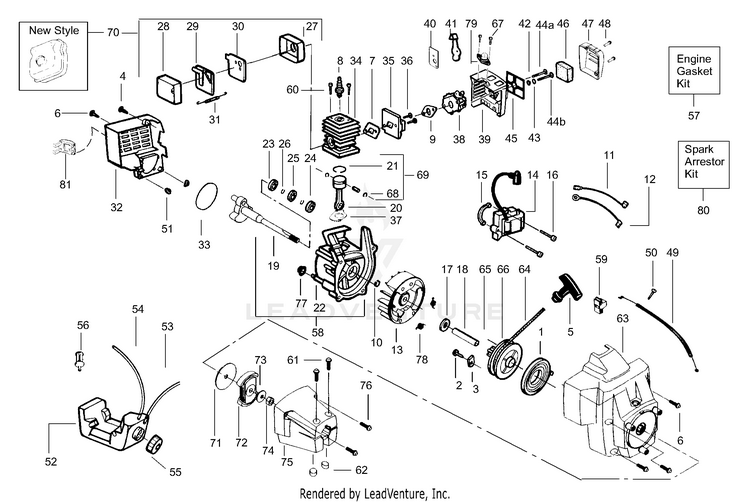

Power Unit

...
...
1
STARTER SPRING PLN-545008010
...
2
Screw PLN-530015775
...
3
Retainer PLN-530027523
...
4
Screw PLN-530015934
...
5
Starter Handle PLN-530027569
...
6
SCREW PLN-530016386
...
7
Gasket-Cyl/Carb Adapt PLN-530019233
...
8
Spark Plug PLN-503235112
...
9
Gasket-Carb PLN-530035421
...
10
Retainer Ring (C'shaft) PLN-530015941
...
11
Lead Wire Ass'y. PLN-530014663
...
12
SWITCH, GROUND WIRE PLN-581425901
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Service Ref. (C) PLN-530052266
...
14
Service Ref. (D) PLN-530039163
...
15
Spacer-Ign. Module PLN-530036145
...
16
Screw PLN-530015954
...
17
Washer PLN-530015149
...
18
Spacer-Flywheel PLN-530037705
...
19
C'case & C'shaft Ass'y. PLN-530071625
...
20
Connecting Rod Ass'y. PLN-530069615
...
21
Service Ref. (C) PLN-530053565
...
21
RING PISTON PLN-545154001
...
22
Assy-Crankcase PLN-530071627
...
23
Inner Bearing PLN-530032125
...
24
Outer Bearing PLN-530032124
...
25
C'case Seal PLN-530019179
...
26
Retaining Ring (C'case) PLN-530015945
...
27
Muffler Body PLN-530036578
...
28
Muffler Cover PLN-530036577
...
29
Muffler Baffle-Exit PLN-530053500
...
30
Muffler Baffle-First PLN-530053499
...
31
Old Style PLN-530016197
...
31
New Style PLN-530042088
...
32
Service Ref. (C) PLN-530053320
...
32
Service Ref. (D) PLN-530049233
...
34
Cylinder PLN-530053445
...
34
Cylinder PLN-530012416
...
35
Carb. Adaptor Kit PLN-530071250
...
36
Service Ref. (C) PLN-530016014
...
36
Service Ref. (D) PLN-530015849
...
37
Gasket-Cylinder PLN-530019223
...
38
Carburetor Assembly - WT-639 PLN-530071639
...
38
Carburetor Assembly - WT-639 PLN-530071639
...
39
Service Ref. (C) PLN-530053323
...
39
Service Ref. (D) PLN-530037969
...
40
Choke Mounting Plate PLN-530037326
...
41
Choke Shutter PLN-530038102
...
42
Washer PLN-530015254
...
43
Spacer-Choke PLN-530015852
...
44A
Screw-Carb Screw PLN-530015849
...
44B
Screw-Carb. Screw PLN-530015887
...
45
Support Plate/Filter PLN-530037413
...
46
Air Filter Foam PLN-530037331
...
47
Cover-Air Box PLN-530037292
...
48
Screw PLN-530015957
...
49
Throttle Cable Ass'y. PLN-530037415
...
50
Screw PLN-530015814
...
51
Isolator-Shroud PLN-530036793
...
52
Fuel Tank Ass'y. PLN-530049413
...
53
Fuel Line-Tank/Purge PLN-530069216
...
54
Fuel Line-Carb/Purge PLN-530069247
...
55
Fuel Cap Ass'y. PLN-530014347
...
56
Fuel Pickup Ass'y. PLN-530095646
...
57
Engine Gasket Kit (Incl. 7, 9, 33 & 3 PLN-530071253
...
58
C'case & C'shaft Ass'y. (Incl. 10,19,22-26) PLN-530071625
...
59
Switch Kit PLN-530069572
...
60
Screw PLN-530015953
...
61
Screw PLN-530015767
...
62
Locknut PLN-530015768
...
63
Service Ref. (C) PLN-530053602
...
63
Service Ref. (D) PLN-530049857
...
64
Rope Kit PLN-530069232
...
65
Screw PLN-530016080
...
66
STARTER PULLEY KIT PLN-530071786
...
67
Screw PLN-530015780
...
68
Piston Pin Retainer PLN-530015162
...
69
Service Ref. (C) PLN-530069992
...
69
PISTON KIT PLN-530071785
...
70
Old Style PLN-530069989
...
70
New Style PLN-530071390
...
71
Washer-Clutch PLN-530015611
...
72
Clutch Ass'y. PLN-530069491
...
73
Washer-Flat PLN-530015828
...
74
Nut PLN-530626605
...
75
Service Ref. (C) PLN-530069997
...
75
Service Ref. (D) PLN-530014923
...
76
Screw PLN-530015886
...
77
Isolator-Crankcase PLN-530036792
...
78
Spring-Starter Dog PLN-530023817
...
79
Bulb Ass'y. PLN-530038874
...
80
Old Style PLN-530071290
...
80
New Style PLN-530071391
...
81
Guard-Muffler PLN-530054536

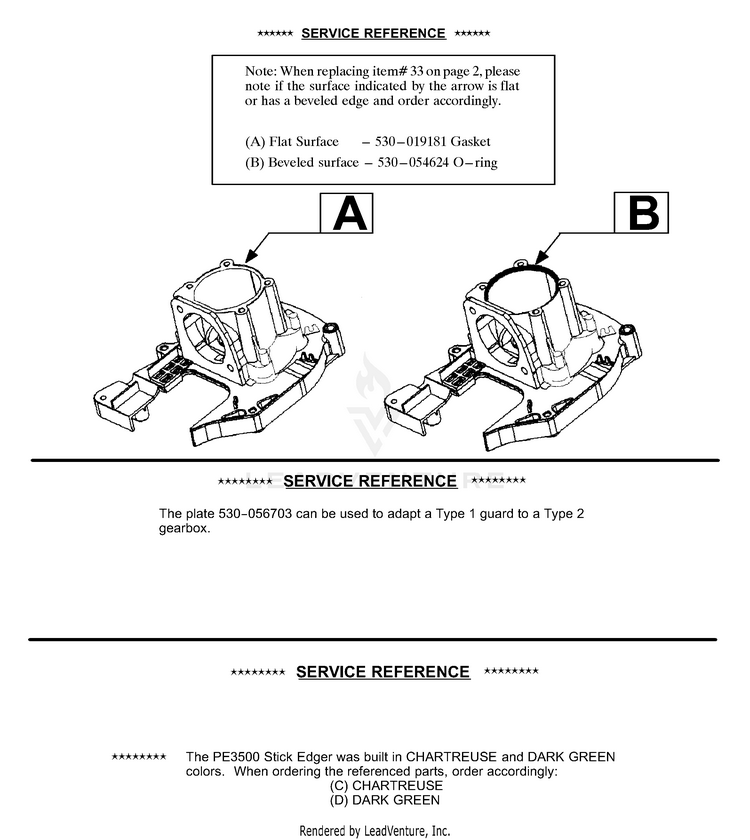

Service Reference

...

No Parts Available for this Schematic

...
...
...
