Poulan GLT770 Gas Trimmer

Model: GLT770 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

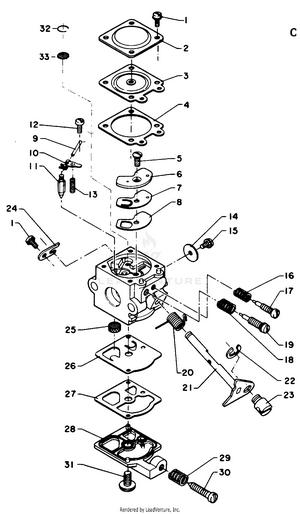

CARBURETOR ASSEMBLY

...
...
1
Screw & lock washer PLN-530035021
...
2
Metering diaphragm cover PLN-530035003
...
3
DIAPHRAGM PLN-503896701
...
4
Metering diaphragm gasket PLN-530035055
...
5
Circuit plate screw PLN-530035084
...
6
Circuit plate PLN-530035056
...
7
Circuit diaphragm PLN-530035057
...
8
Circuit plate gasket PLN-530035058
...
9
Pin PLN-505520125
...
10
Metering Lever PLN-505520127
...
11
Inlet needle valve PLN-530035008
...
12
Metering lever pin screw PLN-530035016
...
13
Metering lever spring PLN-530035086
...
14
Throttle valve PLN-530035082
...
15
Shutter screw PLN-530035015
...
16
I. needle adjust spring PLN-530035023
...
17
Idle needle PLN-530035087
...
18
H.S. needle adjust spring PLN-530035061
...
19
H.S. needle PLN-530035085
...
20
Throttle return spring PLN-530035024
...
21
Throttle shaft PLN-530035079
...
22
Swivel clip PLN-530035067
...
23
Swivel PLN-530035066
...
24
Throttle shaft clip PLN-530035065
...
25
Inlet screen PLN-530035069
...
26
Pump diaphragm PLN-530035083
...
27
Pump gasket PLN-530035009
...
28
Pump cover PLN-530035078
...
29
Idle adjust spring PLN-530035072
...
30
Idle adjust screw PLN-530035073
...
31
Pump cover screw PLN-530035017
...
xx
Carburetor Assembly (inc.1 -31) PLN-530035075
...
32
Ring - Screen Retainer PLN-530035076
...
33
Screen - Check Valve PLN-530035089
...
xx
Kit - Kwik Repair Not Shown. PLN-530035091
...
xx
Kit - Gasket & Diaphragm Kit Not Shown. PLN-530035093

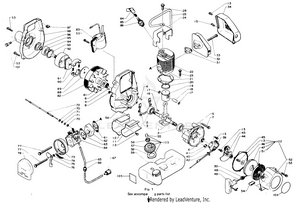

ENGINE ASSEMBLY

...
...
1
Crankshaft assembly PLN-530091833
...
2
Ball bearing 6200 PLN-530091955
...
3
Gasket - crankcase PLN-530091834
...
4
Knock pin PLN-530091447
...
5
Crankcase set PLN-530091835
...
6
Oil seal PLN-530091836
...
7
Screw 5 x 30 w/W, SW PLN-530091905
...
8
Grommet PLN-530091837
...
11
Cushion - fuel tank PLN-530091839
...
12
Bracket PLN-530091841
...
13
Screw 4 x 10 w/W, SW PLN-530091445
...
15
Screw 4 x 14 w/W, SW PLN-530091842
...
16
Woodruff key PLN-530091843
...
17
Circlip - piston pin PLN-530091435
...
18
Piston pin PLN-530091844
...
19
Piston PLN-530091845
...
20
Piston ring PLN-530091846
...
21
Gasket - cylinder base PLN-530091847
...
22
Cylinder PLN-530091848
...
23
Screw 6 x 22 w/W, SW PLN-530091849
...
24
Cylinder cover PLN-530091851
...
25
Guard PLN-530091852
...
28
Screw 5 x 14 w/W, SW PLN-530091939
...
31
Gasket - muffler PLN-530091853
...
32
Muffler PLN-530091854
...
33
Screw 5 x 40 w/W, SW PLN-530091855
...
34
Muffler cover PLN-530091856
...
39
Breaker point set PLN-530091857
...
40
Condenser PLN-530091858
...
41
Oil pad PLN-530091859
...
42
Grommet PLN-530091861
...
43
Ratchet assembly PLN-530091862
...
44
Nut 8 PLN-530091459
...
45
Gasket - starter case PLN-530091863
...
46
Washer PLN-530091538
...
47
Recoil drum PLN-530091865
...
48
Starter rope PLN-530091866
...
49
Starter handle PLN-530091867
...
50
Rope guide PLN-530091546
...
51
Rewind spring PLN-530091868
...
52
Starter case PLN-530091869
...
53
Screw 4 x 20 w/W, SW PLN-530091463
...
54
Cushion - fuel tank PLN-530091871
...
55
Filter - check valve PLN-530091927
...
56
Check valve PLN-530091926
...
57
Cap - fuel tank PLN-530091925
...
58
Gasket - fuel tank cap PLN-530091928
...
59
Fuel tank PLN-530091872
...
61
Gasket PLN-530091873
...
62
Insulator PLN-530091874
...
63
Gasket PLN-530091875
...
64
Carburetor assembly PLN-530035075
...
65
Fuel pipe PLN-530091876
...
66
Grommet - fuel pipe PLN-530091877
...
67
Fuel strainer PLN-530091878
...
70
Nut 6 PLN-530091516
...
71
Washer 6 PLN-530091482
...
72
Throttle cable PLN-530091818
...
73
Case - air cleaner PLN-530091881
...
74
Grommet PLN-530091882
...
75
Washer PLN-530091883
...
76
Choke shutter PLN-530091884
...
77
Screw 5 x 57 w/W, SW PLN-530091885
...
78
Air filter PLN-530091886
...
81
Washer PLN-530091887
...
82
Flywheel PLN-530091888
...
83
Ignition coil PLN-530091889
...
84
Cap - spark plug PLN-530091455
...
85
Coil spring - plug cap PLN-530091456
...
86
BPMR7A NGK SPARK PLUG PLN-503235111
...
88
Side plate PLN-530091891
...
89
Clutch plate PLN-530091892
...
90
Clutch spring PLN-530091893
...
91
Clutch boss PLN-530091894
...
92
Clutch drum PLN-530091895
...
93
Circlip 32 PLN-530091452
...
94
Ball bearing 6201 PLN-530091896
...
95
Circlip 11 PLN-530091897
...
96
Stopper PLN-530091898
...
97
Grommet PLN-530091899
...
98
Fan cover PLN-530091901
...
101
Bolt 5 x 20 w/W, SW PLN-530092028
...
102
Recoil starter assembly, includes 13, 46, 47, 48, 49, 50, 51 & 52 PLN-530091864
...
103
Cap assembly - fuel tank includes 55, 56, 57 & 58 PLN-530091924
...
104
Decal starter housing PLN-530024259
...
105
Decal starting instructions PLN-530024426

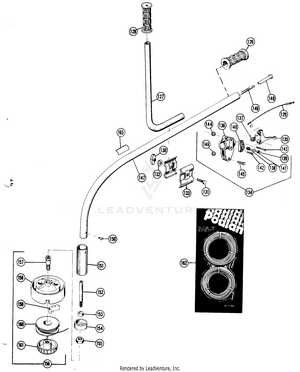

TRIMMER ASSEMBLY

...
...
126
Grip-drive shaft PLN-530091809
...
127
Handle bar w/grip PLN-530092076
...
128
Grip-handle bar PLN-530091402
...
129
Lead wire switch PLN-530091817
...
130
Knob-handle bar clamp PLN-530091339
...
131
Bolt-clamp PLN-530091342
...
132
Washer-clamp PLN-530091341
...
133
Clamp-handle PLN-530091338
...
134
Throttle control - assembly (inc.135-146) PLN-530092075
...
135
Trigger PLN-530091791
...
136
Housing PLN-530091788
...
137
Spring-trigger PLN-530091796
...
138
Spring-switch PLN-530091793
...
139
Buttons PLN-530091794
...
140
Cap PLN-530091795
...
141
Stud PLN-530091805
...
142
Screw-cap PLN-530091731
...
143
Screw-housing clamp PLN-530091798
...
144
Nut-housing clamp PLN-530091799
...
145
Screw-trigger PLN-530091797
...
146
Nut-trigger PLN-530091799
...
147
Drive shaft assy. PLN-530091812
...
148
Upper coupling PLN-530091779
...
149
Flexible drive shaft PLN-530091367
...
150
Screw-bearing housing PLN-530091731
...
151
Bearing housing assy. PLN-530091989
...
152
Arbor shaft PLN-530091787
...
153
Spacer PLN-530091785
...
154
Dust cap PLN-530091786
...
155
Nut PLN-530091822
...
156
Cutting head assembly (inc.157-161) PLN-530091324
...
157
Bolt drive adaptor PLN-530091417
...
158
Hub PLN-530091418
...
159
Line saver PLN-530091419
...
160
Cutting head spool w/line PLN-530091421
...
161
Ball lock PLN-530091422
...
162
Cutting line skin pack PLN-530091728
...
163
Label/decal PLN-530024226
...
...
...
