Poulan BC2400P Gas Trimmer

Model: BC2400P Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

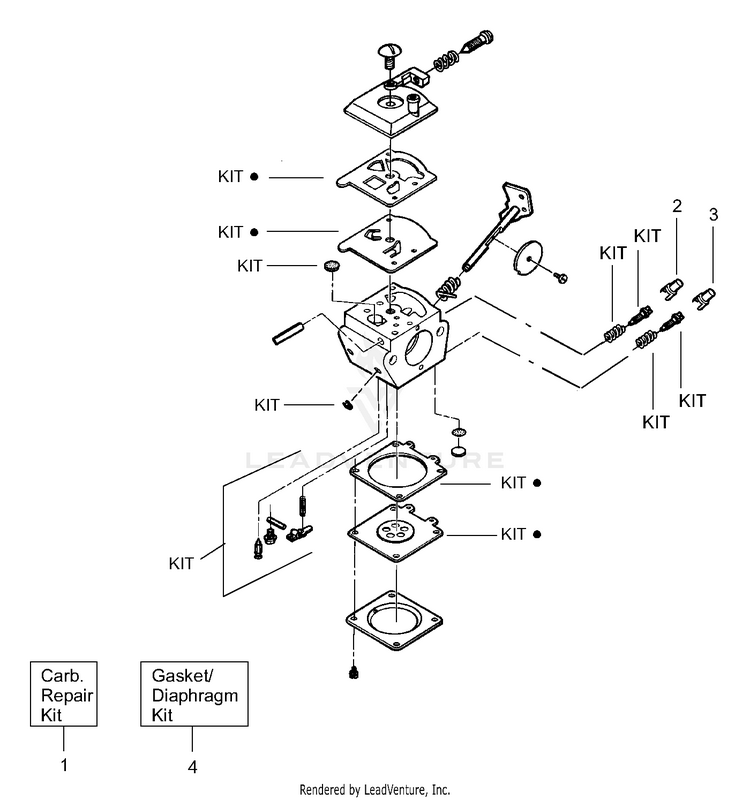

Carburetor Assembly P/N 530069902 WT380

...
...
1
Carburetor Repair Kit (KIT = Indicates Contents) PLN-530069829
...
2
Limiter Cap (High-Red) PLN-530038318
...
3
Limiter Cap (Low-Blue) PLN-530038317
...
4
Gasket/Diaphragm Kit (DOT = Indicates Contents) PLN-530069844

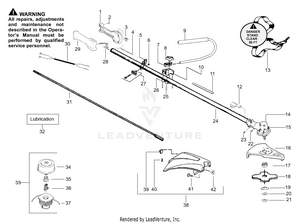

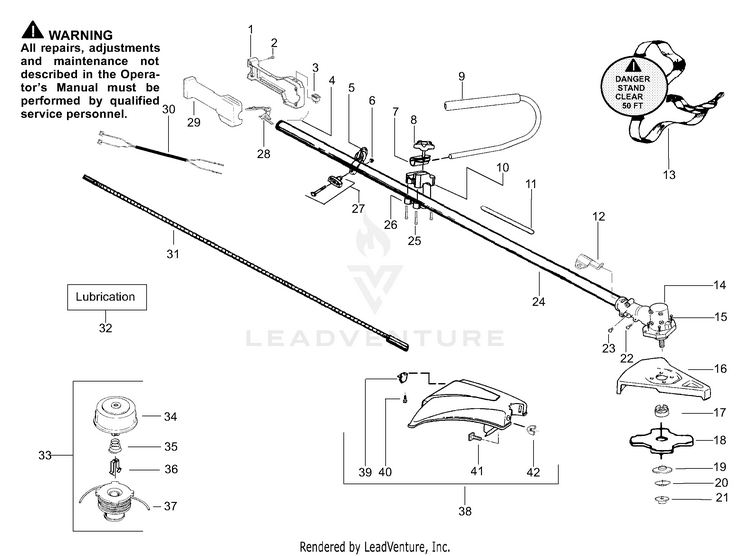

Driveshaft & Cutting Head

...
...
1
Throttle Hsg. Left PLN-530053969
...
2
Screw PLN-530015886
...
3
Kit-Switch PLN-530069572
...
4
Spring-Throttle PLN-530042093
...
5
Assy. Clamp PLN-530094686
...
6
Locknut PLN-530015768
...
7
KIT TUBE CLAMP J-BAR UPGRADE PLN-530071868
...
8
KIT TUBE CLAMP J-BAR UPGRADE PLN-530071868
...
9
Assy.-Handlebar (incl. grip,cap,decal) PLN-530071394
...
10
KIT TUBE CLAMP J-BAR UPGRADE PLN-530071868
...
11
Decal-Shaft Warn. PLN-530055316
...
12
Bracket-Shield PLN-530095812
...
13
Shoulder Strap PLN-530094417
...
14
Kit-Gearbox PLN-530071377
...
15
Screw PLN-530016312
...
16
Kit-Metal Shield PLN-530071383
...
17
Dust Cup PLN-530095815
...
18
Accy.-Blade PLN-952701611
...
19
Washer PLN-530095816
...
20
Washer-Belleville PLN-530016240
...
21
Nut-Flange PLN-530015793
...
22
Screw PLN-530016309
...
23
Screw PLN-530016301
...
24
Assy.-Driveshaft PLN-530071339
...
25
Screw PLN-530015940
...
26
Clamp-Tube PLN-530095899
...
27
HANDLE KIT PLN-530069347
...
28
Lever--Throttle PLN-530056334
...
29
Hsg.-Right Throttle PLN-530053968
...
30
Assy-Throttle Wire PLN-530047307
...
31
Shaft-Flex Drive PLN-530094585
...
32
Shaft Lubrication PLN-952030139
...
33
Accy--Cutting Head (incl. 34-37) PLN-952711550
...
34
TNG VI HUB ASSY LH PLN-530095772
...
35
Spring-Return PLN-530053241
...
36
Retainer-Spool PLN-530401957
...
37
Accy.-Spool TNG VI PLN-952701707
...
38
Kit-Shield Assy. (incl. 39-42) PLN-530069779
...
39
Limiter-Line PLN-530052285
...
40
Screw PLN-530015805
...
41
Bolt PLN-530015820
...
42
Nut PLN-530091373
...
xx
Operator Manual Not Shown PLN-530088894
...
xx
Decal Blade Direction (Not a serviceable part) Not Shown PLN-530049211

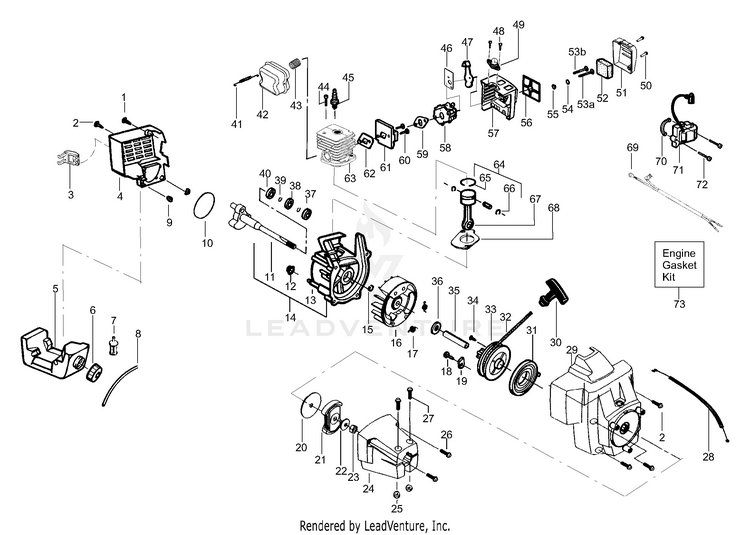

Internal Power

...
...
1
Screw PLN-530015934
...
2
SCREW PLN-530016386
...
3
Guard-Muffler New part number for this IPL PLN-530054536
...
4
Shroud PLN-530053320
...
5
Fuel Tank Ass'y. PLN-530049413
...
6
Fuel Cap Ass'y. PLN-530014347
...
7
Fuel Pickup Ass'y. PLN-530095646
...
8
Kit - Fuel Line PLN-530069599
...
9
Isolator-Shroud PLN-530036793
...
10
O-Ring-C'case/Shroud PLN-530071253
...
11
C'case & C'shaft Ass'y. PLN-530071625
...
12
Support-Carb. adapter PLN-530036792
...
13
Assy-Crankcase PLN-530071627
...
14
C'case & C'shaft Ass'y. (Incl. 11,13,15) PLN-530071625
...
15
Retainer (C'shaft) PLN-530015941
...
16
FLYWHEEL ASSY (Incl 17) PLN-545221701
...
17
Spring - Starter Dog PLN-530023817
...
18
Screw PLN-530015775
...
19
Retainer PLN-530027523
...
20
Washer-Clutch PLN-530015611
...
21
Clutch Ass'y. PLN-530069491
...
22
Washer-Flat PLN-530015828
...
23
Nut PLN-530626605
...
24
Clutch Hsg. Ass'y. PLN-530069997
...
25
Locknut PLN-530015768
...
26
Screw PLN-530015886
...
27
Screw PLN-530015767
...
28
Throttle Cable Ass'y. PLN-530037415
...
29
Fan Housing PLN-530071393
...
30
Starter Handle PLN-530027569
...
31
STARTER SPRING PLN-545008010
...
32
Rope Kit PLN-530069232
...
33
STARTER PULLEY KIT PLN-530071786
...
34
Screw PLN-530016080
...
35
Spacer-Flywheel PLN-530037705
...
36
Washer PLN-530015149
...
37
Outer Bearing PLN-530032124
...
38
C'case Seal PLN-530019179
...
39
Retaining Ring-C'case PLN-530015945
...
40
Inner Bearing PLN-530032125
...
41
Muffler Spring PLN-530042088
...
42
Muffler Kit (Incl. 41) PLN-530071390
...
43
Screen-Spark Arrestor PLN-530071391
...
44
Screw PLN-530015953
...
45
Spark Plug PLN-503235112
...
46
Choke Plate PLN-530037326
...
47
Choke Shutter PLN-530038102
...
48
Screw PLN-530015780
...
49
Bulb Ass'y. PLN-530038874
...
50
Screw PLN-530015957
...
51
Air Filter Cover PLN-530037292
...
52
Air Filter Foam PLN-530037331
...
53A
Carb Screw PLN-530015887
...
53B
Carb Screw PLN-530015849
...
54
Choke Spacer PLN-530015852
...
55
Washer PLN-530015254
...
56
Plate-Filter Support PLN-530037413
...
57
Air Box PLN-530053323
...
58
Carburetor Assembly - WT-639 (Incls. Limiter Caps) PLN-530071639
...
59
Gasket-Carburetor PLN-530071253
...
60
Screw PLN-530016014
...
61
Carb. Adaptor Kit PLN-530071250
...
62
Gasket-Cyl/Carb Adpt PLN-530071253
...
63
Cylinder PLN-530012416
...
64
Piston Kit (Incl. 65,66 & Pin) PLN-530069987
...
65
Piston Ring PLN-530053565
...
66
Piston Pin Retainer PLN-530015162
...
67
Connecting Rod Ass'y. PLN-530069615
...
68
Gasket-Cylinder PLN-530071253
...
69
Ass'y.-Switch Wire PLN-530047278
...
70
Spacer-Ign. Module PLN-530036145
...
71
Ignition Module PLN-530039163
...
72
Screw PLN-530015954
...
73
Engine Gasket Kit (Incl. 10,59,62, & 68) PLN-530071253
...
...
...
