Poulan 961120115 - 96112011503 (2013-11) Walk Behind Mower

Model: 961120115 - 96112011503 (2013-11)

Save
 Part Not Listed?Part Not Listed?
product name

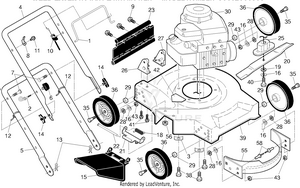

FRAME ENGINE

...
...
1
BAIL.CONT.D.STRAIGHT.PUSH.BLK PLN-532196025
...
2
GUIDE.ROPE.BLK.ZINC.CHROM PLN-581902101
...
3
WASHER.ENGINE.BZP PLN-532125078
...
4
HANDLE.UPPER.FGD/PUSH.BLACK PLN-532196026
...
5
HANDLE.LOWR.DLX.20RD.CLIP.BLAC PLN-532151590
...
6
T-KNOB.NEW ROPE GUIDE PLN-581912601
...
7
BOLT, HANDLE 5/16-18X1.75 PLN-532191574
...
8
BRACKET.UPSTOP.RT PLN-532430034
...
9
SCREW.HEX.WASH.HD.TAPPING PLN-532189241
...
10
CABLE.MZR.RATO.22"LOW. PLN-532440934
...
11
SCREW PLN-532178848
...
12
WIRE TIE PLN-532007192
...
13
HAIRPIN COTTER PLN-532051793
...
14
KNOB, DEFLECTOR PLN-532191938
...
15
GUARD.DISCHARGE.ECON.BLK.US/CE PLN-532432040
...
16
SLW 3/8 STD PLN-539990118
...
18
SPRING.SIDE.DISCHARGE PLN-532411832
...
19
WASHER,HARDEN PLN-532851074
...
20
20" Blade (AYP part number) PLN-532145106
...
21
HINGE DEFLECTOR PLN-532088602
...
22
HINGE ROD PLN-532150215
...
23
PLN-532189239
...
25
ADAPTOR.BLADE.7/8 PLN-581547901
...
26
BRACKET.ASM.HDL.RT.W/HOLE.BLAC RH PLN-532170345
...
27
ASM, HANDLE BRKT LH LH PLN-532170346
...
28
WASHER PLN-819132012
...
29
SPACER.WHEEL.390.X1.0X.380.RTA PLN-532136624
...
30
B S 9L602-0009-F1 FOR SERVICE PARTS 1-800-233-3723 PLN-000000000
...
35
BOLT.SHLDR.3/8-16 PLN-532179613
...
36
WHEEL.7X1.5.DMD.GS.3SPK.BLACK PLN-532438294
...
38
BOLT 3/8-16X1-1/8 PLN-532150406
...
39
KIT.HSG.20SD.PUSH.MS665.TRI PLN-583521901
...
40
SCREW, HEX HD 3/8-24 X 1-3/8 PLN-532851084
...
41
BOLT, 5/16-18 X 1 3/4 PLN-532171877
...
42
DECAL.CUTFINGER.CE.02 PLN-581579101
...
43
NUT.HEX.3/8-16UNC PLN-873220600
...
55
PLN-532700839
...
56
NUT 1/4-20 NYLOC PLN-539976978
...
58
RIVET BLIND PLN-532128415
...
xx
DECAL, WARNING (NOT SHOWN) PLN-532404764
...
...
...
