product name

Poulan 8510 Gas Saw

Model: 8510 Gas Saw

Save
 Part Not Listed?Part Not Listed?
product name

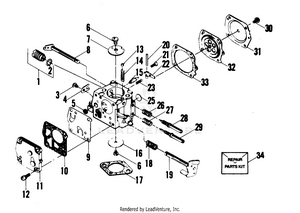

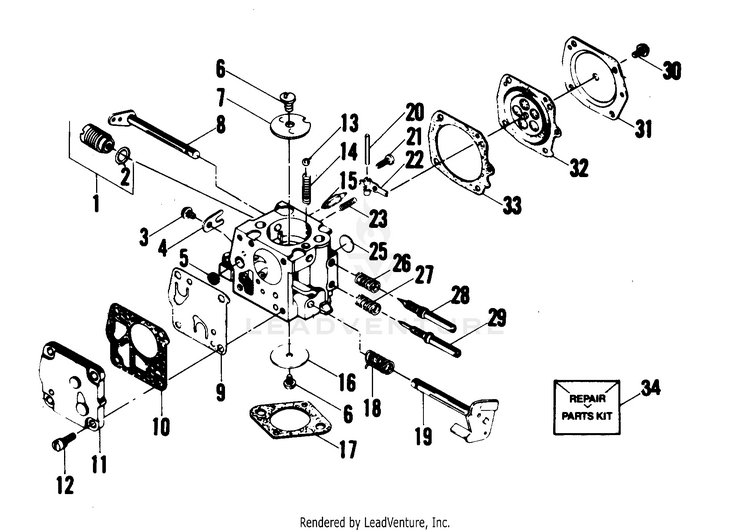

CARBURETOR BREAKDOWN (# 34111)

...
...
1
Governor Valve Assembly (Inc. #2) PLN-530034112
...
2
Gasket - Governor Valve PLN-530034024
...
3
Screw - Throttle Shaft Clip Retainer PLN-530003784
...
4
Clip - Throttle Shaft PLN-530003783
...
5
Inlet Screen PLN-530003780
...
6
Shutter Screw & Lockwasher PLN-530003784
...
7
Choke Shutter PLN-530034107
...
8
Choke Shaft & Lever PLN-530034106
...
9
Fuel Pump Diaphragm PLN-530003771
...
10
Fuel Pump Gasket PLN-530003772
...
11
Fuel Pump Cover PLN-530003773
...
12
Screw and Lockwasher - Fuel Pump Cover PLN-530003774
...
13
Choke Friction Ball PLN-530003765
...
14
Choke Friction Spring PLN-530003424
...
15
Needle - Inlet PLN-530003779
...
16
Throttle Shutter PLN-530003416
...
17
Gasket PLN-530019082
...
18
Spring - Throttle Shaft Return PLN-530034103
...
19
Throttle Shaft & Lever PLN-530034102
...
20
Pin - Inlet Pinion PLN-530003777
...
21
Screw - Inlet Pinion Pin Retainer PLN-530003778
...
22
Lever - Inlet Control PLN-530003776
...
23
Spring - Inlet Tension PLN-530003727
...
25
Plug - Body Channel Welch (Large) PLN-530003764
...
26
Spring - High Speed Mixture Screw (Blue) PLN-530034109
...
27
Spring - Idle Mixture Screw (Yellow) PLN-530034108
...
28
HIGH SPEED SCREW PLN-530034101
...
xx
DRIVE WHEEL PLN-535034101
...
29
Screw - Idle Mixture PLN-530034099
...
30
Screw & Lockwasher - Diaphragm PLN-530003717
...
31
Cover - Diaphragm (Dana part number) PLN-003770
...
32
Diaphragm PLN-530003769
...
33
Gasket - Diaphragm PLN-530003768
...
34
Repair Parts Kit (Inc.5,9,10,15,17,22,25,32, 33) PLN-530034023

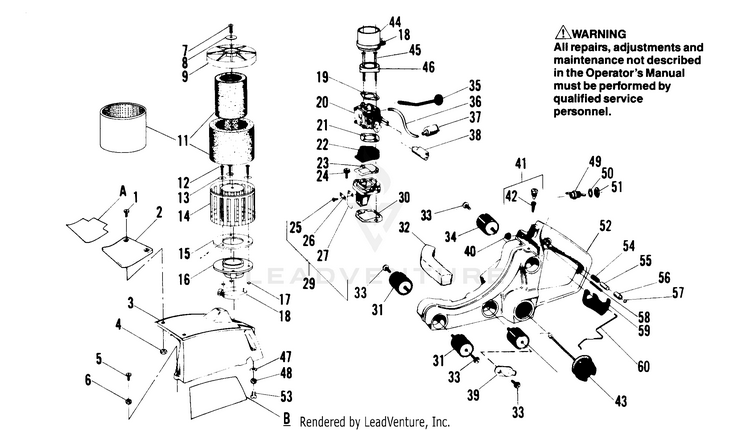

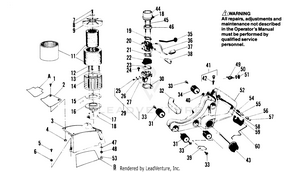

CARBURETOR, FUEL TANK, & HANDLE ASSEMBLIES

...
...
1
Screw - 10 - 24 x 1/2 - Heat Shield PLN-530015406
...
2
Shield - Heat PLN-530025914
...
3
Cover - Cylinder PLN-530012120
...
4
Nut - 10 - 24 - Heat Shield PLN-530001543
...
5
Screw - Cylinder Cover - 10 x 24 PLN-530015329
...
6
Washer -#10 Heavy Lock - Cylinder Cover PLN-530015328
...
7
Screw PLN-530015239
...
8
Washer - Air Filter Cap PLN-530015622
...
9
Cap - Air Filter PLN-530062164
...
11
Air Filter Assembly PLN-530062163
...
12
Screw -#10 - 24 x 3/4 - Air Filter Case PLN-530015651
...
13
Washer - Air Filter Case PLN-530001708
...
14
Air Filter Case (Incl. #9 & 11) PLN-530062168
...
15
Gasket - Air Filter Case/Adaptor PLN-530019138
...
16
Adaptor - Air Filter Case PLN-530062143
...
17
Nut PLN-530403094
...
18
Hose Clamp PLN-530062160
...
19
Gasket - Carb./Air Filter Adaptor PLN-530062161
...
20
Carburetor Ass'y. PLN-530034111
...
21
Gasket - Carburetor Included in Gasket Kit PLN-530019082
...
22
Adaptor - Carb. Reed Block PLN-530023654
...
23
Gasket - Carb. Adaptor/Reed Block Included in Gasket Kit PLN-530019083
...
24
Screw - 10 - 24 x 3/4 PLN-530015038
...
25
Screw - 4 - 40 x 1/8 Pan Hd. PLN-530001713
...
26
Stop - Reed PLN-530002580
...
27
Reed PLN-530023643
...
29
Reed Valve Ass'y. (Incl. #25, 26, 27 & 28) PLN-530010752
...
30
Gasket - Reed Valve Included in Gasket Kit PLN-530019086
...
31
Vibration Isolator - Front (Hour Glass Shape) PLN-530024224
...
32
Seal - Saw Dust Included in Gasket Kit PLN-530023692
...
33
Screw PLN-530016141
...
34
Vibration Isolator - Middle & Rear (Cylinder Shape) PLN-530024637
...
35
Choke - Rod PLN-530024762
...
36
Line - Fuel Pick-up PLN-530021022
...
37
Fuel Pick-up Ass'y. PLN-530034114
...
38
Grommet - Carb. Screws PLN-530024003
...
39
Bumper - Center Isolator Mount PLN-530024322
...
40
Grommet - Choke Rod Included in Gasket Kit PLN-530023665
...
41
Vent Ass'y. - Fuel Tank (Incl. #42) PLN-530010528
...
42
Check Valve - Fuel Tank Vent PLN-530026119
...
43
Fuel Cap Ass'y. PLN-530010331
...
44
Hose - Rubber PLN-530062159
...
45
Screw - Carburetor PLN-530015627
...
46
Adaptor- Carb./Air Filter PLN-530062144
...
47
Washer - Cylinder Cover PLN-530092062
...
48
Lockwasher - 1/4 Cylinder Cover PLN-530001642
...
49
Switch - Ignition PLN-530023732
...
50
Lockwasher - Switch PLN-530015214
...
51
Switch- Plate and Nut PLN-530002582
...
52
Fuel Tank & Handle Ass'y. (Inc. 55-58) PLN-530010749
...
53
Screw-Cylinder Cover/Adaptor PLN-530015117
...
54
Spring - Throttle Lock Button PLN-530024772
...
55
Pin - Throttle Lock PLN-530024771
...
56
Sleeve - Throttle Lock PLN-530024773
...
57
E-Ring Throttle Lock PLN-530001672
...
58
Pin - Trigger Shaft PLN-530015008
...
59
Trigger Throttle PLN-530023658
...
60
Rod - Throttle PLN-530026351
...
A
Decal - Instructions PLN-530026755
...
B
Decal - Warning PLN-530025322
...
xx
Operator's Manual Not Shown. PLN-530066512

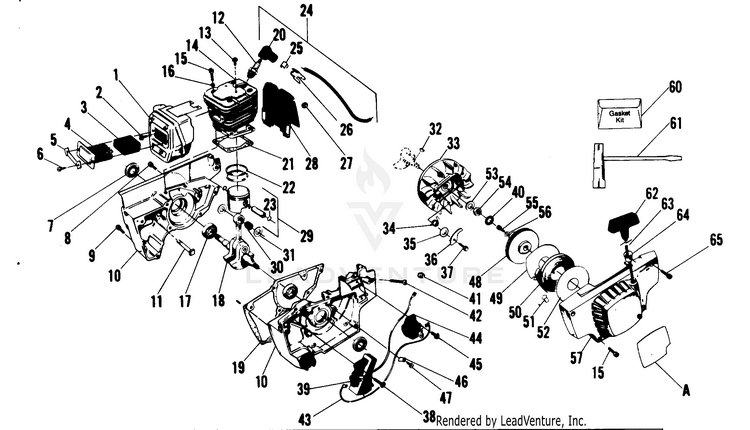

CRANKCASE, FLYWHEEL, PISTON

...
...
1
Body Muffler PLN-530022274
...
2
Screw - Muffler (12 - 24 x 5/8) PLN-530015298
...
3
Screen Spark Arrestor PLN-530023674
...
4
Diffuser - Muffler PLN-530022131
...
5
Retainer - Diffuser Mounting Screw PLN-530024839
...
6
Screw - 10 - 32 x 1/2 PLN-530015433
...
7
Seal - Crankshaft PLN-530019075
...
8
Screw - Crankcase (#10 - 24 x 3/4 Socket Head) PLN-530015203
...
9
Screw - 8 x 1/2 Socket Head PLN-530015258
...
10
Crankcase Ass'y. (Incl. 10 & 11) PLN-530010833
...
11
Stud - Bar Mounting PLN-530015535
...
12
Spark Plug (CJ - 4) PLN-530030034
...
13
Screw - Muffler Body Bracket Hex Hd. 10 - 24 x 7/16 PLN-530015306
...
14
Cylinder PLN-530012092
...
15
Screw - 1/4 - 20 x 1 Socket Hd. PLN-530001711
...
16
Lockwasher - Cylinder PLN-530001677
...
17
Bearing - Crankshaft PLN-530032034
...
18
Crankshaft & Connecting Rod PLN-530026250
...
19
Gasket Crankcase PLN-530019085
...
20
Boot - Spark Plug PLN-530039097
...
21
Gasket - Cylinder PLN-530019081
...
22
Piston Rings PLN-530024058
...
23
Retainer - Piston Pin PLN-530015207
...
24
High Tension Lead Ass'y. (Incl. 20 & 25) PLN-530039065
...
25
Spark Plug Boot PLN-507475326
...
26
Clip - High Tension Lead PLN-530015195
...
27
Grommet - High Tension Lead PLN-530023816
...
28
Air Baffle Ass'y. PLN-530022128
...
29
Piston Ass'y. PLN-530010531
...
30
Bearing - Piston Rod PLN-530032031
...
31
Washer - Thrust PLN-530015208
...
32
Key - Flywheel PLN-530002595
...
33
Flywheel PLN-530039066
...
34
Spring - Starter Dog PLN-530042062
...
35
Washer - Starter Dog PLN-530001718
...
36
Dog - Starter PLN-530042064
...
37
Stud - Starter Dog PLN-530004261
...
38
Screw - 10 - 24 x 7/8 PLN-530015198
...
39
Module - Ignition (Incl. 41 & 43) PLN-530039108
...
40
Seal - Foam - Starter Pulley PLN-530026727
...
41
Grommet - Lead Wire PLN-530039069
...
42
Screw - Idle Speed PLN-530015586
...
43
Lead Wire - Module to Transformer PLN-530039064
...
44
Transformer Ass'y. (Incl. 24) PLN-530039068
...
45
Screw - 10 - 24 x 3/4 Hex Washer Hd. PLN-530015038
...
46
Clamp - Lead Wire PLN-530023661
...
47
Screw - 8 - 32 x 5/16 Tapping PLN-530001726
...
48
Pulley - Starter PLN-530011255
...
49
Disc. - Starter (Over Spring) PLN-530042041
...
50
Spring - Starter Rewind PLN-530042049
...
51
Pin - Spring Anchor PLN-530015323
...
52
Disc. - Starter (Under Spring) PLN-530042039
...
53
Washer - 3/8 PLN-530001626
...
54
Locknut - Flywheel - 3/4 - 24 PLN-530001722
...
55
Screw - 1/4 - 20 x 1/2 Socket Hd. PLN-530015092
...
56
Washer - Starter Pulley PLN-530015209
...
57
Fan Housing Ass'y. PLN-530011815
...
60
Gasket Repair Kit (Inc. 19,21,27,40) PLN-530069180
...
61
Scrench PLN-530031107
...
62
Handle Starter PLN-530042056
...
63
Rope Kit PLN-530069234
...
64
Bushing - Rope PLN-530002820
...
65
Screw - 1/4 - 20 x 1 - 1/2 1/8 Socket Hd. PLN-530015196
...
A
Decal - Fan Housing PLN-530026754

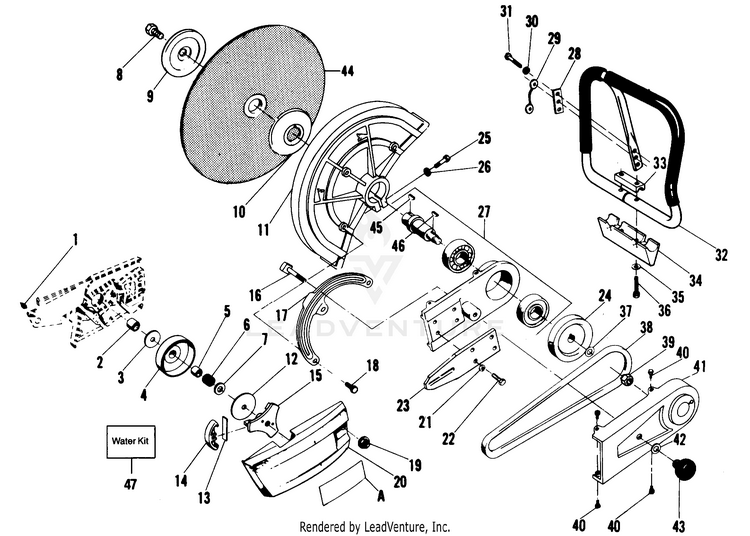

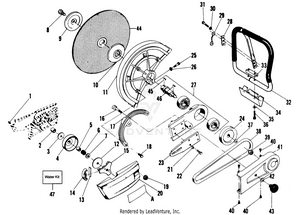

DRUM & PULLEY, HANDLEBAR, & SPINDLE ASSEMBLIES

...
...
1
Bumper - Bar Clamp PLN-530023663
...
2
Spacer PLN-530024059
...
3
Washer - Sprocket Shroud PLN-530015574
...
4
Drum & Pulley Ass'y. PLN-530048082
...
5
Inner Race - Clutch Drum PLN-530032085
...
6
Bearing - Clutch PLN-530032084
...
7
Washer - Thrust PLN-530015575
...
8
Bolt - Blade Shaft Lock - 1/2 - 20 x 1 PLN-530015617
...
9
Collar - Outer PLN-530062156
...
10
Collar - Inner PLN-530062155
...
11
Blade Guard PLN-530062152
...
12
Washer - Clutch Shoe PLN-530015577
...
13
Spring - Clutch Shoe PLN-530023675
...
14
Shoe - Clutch PLN-530023469
...
15
Drive Plate - Clutch PLN-530022281
...
16
Bolt - 5/16 - 18 x 2 - Blade Guard PLN-530015616
...
17
Adjusting Bracket PLN-530062170
...
18
Bolt - 1/4 - 20 x 5/8 PLN-530015117
...
19
Nut - Bar Mounting (Incl. Washer) PLN-530015537
...
20
Bar - Clamp PLN-530011917
...
21
Lockwasher - 1/4 PLN-530001642
...
22
Screw - Arm Bar - 1/4 x 20 PLN-530015459
...
23
Arm Bar PLN-530062153
...
24
Pulley - Blade Shaft PLN-530062150
...
25
Bolt - Blade Guard - 5/16-18 x 1-1/2 PLN-530015618
...
26
Lockwasher - 5/16 PLN-530092322
...
27
Spindle Arm Assy (Individual components - unavailable separately does not incl. 45-46) PLN-530062146
...
28
Handlebar Brace PLN-530025241
...
29
Lead - Ground Wire PLN-530023682
...
30
Lockwasher - 1/4 PLN-530001677
...
31
Screw - 1/4 - 20 x 3/4 - Hex Hd. PLN-530015459
...
32
Handlebar Ass'y. (Wraparound) PLN-530022265
...
33
Adaptor - Handlebar PLN-530012109
...
34
Foot Support PLN-530012124
...
35
Washer - Conical PLN-530015159
...
36
Screw - Socket Head PLN-530015471
...
37
Washer - Blade Shaft PLN-530015620
...
38
V - Belt PLN-952062142
...
39
Locknut - 1/2 - 20 PLN-530015619
...
40
Screw PLN-530015239
...
41
Belt Guard PLN-530062169
...
42
Washer - Ramp Conical PLN-530015127
...
43
Knob PLN-530062145
...
44
Blade 14" Masonry Cutting (Not furnished w/unit) PLN-952062171
...
44
Blade 14" Metal Cutting (Not furnished w/unit) PLN-952062007
...
45
Key - Collar-Inner PLN-530062157
...
46
Key - Collar-Inner Pulley PLN-530062158
...
47
Water Kit PLN-952069212
...
A
Decal - Bar Clamp PLN-530026753
...
xx
Carton(Not a serviceable part) Not Shown. PLN-530060495
...
...
...
