Poulan 2300AV Gas Saw

Model: 2300AV Gas Saw

Save
 Part Not Listed?Part Not Listed?
product name

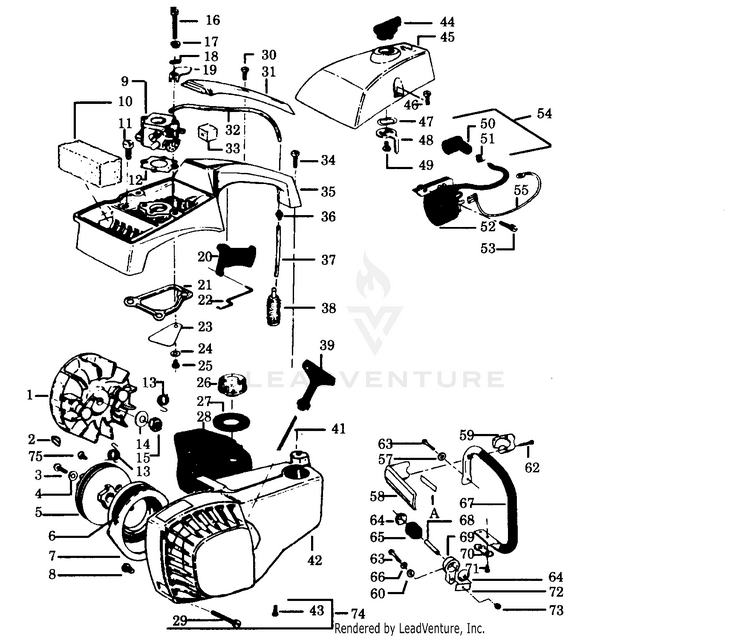

HANDLES & HOUSING

...
...
1
FlywheelAss'y (Inc. #13) PLN-530047198
...
2
Flywheel Key PLN-530015126
...
3
Screw PLN-530016141
...
4
Washer PLN-530015123
...
5
StarterPulley PLN-530069288
...
6
SPRING-STARTER PLN-545008007
...
7
Air Intake Baffle PLN-530025487
...
8
Screw PLN-530001726
...
9
Carburetor Assembly PLN-530069772
...
10
Air Filter PLN-530023791
...
11
Screw PLN-530015242
...
12
Gasket PLN-530019045
...
13
Starter Dog Spring PLN-530023817
...
14
Washer PLN-530015127
...
15
Nut PLN-530626605
...
16
Screw PLN-530015245
...
17
Spacer PLN-530023865
...
18
Wave Washer PLN-530015254
...
19
Choke Shutter PLN-530023805
...
20
Throttle Trigger PLN-530029826
...
21
Gasket PLN-530019252
...
22
Throttle Wire PLN-530025685
...
23
Reed Valve PLN-530023366
...
24
Washer PLN-530023367
...
25
SCREW 6-19X.437 PLN-545227101
...
26
Fuel Cap Ass'y (Incl O-Ring) PLN-530014347
...
27
Seal PLN-530019093
...
28
Fuel Tank Ass'y. (Inc. 26,27,37,38) PLN-530010775
...
30
Screw PLN-530015247
...
31
Handle Cover PLN-530024967
...
32
Kit-Fuel Line PLN-530069216
...
33
Throttle Wire Boot PLN-530023373
...
34
Screw PLN-530015239
...
35
Handle & Carb Hsg PLN-530069848
...
36
Fuel Line Fitting PLN-530023877
...
37
Line Kit (Bulk 8133) PLN-530069216
...
38
Assy-Fuel Pickup PLN-530095646
...
39
Handle-Starter PLN-530056402
...
41
Rope Kit PLN-630069232
...
42
Fan Hsg.-See Service Ref. 5 PLN-530069602
...
43
Screw PLN-530015650
...
44
Choke Knob PLN-530023807
...
45
Kit-Carb. Cover PLN-530071304
...
46
Screw PLN-530015168
...
47
Washer PLN-530015147
...
48
Choke Lever PLN-530023806
...
49
Screw PLN-530015407
...
50
Spark Plug Boot PLN-530003934
...
51
Spark Plug Boot PLN-507475326
...
52
Ignition Module (Incl. #54&55) PLN-530069202
...
53
Screw PLN-530015816
...
54
Spark Plug Lead (Incl. #50&51) PLN-530039082
...
55
Switch- Lead -See Service Ref. 2. PLN-530039116
...
57
Washer PLN-530015151
...
58
Handguard PLN-530024091
...
59
Handguard Cap PLN-530024049
...
60
Washer PLN-530015209
...
62
Screw PLN-530015509
...
63
Bolt PLN-530015505
...
64
Isolator Cup-See Service Ref. 1 PLN-530025567
...
65
Isolator PLN-530025566
...
66
Lockwasher PLN-530001642
...
67
Handlebar PLN-530022314
...
68
Spacer PLN-530025565
...
69
Bracket Isolator PLN-530026659
...
70
Retainer PLN-530025569
...
71
Screw PLN-530015507
...
72
Cork Pad PLN-530025568
...
73
Locknut PLN-530015515
...
74
Fan Hsg. Screws Inc. 29,43, #9 of Power Unit PLN-530069286
...
75
Screw PLN-530016080
...
76
Grip PLN-530027847
...
A
Handguard Decal PLN-530026849

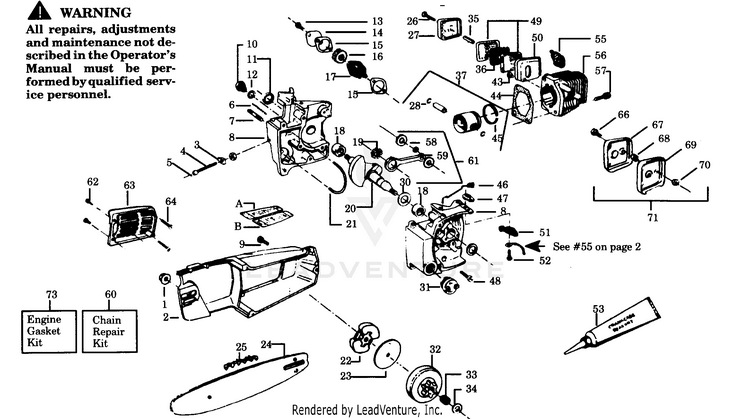

POWER UNIT

...
...
1
BAR NUT PLN-530015251
...
2
Bar Clamp PLN-530029476
...
3
Lock Nut PLN-530015135
...
4
BAR ADJUST PIN PLN-530023492
...
5
Screw PLN-530016115
...
7
Bar Mounting Stud PLN-530015719
...
8
Crankcase Ass'y (Incl. #3-7,10,11 & 18) PLN-530014742
...
9
Screw PLN-530015623
...
10
Check Valve Kit (Incl. #12) PLN-530069142
...
11
Crankshaft Seal PLN-530019059
...
12
Gasket PLN-530019089
...
13
Screw Included in Carburetor Gasket(Diaphragm Kit PLN-530015176
...
14
Cover Included in Carburetor Gasket(Diaphragm Kit PLN-530023802
...
15
Gasket PLN-530019091
...
16
Oil Filter PLN-530023801
...
17
Metering Body Ass'y. Included in Carburetor Gasket(Diaphragm Kit PLN-530010195
...
18
Bearing PLN-530032029
...
19
Roller Bearing (Incl. 12 bear ings) PLN-530032065
...
20
Crankshaft PLN-530022172
...
21
Kit-Fuel Line PLN-530069216
...
23
Clutch Washer Kit PLN-530069197
...
24
PLN BAR 12" SN.050 3/8A041 PLN-952044366
...
24
BAR 16" .050 3/8 .041 56DL PLN-952044370
...
25
12"(P101S-45) PLN-952-051208
...
25
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
26
Screw PLN-530015169
...
27
Muffler Cover PLN-530023795
...
28
Retainer PLN-530023843
...
30
Thrust Washer PLN-530023887
...
31
T1 & T2 PLN-530010221
...
31
T3 PLN-530010444
...
32
Clutch Drum PLN-530069166
...
33
Clutch Bearing (Use Only With Clutch Drum Bearing Kit #69166) PLN-530032079
...
34
Clutch Spacer PLN-530023519
...
35
Spacer PLN-530023535
...
36
Spark Arrestor Screen PLN-530023796
...
37
2300 PLN-530069553
...
37
2350CVA PLN-530069552
...
43
Screw Included in Carburetor Gasket(Diaphragm Kit PLN-530001666
...
44
Engine Gasket Kit PLN-530069401
...
45
Before Date Code/Serial #A1820001 PLN-530025467
...
45
Date Code/Serial #A1820001 and after PLN-530037603
...
45
2350CVA PLN-530027482
...
46
Switch 2300AV (Type I & 2) and 2300CVA (earlier) PLN-530023788
...
46
2300CVA (Type I & 2) & 2350CVA PLN-530024236
...
47
Ramp Switch PLN-530023786
...
48
Screw PLN-530015986
...
49
Muffler Baffle PLN-530023797
...
50
Muffler Body PLN-530023794
...
51
Switch Clamp PLN-530023787
...
52
Screw PLN-530015235
...
53
Crankcase Sealant PLN-530030054
...
55
BPMR7A NGK SPARK PLUG PLN-503235111
...
56
2300 PLN-530012065
...
56
2350CVA PLN-530012172
...
57
Screw PLN-530015239
...
58
Washer-Rod PLN-530015486
...
59
Bearing Rod (Top-Incl. 22 bearings) PLN-530032075
...
60
Chain Repair Kit PLN-530-052073
...
61
Connecting Rod Ass'y. Kit (Incl. #58&59) PLN-530010474
...
62
Screw T 2 PLN-530015474
...
63
KIT CARBURETOR ASSY PLN-545081825
...
64
Screw-Type2 PLN-530015463
...
66
Screw-Type I and earlier PLN-530015476
...
67
Heat Shield-Type I & earlier PLN-530024201
...
68
Spacer Type I & Earlier PLN-530015331
...
69
Muffler Cover Type I & Earlier PLN-530024202
...
70
Lock Nut-Type I & Earlier PLN-530015332
...
71
Heat Shield Kit-Type 1 & earlier Only PLN-530069034
...
73
Engine Gasket Kit Optional PLN-530069401
...
A
Inst. Decal (Right Hand) PLN-530026918
...
B
2300AV and 2300CVA-Type 1 PLN-530026221
...
B
2300CVA-Type 2 PLN-530025979
...
xx
Operator's Manual Not Shown. PLN-530067580
...
xx
SCRENCH Not Shown. PLN-545006011
...
...
...
