MTD Pro OEM Attachments Pruner Attachment 590-536-195

Model: Pruner 590-536-195

Save
 Part Not Listed?Part Not Listed?
product name

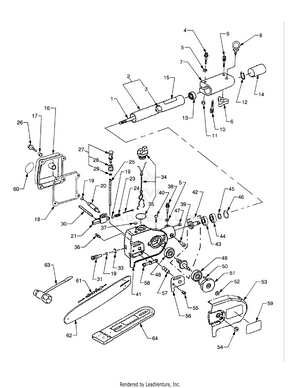

Pruner Attachment

...
...
1
Shaft, Drive MTD-IM-720113630
...
2
Pipe Complete MTD-IM-720124680
...
3
Metal MTD-IM-720133360
...
4
Bolt MTD-IM-010700525
...
5
Washer, Spring MTD-IM-027100005
...
6
Nut, Knob MTD-IM-720973756
...
7
Case, Joint MTD-IM-720383180
...
8
Pin, Lock MTD-IM-720973757
...
9
Bolt MTD-IM-010100635
...
10
Bolt MTD-IM-010700510
...
11
Nut MTD-IM-020100005
...
12
Ring, Snap MTD-IM-036100010
...
13
Bearing, Ball MTD-IM-040126900
...
14
Collar MTD-IM-720723330
...
15
Caution Plate MTD-IM-720953090
...
16
Cover, Oil Tank MTD-IM-720343950
...
17
Collar MTD-IM-720723340
...
18
Gasket MTD-IM-720313070
...
19
O-Ring MTD-IM-052100050
...
20
Bolt MTD-IM-720973758
...
21
PUMP-LUBRICATING O MTD-IM-140103011
...
23
Spring MTD-IM-720423160
...
24
Piston, Oil Pump MTD-IM-728250010
...
25
Hose MTD-IM-068209174
...
26
Screw MTD-IM-015150512
...
27
Filter Ass'y., Oil MTD-IM-140503010
...
28
OIL FILTER MTD-IM-140513011
...
29
Washer NLA MTD-IM-026100005
...
30
Hose MTD-IM-068209182
...
31
Adjuster, Oil Pump MTD-IM-728260010
...
33
Ring, Snap MTD-IM-036800006
...
34
Cap, Oil Filler MTD-IM-198433021
...
35
O-Ring MTD-IM-052100150
...
36
Connector MTD-IM-198483120
...
37
Cover MTD-IM-720973759
...
38
Bolt MTD-IM-010700522
...
39
Bolt MTD-IM-010700510
...
40
Screw MTD-IM-015100606
...
41
Case, Gear MTD-IM-720263740
...
42
Gear Assembly MTD-IM-720273890
...
43
Bearing, Ball MTD-IM-720973159
...
44
Bearing, Ball MTD-IM-720973696
...
45
Ring, Snap MTD-IM-036100009
...
46
Ring, Snap MTD-IM-036500024
...
47
Washer MTD-IM-720973760
...
48
Bearing, Ball MTD-IM-720973761
...
49
Bearing, Ball MTD-IM-720973762
...
50
Ring, Snap MTD-IM-036500028
...
51
Sprocket MTD-IM-728270010
...
52
Nut MTD-IM-023100006
...
53
Cover MTD-IM-720343960
...
54
Nut MTD-IM-023100008
...
55
Pin, Dowel MTD-IM-720973763
...
56
Plate, Guide MTD-IM-720643150
...
57
Bolt MTD-IM-720783020
...
58
Bolt MTD-IM-720783030
...
59
Name Plate MTD-IM-720960020
...
60
Caution Plate MTD-IM-720953100
...
61
Chain, 9.52mm MTD-IM-198263010
...
62
Bar, Chain, 250mm MTD-IM-728280010
...
63
Box, Spanner MTD-IM-720983660
...
64
Cover, Chain MTD-IM-720913140
...
...
...
