MTD OHV Engines 6X65RUA 159cc Engine

Model: 6X65RUA 159cc Engine

Save
 Part Not Listed?Part Not Listed?
product name

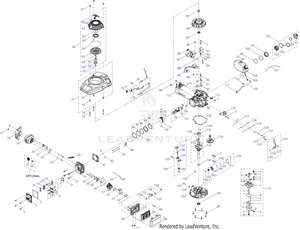

6X65RUA General Assembly

...
...
1
BOLT M6x14 Multi-Purpose MTD-710-04916
...
2
VALVE COVER MTD-951-14609A
...
3
VALVE COVER GASKET MTD-951-11551
...
4
ROCKER ARM ASSEMBLY MTD-951-11606
...
5
JAM NUT MTD-751-11124
...
6
FULCRUM NUT MTD-751-11123
...
7
ROCKER ARM MTD-951-12001
...
8
ROCKER ARM STUD MTD-710-04902
...
9
VALVE SPRING RETAINER MTD-951-11977
...
10
VALVE SPRING MTD-751P12004A
...
11
INTAKE VALVE SEAL MTD-921-04237A
...
12
EXHAUST VALVE MTD-951-14641
...
13
INTAKE VALVE MTD-951-14640A
...
14
PUSH ROD GUIDE MTD-951-11687
...
15
BOLT M8x54 CYLINDER HEAD MTD-910-06185
...
16
CYLINDER HEAD MTD-951-14639
...
17
NUT M6x10mm Starter/Carb/Muff MTD-712-05015
...
18
MUFFLER SHIELD MTD-951-15072
...
19
MUFFLER ASSEMBLY MTD-951-14429A
...
20
CHOKE TEMP CONTROL THERMOSTAT MTD-951-14428A
...
21
BOLT M6x12 Multi-Purpose MTD-710-04915
...
22
MUFFLER GASKET MTD-951-14427A
...
23
MUFFLER STUD M6x95 MTD-710-05094
...
24
SPARK PLUG/F5RTC MTD-951-14437
...
24
Cub Cadet SPARK PLUG-F5RTC Retail Packaged Part MTD-490-250-C014
...
24
Troy-Bilt SPARK PLUG (14437) Retail Packaged Part MTD-490-250-Y014
...
25
SPARK ARRESTOR MTD-951-10351A
...
26
SPARK ARRESTOR SCREW MTD-710-04983
...
27
CARB STUD M6x87 MTD-951-14425
...
28
CARBURETOR INSULATOR GASKET MTD-951-11528
...
29
CARBURETOR INSULATOR MTD-951-11738A
...
30
CARBURETOR GASKET MTD-951-14424
...
31
CARBURETOR ASSEMBLY MTD-951-05298
...
32
CHOKE TEMP CONTROL BRACKET GASKET MTD-951-14422
...
33
CHOKE TEMP CONTROL BRACKET MTD-951-14420A
...
34
AIR FILTER BASE GASKET MTD-951-14419A
...
35
CHOKE TEMP CONTROL LINKAGE MTD-951-14421A
...
36
AIR FILTER ASSEMBLY MTD-951-14631
...
37
AIR FILTER BASE MTD-(NOT SERVICED)
...
38
AIR FILTER COVER MTD-931-10202
...
39
AIR FILTER MTD-951-14632A
...
39
Troy-Bilt AIR & FUEL FILTER KIT (14632/12296) Retail Packaged Part MTD-490-950-Y049
...
40
BOLT M6x30 AF BASE/COIL/E-STARTER MTD-710-04969
...
41
CYLINDER HEAD GASKET MTD-951-14431
...
42
CYLINDER HEAD DOWEL PIN 10x16 MTD-715-04108
...
43
PUSH ROD MTD-747-04862
...
44
TAPPET MTD-951-14432A
...
45
PISTON RING SET MTD-951-14433A
...
46
UPPER PISTON COMPRESSION RING MTD-(NOT SERVICED)
...
47
LOWER PISTON COMPRESSION RING MTD-(NOT SERVICED)
...
48
PISTON OIL RING SEGMENT MTD-(NOT SERVICED)
...
49
PISTON OIL RING EXPANDER MTD-(NOT SERVICED)
...
50
PISTON PIN SNAP RING MTD-951-11603
...
51
PISTION MTD-951-14434A
...
52
PISTON PIN MTD-951-14435
...
53
CONNECTING ROD MTD-951-14436A
...
54
CONNECTING ROD MTD-(NOT SERVICED)
...
55
CONNECTING ROD CAP MTD-(NOT SERVICED)
...
56
CONNECTING ROD BOLT MTD-(NOT SERVICED)
...
57
ACORN NUT M6-1 MTD-712-04276A
...
58
RECOIL STARTER ASSEMBLY MTD-951-05360A
...
59
STARTER HANDLE MTD-731-07925
...
60
STARTER HOUSING ROPE EYELET MTD-(NOT SERVICED)
...
61
STARTER HOUSING MTD-(NOT SERVICED)
...
62
STARTER SHAFT MTD-(NOT SERVICED)
...
63
RECOIL SPRING MTD-932-05159
...
64
STARTER ROPE MTD-(NOT SERVICED)
...
65
STARTER PULLEY MTD-(NOT SERVICED)
...
66
STARTER PAWL RETURN SPRING MTD-(NOT SERVICED)
...
67
PRESSURE PLATE SPRING MTD-(NOT SERVICED)
...
68
STARTER PAWL MTD-(NOT SERVICED)
...
69
PRESSURE PLATE MTD-(NOT SERVICED)
...
70
PRESSURE PLATE BOLT MTD-(NOT SERVICED)
...
71
ENGINE SHROUD ASSEMBLY MTD-931-05236
...
72
ENGINE SHROUD MTD-931-10631
...
73
ENGINE SHROUD SPACER MTD-750-05320
...
74
STARTER/SHROUD REAR STUD M6x78.5 MTD-951-14397
...
75
STARTER/SHROUD FRONT STUD M6x74 MTD-951-14819
...
76
CARBON CANISTER FILTER CAP MTD-951-14127
...
77
CARBON CANISTER FILTER MTD-951-14400
...
78
CARBON CANISTER MTD-951-14629
...
79
CARBON CANISTER MTD-951-14126
...
80
CARBON CANISTER VENT HOSE 5x8x340 MTD-935-05045
...
81
CARBON CANISTER PURGE HOSE MTD-935-05046
...
82
FLYWHEEL NUT M14 MTD-712-04287
...
83
FLYWHEEL MTD-951-15491
...
84
UPPER CRANKSHAFT SEAL MTD-951-11596
...
85
BOLT M6x25 IGN/BRAKE/CVR PLT MTD-710-04919
...
86
BRAKE SPRING MTD-932-05255
...
87
BRAKE ASSEMBLY MTD-951-05222
...
88
BOLT M6x28 T/X/P Multi-Purpose/Crankcase MTD-710-04943
...
89
IGNITION COIL ASSEMBLY MTD-925-06178
...
90
IGNITION COIL SPACER MTD-950-06314
...
91
BREATHER COVER PLATE MTD-951-14404
...
92
BREATHER GASKET MTD-951-14405
...
93
BREATHER VALVE SPRING MTD-732-04718
...
94
BREATHER VALVE MTD-951-11614
...
95
BREATHER SCREEN MTD-951-11730
...
96
AIR VANE MTD-951-11529A
...
97
AIR VANE BRACKET MTD-951-14719
...
98
CRANKCASE MTD-951-14720
...
99
FUEL TANK LOWER GROMMET MTD-731-08133
...
100
FUEL TANK UPPER GROMMET MTD-951-14406
...
101
FUEL TANK NUT MTD-731-08104
...
102
FUEL CAP ASSEMBLY MTD-951-14407
...
103
FUEL CAP HOUSING MTD-(NOT SERVICED)
...
104
FUEL CAP TETHER MTD-951-14695
...
105
FUEL CAP GASKET MTD-(NOT SERVICED)
...
106
FUEL CAP COVER MTD-(NOT SERVICED)
...
107
PLASTIC TIE 150MM MTD-725-06031
...
108
Fuel Tank MTD-931-04629
...
109
FUEL FILTER MTD-951-12296A
...
109
Genuine Factory Parts FUEL FILTER Retail Packaged Part MTD-490-202-M006
...
110
FUEL HOSE MTD-935-05047
...
111
CARBURETOR HOSE CLAMP MTD-951-11700A
...
112
FUEL LINE SUPPORT CLAMP MTD-723-04071A
...
113
ELECTRIC STARTER ASSEMBLY (69:12) MTD-951-05413
...
114
DOWEL PIN MTD-715-04088A
...
115
FLEXIBLE CLAMP,VENT HOSE MTD-951-11680
...
116
COMPONENT BRACKET MTD-951-14413
...
117
CHOKE LINKAGE MTD-951-14408
...
118
THROTTLE LINKAGE SPRING MTD-951-14409
...
119
Throttle Linkage MTD-951-14721
...
120
GOVERNOR ARM SHAFT MTD-951-11621
...
121
OIL SEAL MTD-951-11902A
...
122
GOVERNOR ARM SHAFT COTTER PIN MTD-714-04078
...
123
GOVERNOR SPRING MTD-951-14718A
...
124
GOVERNOR ARM ASSEMBLY MTD-951-05160A
...
125
GOVERNOR ARM BOLT MTD-710-06221
...
126
GOVERNOR ARM MTD-951-14685
...
127
GOVERNOR ARM NUT M6 MTD-712-05015
...
128
CRANKCASE COVER GASKET MTD-951-14415
...
129
DOWEL PIN 9 X 14 MTD-715-04096A
...
130
DOWEL PIN 9 X 14 MTD-715-04096A
...
131
MAIN BEARING MTD-951-11369
...
132
CRANKSHAFT ASSEMBLY MTD-951-14417
...
133
WOODRUFF KEY MTD-751P10307A
...
134
CAMSHAFT ASSEMBLY MTD-951-11741
...
135
BOLT M6x35 AF BASE/BRAKE/DIPSTICK MTD-710-04980
...
136
DIPSTICK ASSEMBLY MTD-951-14666
...
137
Dipstick MTD-(NOT SERVICED)
...
138
O-RING MTD-921-04795A
...
139
OIL FILL TUBE MTD-(NOT SERVICED)
...
140
DIPSTICK / OIL FILL TUBE O-RING MTD-921-04697
...
141
CRANKSHAFT THRUST WASHER MTD-736-04491
...
142
Governor Gear Mounting Plate MTD-951-11609
...
143
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-11549
...
144
GOVERNOR SLIDE CAP MTD-931-09595
...
145
Governor Fly Weight MTD-(NOT SERVICED)
...
146
Governor Gear MTD-(NOT SERVICED)
...
147
GOVERNOR SLIDE CAP WASHER MTD-936-05038
...
148
GOVERNOR FLY WEIGHT PIN MTD-(NOT SERVICED)
...
149
GOVERNOR SHAFT STOP RING MTD-916-05003
...
150
GOVERNOR GEAR SHAFT MTD-(NOT SERVICED)
...
151
GOVERNOR GEAR WASHER MTD-(NOT SERVICED)
...
152
OIL RETURN SEAL MTD-951-11733
...
153
OIL DRAIN PLUG MTD-710-04906
...
154
FLAT WASHER MTD-736-04440A
...
155
BREATHER HOSE ASSEMBLY MTD-951-11520
...
156
BREATHER HOSE CLAMP MTD-726-04128
...
157
Breather Hose MTD-(NOT SERVICED)
...
158
BREATHER HOSE CLAMP MTD-726-04101
...
159
PLASTIC SUPPORT CLAMP,WIRE MTD-931-10630
...
160
CRANKCASE COVER MTD-951-14418A
...
161
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
a
CHOKE SHAFT MTD-(NOT SERVICED)
...
b
CHOKE PLATE MTD-(NOT SERVICED)
...
c
CHOKE RETURN SPRING MTD-(NOT SERVICED)
...
d
CHOKE SHAFT WASHER MTD-(NOT SERVICED)
...
e
THROTTLE/CHOKE SHAFT FIBER O-RING MTD-(NOT SERVICED)
...
f
THROTTLE PLATE MTD-(NOT SERVICED)
...
g
SCREW M3x6 THROTTLE PLATE MTD-(NOT SERVICED)
...
h
THROTTLE SHAFT MTD-(NOT SERVICED)
...
i
IDLE JET ASSEMBLY MTD-(NOT SERVICED)
...
j
THROTTLE/CHOKE SHAFT FIBER O-RING MTD-(NOT SERVICED)
...
k
IDLE SPEED ADJUSTING SCREW MTD-(NOT SERVICED)
...
l
IDLE MIXTURE SCREW MTD-(NOT SERVICED)
...
m
CARBURETOR BODY MTD-(NOT SERVICED)
...
n
EMULSION TUBE MTD-(NOT SERVICED)
...
o
MAIN JET MTD-(NOT SERVICED)
...
p
FUEL BOWL O-RING MTD-951-11589
...
q
NEEDLE VALVE MTD-(NOT SERVICED)
...
r
NEEDLE VALVE SPRING MTD-(NOT SERVICED)
...
s
FLOAT MTD-(NOT SERVICED)
...
t
FLOAT PIN MTD-(NOT SERVICED)
...
u
FLOAT BOWL MTD-908-05001
...
v
FUEL BOWL GASKET MTD-951-11348A
...
w
FUEL BOWL MOUNTING BOLT MTD-710-04945
...
x
FUEL DRAIN PLUG MTD-710-04938
...
y
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
xx
COMPLETE ENGINE MTD-952Z6X65RUA
...
...
...
