MTD OHV Engines 5T65RU 140cc Engine

Model: 5T65RU 140cc Engine

Save
 Part Not Listed?Part Not Listed?
product name

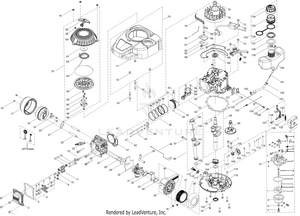

5T65RU General Assembly

...
...
1
Bolt M6X14 MTD-710-04916
...
2
Valve Cover MTD-908-05094
...
3
VALVE COVER GASKET MTD-951-11551
...
4
Rocker Arm Assembly MTD-951-11606
...
5
Jam Nut MTD-751-11124
...
6
Fulcrum Nut MTD-751-11123
...
7
Rocker Arm MTD-951-12001
...
8
Rocker Arm Stud MTD-710-04902
...
9
Push Rod Guide MTD-951-11687
...
10
Valve Spring Retainer MTD-951-11977
...
11
VALVE SPRING MTD-751P12004A
...
12
Intake Valve Seal MTD-921-04705
...
13
Exhaust Valve MTD-951-14641
...
14
INTAKE VALVE MTD-951-14640A
...
15
Bolt M8X54 MTD-710-06200
...
16
Nut M6X10 MTD-712-05015
...
17
MUFFLER SHIELD MTD-951-14693A
...
18
Muffler Assembly MTD-951-14737
...
19
Autochoke Temp-Comp Control MTD-951-14736
...
20
Bolt M6X12 MTD-710-04915
...
21
MUFFLER GASKET MTD-951-14427A
...
22
Muffler Stud M6X76 MTD-710-06204
...
23
Spark Plug/F5RTC MTD-951-14437
...
23
Cub Cadet SPARK PLUG-F5RTC Retail Packaged Part MTD-490-250-C014
...
23
Troy-Bilt SPARK PLUG (14437) Retail Packaged Part MTD-490-250-Y014
...
24
SPARK ARRESTOR MTD-951-10351A
...
25
Spark Arrestor Screw MTD-710-04983
...
26
Cylinder Head MTD-951-14689
...
26
Cylinder Head (Svc Kit) MTD-951-05162
...
27
Carb Stud M6X87 MTD-951-14425
...
28
Carburetor Insulator Gasket MTD-951-11528
...
29
CARBURETOR INSULATOR MTD-951-11738A
...
30
Carburetor Gasket MTD-921-04706
...
31
Carburetor Assembly MTD-951-05387
...
32
Choke Temp Control Bracket Gasket MTD-951-14422
...
33
CHOKE TEMP CONTROL BRACKET MTD-951-14420A
...
34
AIR FILTER BASE GASKET MTD-951-14419A
...
35
Air Filter Assembly MTD-951-05165
...
36
Air Filter Base MTD-NA
...
37
PAPER AIR FILTER MTD-951-14628A
...
37
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-490-200-M057
...
38
Air Filter Cover MTD-NA
...
39
Breather Hose MTD-735-05054
...
40
CHOKE TEMP CONTROL LINKAGE MTD-951-14421A
...
41
Cylinder Head Gasket MTD-951-14431
...
42
Cylinder Head Dowel Pin 10X16 MTD-715-04108
...
43
Push Rod MTD-747-04862
...
44
Tappet MTD-951-11607
...
45
PISTON RING SET MTD-951-14433A
...
46
Upper Piston Compression Ring MTD-NA
...
47
Lower Piston Compression Ring MTD-NA
...
48
Piston Oil Ring Segment MTD-NA
...
49
Piston Oil Ring Expander MTD-NA
...
50
Piston Pin Snap Ring MTD-951-11603
...
51
Piston Pin MTD-951-14435
...
52
PISTION MTD-951-14434A
...
53
Connecting Rod Assembly MTD-951-05163
...
54
Connecting Rod MTD-NA
...
55
Connecting Rod Cap MTD-NA
...
56
Connecting Rod Bolt MTD-NA
...
57
Starter Recoil Assembly MTD-951-05167
...
58
Starter Handle MTD-731-07925
...
59
Starter Housing Rope Eyelet MTD-NA
...
60
Starter Housing MTD-NA
...
61
Starter Shaft MTD-NA
...
62
Recoil Spring MTD-932-05159
...
63
Starter Rope MTD-NA
...
64
Starter Pulley MTD-NA
...
65
Starter Pawl Return Spring MTD-NA
...
66
Pressure Plate Spring MTD-NA
...
67
Starter Pawl MTD-NA
...
68
Pressure Plate MTD-NA
...
69
Pressure Plate Bolt MTD-NA
...
70
ENGINE SHROUD MTD-631P05196A
...
71
Engine Shroud MTD-NA
...
72
Engine Shroud Spacer MTD-950-06477
...
73
Shroud Stud M6X75 MTD-710-06208
...
74
Shroud Stud M6X73 MTD-710-06209
...
75
Flywheel Nut M14 MTD-712-04287
...
76
ENGINE FLYWHEEL MTD-925-06190A
...
77
Bolt M6X25 MTD-710-04919
...
78
Ignition Coil Assembly MTD-925-06193
...
79
Air Vane MTD-931-10292
...
80
Choke Linkage MTD-951-14562
...
81
BREATHER COVER PLATE MTD-908-05092
...
82
Breather Gasket MTD-921-04703
...
83
Breather Valve Spring MTD-732-04718
...
84
Breather Valve MTD-951-11614
...
85
Air Vane Pivot Stud MTD-951-14734
...
86
Air Vane Pivot Washer MTD-NA
...
87
Bolt M6X10 MTD-710-04914
...
88
COVER SHIELD PLATE MTD-908-05091
...
89
Upper Crankshaft Seal MTD-921-04700
...
90
Brake Assembly MTD-951-05166
...
91
Brake Spring MTD-NA
...
92
Crankcase MTD-951-14686
...
93
Crankcase Cover Gasket MTD-951-14415
...
94
Crankshaft Assembly MTD-951-14687
...
95
WOODRUFF KEY MTD-751P10307A
...
96
Camshaft Assembly MTD-951-11741
...
97
Bolt M6X28 MTD-710-04943
...
98
Dipstick Assembly MTD-931-10359
...
99
Dipstick MTD-NA
...
100
O-RING MTD-921-04795A
...
101
Dipstick Tube / Oil Fill MTD-NA
...
102
Dipstick / Oil Fill Tube O-Ring MTD-921-04697
...
103
GEAR MTD-931-10288A
...
104
Crankshaft Thrust Washer MTD-736-04491
...
105
Governor Gear Mounting Plate MTD-951-11609
...
106
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-11549
...
107
Governor Slide Cap MTD-931-09595
...
108
Governor Fly Weight MTD-NA
...
109
Governor Gear MTD-NA
...
110
Governor Slide Cap Washer MTD-936-05038
...
111
Governor Fly Weight Pin MTD-NA
...
112
Governor Shaft Stop Ring MTD-916-05003
...
113
Governor Gear Shaft MTD-NA
...
114
Governor Gear Washer MTD-NA
...
115
Oil Drain Plug MTD-710-04906
...
116
FLAT WASHER MTD-736-04440A
...
117
DOWEL PIN 9 X 14 MTD-715-04096A
...
118
DOWEL PIN 9 X 14 MTD-715-04096A
...
119
Crankcase Cover MTD-951-14735
...
120
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
121
COMPLETE ENGINE BRACKET MTD-908-05093
...
122
Throttle Linkage MTD-951-14696
...
123
THROTTLE LINKAGE SPRING MTD-732P05188A
...
124
Governor Arm Shaft MTD-951-14416
...
125
OIL SEAL MTD-951-11902A
...
126
Governor Arm Shaft Cotter Pin MTD-714-04078
...
127
Governor Arm Assembly MTD-951-05160A
...
128
Governor Arm Bolt MTD-710-06221
...
129
Governor Arm MTD-951-14685
...
130
Nut M6X10 MTD-712-05015
...
131
Governor Spring MTD-951-14411
...
132
Governor Shield MTD-931-10287
...
133
FUEL CAP W/TETHER MTD-951-15255A
...
134
Fuel Cap Cover MTD-NA
...
135
Fuel Cap Cover MTD-NA
...
136
Fuel Cap Tether MTD-951-14695
...
137
Fuel Tank Nut MTD-931-10290
...
138
Fuel Tank Upper Grommet MTD-951-14406
...
139
Fuel Tank Dust Cap MTD-NA
...
140
FUEL TANK MTD-931-10291A
...
141
FUEL FILTER MTD-951-12296A
...
141
Genuine Factory Parts FUEL FILTER Retail Packaged Part MTD-490-202-M006
...
142
CARBURETOR HOSE CLAMP MTD-951-11700A
...
143
FUEL HOSE MTD-735-05053A
...
a
Choke Shaft MTD-NA
...
b
Choke Plate MTD-NA
...
c
Choke Return Spring MTD-NA
...
d
Choke Shaft Washer MTD-NA
...
e
Throttle/Choke Shaft Fiber O-Ring MTD-NA
...
f
Carburetor Body MTD-NA
...
g
Emulsion Tube MTD-NA
...
h
Main Jet MTD-NA
...
i
Fuel Bowl O-Ring MTD-951-11589
...
j
Needle Valve MTD-NA
...
k
Needle Valve Spring MTD-NA
...
l
Float Pin MTD-NA
...
m
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
n
FUEL DRAIN PLUG MTD-710-04938
...
o
Fuel Bowl Mounting Bolt MTD-710-04945
...
p
FUEL BOWL GASKET MTD-951-11348A
...
q
FLOAT BOWL MTD-908-05001
...
r
Float MTD-NA
...
s
Idle Mixture Screw MTD-NA
...
t
Idle Speed Adjusting Screw MTD-NA
...
u
Throttle/Choke Shaft Fiber O-Ring MTD-NA
...
v
Throttle Plate MTD-NA
...
w
Screw M3X6 Throttle Plate MTD-NA
...
x
Throttle Shaft MTD-NA
...
y
Idle Jet Assembly MTD-NA
...
z
LOCK WASHER MTD-736-04638A
...
xx
COMPLETE ENGINE 140cc MTD-952Z5T65RUB
...
...
...
