MTD OHV Engines 370-SUB Engine 2009 & Before

Model: 370-SUB Engine 2009 & Before

Save
 Part Not Listed?Part Not Listed?
product name

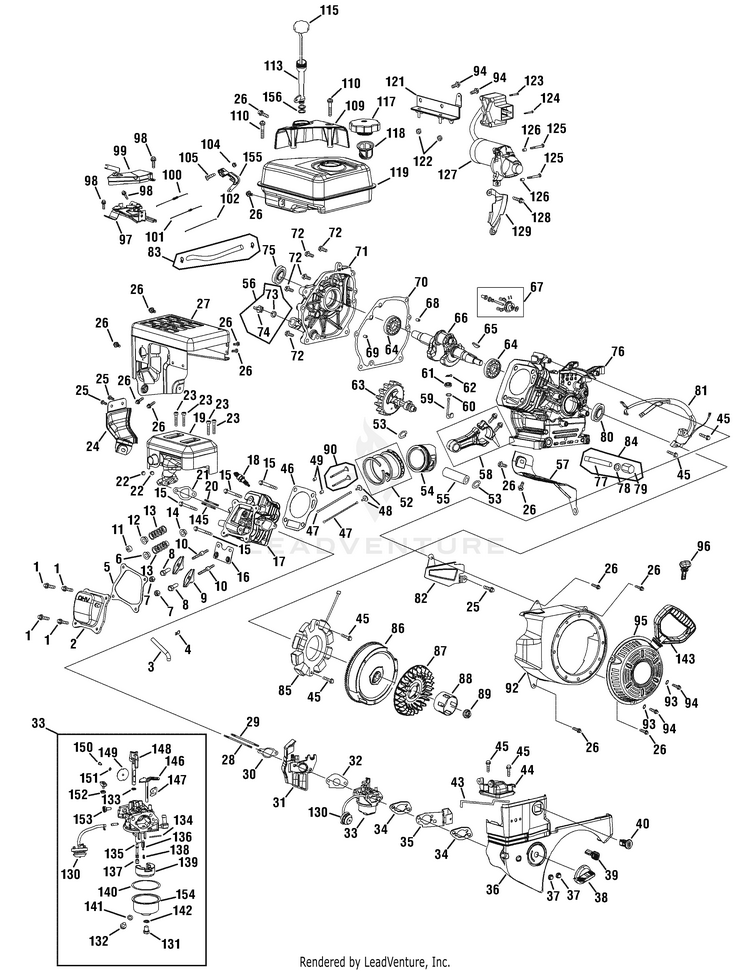

Engine Assembly 370-SUB

...
...
1
Bolt, Flange M6 x 16 MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
2
Valve Cover (Furnish 951-11063, Valve Cover Kit) MTD-951-11054B
...
3
Breather Hose MTD-951-14855
...
4
Hose Clamp MTD-726-04101
...
5
Head Cover Gasket (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
5
Head Cover Gasket (Furnish 951-10661B, Gasket Kit External) MTD-NA
...
5
Head Cover Gasket (Furnish 951-10668A, Cylinder Head Assembly) MTD-NA
...
5
Head Cover Gasket (Furnish 951-11059A, Gasket Kit Complete) MTD-NA
...
5
Head Cover Gasket (Furnish 951-11063, Valve Cover Kit) MTD-NA
...
6
Intake Valve Spring Seat (Furnish 951-10668A, Cylinder Head Assembly) MTD-NA
...
7
Pivot Locking Nut MTD-751-11124
...
7
Pivot Locking Nut (Furnish 951-10668A, Cylinder Head Assembly) MTD-751-11124
...
8
Valve Adjusting Nut MTD-751-11123
...
8
Valve Adjusting Nut (Furnish 951-10668A, Cylinder Head Assembly) MTD-751-11123
...
9
Rocker Arm (Furnish 951-10668A, Cylinder Head Assembly) MTD-NA
...
10
Pivot Bolt MTD-710-04902
...
10
Pivot Bolt (Furnish 951-10668A, Cylinder Head Assembly) MTD-710-04902
...
11
Exhaust Valve Adjuster (Furnish 951-10668A, Cylinder Head Assembly) MTD-NA
...
12
Exhaust Valve Spring Seat (Furnish 951-10668A, Cylinder Head Assembly) MTD-NA
...
13
Valve Spring (Furnish 951-10668A, Cylinder Head Assembly) MTD-NA
...
14
Intake Valve Seal (Furnish 951-10668A, Cylinder Head Assembly) MTD-NA
...
15
Bolt MTD-710-04933
...
16
Push Rod Guide Plate (Furnish 951-10668A, Cylinder Head Assembly) MTD-NA
...
17
Cylinder Head - Complete (Furnish 951-10668A, Cylinder Head Assembly) MTD-NA
...
18
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
19
Muffler Assembly MTD-951-11282
...
20
Stud MTD-710-05001
...
20
Stud (Furnish 951-10657, Muffler Stud Assembly) MTD-710-05001
...
21
MUFFLER GASKET MTD-751P11289A
...
21
MUFFLER GASKET (Furnish 951-11060A, Short Block Assembly) MTD-751P11289A
...
21
MUFFLER GASKET (Furnish 951-10661B, Gasket Kit External) MTD-751P11289A
...
21
MUFFLER GASKET (Furnish 951-10668A, Cylinder Head Assembly) MTD-751P11289A
...
21
MUFFLER GASKET (Furnish 951-11059A, Gasket Kit Complete) MTD-751P11289A
...
22
Nut MTD-712-04214
...
23
HEX FLANGE BOLT M5x10 MTD-710-09956
...
24
Exhaust Pipe Shield MTD-951-11111
...
25
Bolt MTD-710-04940
...
26
Bolt MTD-710-04915
...
27
Muffler Shield MTD-951-10642B
...
28
Stud, M6 x117 MTD-710-04939
...
29
Stud, M6 x 105 MTD-710-04910
...
30
Carburetor Insulator Gasket (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
30
Carburetor Insulator Gasket (Furnish 951-10661B, Gasket Kit External) MTD-NA
...
30
Carburetor Insulator Gasket (Furnish 951-10668A, Cylinder Head Assembly) MTD-NA
...
30
Carburetor Insulator Gasket (Furnish 951-11059A, Gasket Kit Complete) MTD-NA
...
31
Carburetor Insulator Plate (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
31
Carburetor Insulator Plate (Furnish 951-10661B, Gasket Kit External) MTD-NA
...
31
Carburetor Insulator Plate (Furnish 951-10668A, Cylinder Head Assembly) MTD-NA
...
31
Carburetor Insulator Plate (Furnish 951-11059A, Gasket Kit Complete) MTD-NA
...
32
Carburetor Gasket (Furnish 951-10661B, Gasket Kit External) MTD-NA
...
32
Carburetor Gasket (Furnish 951-11059A, Gasket Kit Complete) MTD-NA
...
33
Carburetor Assembly (Hy-170Sa) MTD-951-14026A
...
33
Carburetor Assembly (Hy-170Sa) (Incl. Ref No. 130-142, 146-154) MTD-951-14026A
...
34
Carburetor Gasket Plate (Furnish 951-10661B, Gasket Kit External) MTD-NA
...
34
Carburetor Gasket Plate (Furnish 951-11059A, Gasket Kit Complete) MTD-NA
...
35
Choke Control Bracket MTD-951-11112
...
36
Air Cleaner Housing MTD-951-10634A
...
37
Nut MTD-712-04213
...
38
Choke Knob MTD-951-11284
...
39
THROTTLE LEVER KNOB MTD-751P10757A
...
40
Ignition Switch MTD-951-10637
...
43
Choke Push Rod MTD-951-10640
...
44
Heater Box MTD-951-10635
...
45
Bolt MTD-710-04919
...
46
Cylinder Head Gasket (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
46
Cylinder Head Gasket (Furnish 951-10668A, Cylinder Head Assembly) MTD-NA
...
46
Cylinder Head Gasket (Furnish 951-11059A, Gasket Kit Complete) MTD-NA
...
47
Push Rod Kit (incl. intake and exhaust rod) MTD-951-10648
...
48
Tappet (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
49
Dowel Pin 10×16 MTD-715-04108
...
49
Dowel Pin 10×16 (Furnish 951-11060A, Short Block Assembly) MTD-715-04108
...
52
Piston Ring Set (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
53
Piston Pin Snap Ring (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
54
Piston (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
55
Piston Pin (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
56
Oil FIll Plug Assembly ((Incl. Ref No. 73-74)) MTD-951-11283
...
57
Air Shield MTD-951-11113
...
58
Connecting Rod Assembly (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
59
Governor Shaft MTD-951-14053
...
59
Governor Shaft (Furnish 951-11060A, Short Block Assembly) MTD-951-14053
...
60
Washer MTD-736-04461
...
60
Washer (Furnish 951-11060A, Short Block Assembly) MTD-736-04461
...
60
Washer (Furnish 951-11059A, Gasket Kit Complete) MTD-736-04461
...
61
Governor Seal (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
61
Governor Seal (Furnish 951-11249, Crankcase Kit) MTD-NA
...
61
Governor Seal (Furnish 951-11059A, Gasket Kit Complete) MTD-NA
...
62
Cotter Pin MTD-714-04078
...
62
Cotter Pin (Furnish 951-11060A, Short Block Assembly) MTD-714-04078
...
62
Cotter Pin (Furnish 951-11059A, Gasket Kit Complete) MTD-714-04078
...
63
Camshaft Assembly (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
64
Radial Ball Bearing MTD-951-11369
...
64
Radial Ball Bearing (Furnish 951-11060A, Short Block Assembly) MTD-951-11369
...
64
Radial Ball Bearing (Furnish 951-11246, Crankcase Cover Kit) MTD-951-11369
...
64
Radial Ball Bearing (Furnish 951-11247, Crankshaft Kit) MTD-951-11369
...
64
Radial Ball Bearing (Furnish 951-11249, Crankcase Kit) MTD-951-11369
...
65
WOODRUFF KEY MTD-751P10307A
...
65
WOODRUFF KEY (Furnish 951-11060A, Short Block Assembly) MTD-751P10307A
...
65
WOODRUFF KEY (Furnish 951-11247, Crankshaft Kit) MTD-751P10307A
...
66
Crankshaft Assembly (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
66
Crankshaft Assembly (Furnish 951-11247, Crankshaft Kit) MTD-NA
...
67
Governor Gear/Shaft Assembly (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
68
DOWEL PIN 9 X 14 MTD-715-04096A
...
68
DOWEL PIN 9 X 14 (Furnish 951-11060A, Short Block Assembly) MTD-715-04096A
...
69
Dowel Pin, 9 x 14 MTD-715-04089
...
69
Dowel Pin, 9 x 14 (Furnish 951-11060A, Short Block Assembly) MTD-715-04089
...
70
CRANKCASE GASKET MTD-751P11371B
...
70
CRANKCASE GASKET (Furnish 951-11060A, Short Block Assembly) MTD-751P11371B
...
70
CRANKCASE GASKET (Furnish 951-11246, Crankcase Cover Kit) MTD-751P11371B
...
70
CRANKCASE GASKET (Furnish 951-11249, Crankcase Kit) MTD-751P11371B
...
70
CRANKCASE GASKET (Furnish 951-11059A, Gasket Kit Complete) MTD-751P11371B
...
71
Case Cover (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
71
Case Cover (Furnish 951-11246, Crankcase Cover Kit) MTD-NA
...
72
Bolt MTD-710-04932
...
72
Bolt (Furnish 951-11060A, Short Block Assembly) MTD-710-04932
...
72
Cover Bolts (Furnish 951-11246, Crankcase Cover Kit) MTD-NA
...
73
O-Ring (Furnish 951-11283, Oil Fill Plug Assembly) MTD-NA
...
73
O-Ring (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
73
O-Ring (Furnish 951-11246, Crankcase Cover Kit) MTD-NA
...
74
Oil FIll Plug (Furnish 951-11283, Oil Fill Plug Assembly) MTD-NA
...
74
Oil Fill Plug (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
74
Oil Fill Plug (Furnish 951-11246, Crankcase Cover Kit) MTD-NA
...
75
OIL SEAL MTD-751P11368A
...
75
OIL SEAL (Furnish 951-11060A, Short Block Assembly) MTD-751P11368A
...
75
OIL SEAL (Furnish 951-11246, Crankcase Cover Kit) MTD-751P11368A
...
75
OIL SEAL (Furnish 951-11247, Crankshaft Kit) MTD-751P11368A
...
75
OIL SEAL (Furnish 951-11059A, Gasket Kit Complete) MTD-751P11368A
...
76
Crankcase (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
76
Crankcase (Furnish 951-11249, Crankcase Kit) MTD-NA
...
77
Oil Drain Pipe (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
78
FLAT WASHER MTD-736-04440A
...
78
FLAT WASHER (Furnish 951-11060A, Short Block Assembly) MTD-736-04440A
...
78
FLAT WASHER (Furnish 951-10661B, Gasket Kit External) MTD-736-04440A
...
78
FLAT WASHER (Furnish 951-11059A, Gasket Kit Complete) MTD-736-04440A
...
79
Oil Drain Plug Washer (Furnish 951-11060A, Short Block Assembly) MTD-NA
...
80
OIL SEAL MTD-751P11370A
...
80
OIL SEAL (Furnish 951-11060A, Short Block Assembly) MTD-751P11370A
...
80
OIL SEAL (Furnish 951-11247, Crankshaft Kit) MTD-751P11370A
...
80
OIL SEAL (Furnish 951-11249, Crankcase Kit) MTD-751P11370A
...
80
OIL SEAL (Furnish 951-11059A, Gasket Kit Complete) MTD-751P11370A
...
81
Ignition Module MTD-951-10646A
...
82
Air Flow Shield MTD-951-11110
...
83
Fuel Line Kit (incl. clamps and fuel line) MTD-951-10650
...
84
Oil Drain Assembly, includes 77, 78, 79 MTD-951-10641
...
85
Alternator Assembly MTD-951-12050A
...
86
Flywheel MTD-951-10805
...
87
COOLING FAN MTD-951-10909B
...
88
Starter Cup MTD-951-10911
...
89
Flywheel Nut M14 MTD-712-04287
...
90
Valve Kit MTD-951-10647A
...
90
Valve Kit (Furnish 951-10668A, Cylinder Head Assembly) MTD-951-10647A
...
92
Recoil Housing MTD-951-12644
...
93
FLAT WASHER MTD-736-04455B
...
94
Bolt MTD-710-04914
...
95
Recoil Starter MTD-951-14151
...
96
Ignition Key MTD-951-10630
...
97
Throttle Control Assembly MTD-951-10758
...
98
Bolt M6×12 MTD-710-04915
...
99
Governor Shield MTD-951-11108
...
100
Governor Spring MTD-951-10654
...
101
THROTTLE SPRING MTD-751P10664A
...
102
THROTTLE LINKAGE MTD-751P10665A
...
104
Nut MTD-712-04216
...
105
Bolt M6×20 MTD-710-04918
...
109
Engine/Dipstick Cover MTD-951-10662
...
110
Bolt MTD-710-04905
...
113
Dipstick Assembly MTD-631-05020AP
...
115
Dipstick Assembly MTD-631-05020AP
...
117
Fuel Cap Assembly MTD-951-12533
...
118
Fuel Filter MTD-951-10652
...
119
Fuel Tank Assembly MTD-951-10653B
...
121
Switch Housing Mounting Bracket MTD-951-11114
...
122
Nut M6 MTD-712-05015
...
123
Screw, M4 x 55 MTD-710-04965
...
124
Bolt, M4 x 60 MTD-710-04935
...
125
Bolt MTD-710-04943
...
126
DOWEL PIN MTD-715-04088A
...
127
Electric Starter MTD-951-10645A
...
128
Bolt MTD-710-05003
...
129
Blower Housing Shield MTD-951-11109
...
130
PRIMER MTD-951-10639B
...
130
PRIMER (Furnish 951-10638 Carburetor Assembly) MTD-951-10639B
...
131
Bolt MTD-710-04945
...
131
Bolt (Furnish 951-10638 Carburetor Assembly) MTD-710-04945
...
132
FUEL DRAIN PLUG MTD-710-04938
...
132
FUEL DRAIN PLUG (Furnish 951-10638 Carburetor Assembly) MTD-710-04938
...
133
Gasket, Throttle Plate (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
133
Gasket, Throttle Plate (Furnish 951-11021, Carburetor Kit Major) MTD-NA
...
134
Float Pin (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
134
Float Pin (Furnish 951-11021, Carburetor Kit Major) MTD-NA
...
135
Emulsion Tube (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
135
Emulsion Tube (Furnish 951-11021, Carburetor Kit Major) MTD-NA
...
136
Needle Valve (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
136
Needle Valve (Furnish 951-11021, Carburetor Kit Major) MTD-NA
...
137
Main Jet (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
137
Main Jet (Furnish 951-11021, Carburetor Kit Major) MTD-NA
...
138
Needle Valve Spring (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
138
Needle Valve Spring (Furnish 951-11021, Carburetor Kit Major) MTD-NA
...
139
Float (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
139
Float (Furnish 951-11021, Carburetor Kit Major) MTD-NA
...
140
Fuel Bowl Gasket (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
140
Fuel Bowl Gasket (Furnish 951-11021, Carburetor Kit Major) MTD-NA
...
141
Fuel Drain Plug Gasket (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
141
Fuel Drain Plug Gasket (Furnish 951-11021, Carburetor Kit Major) MTD-NA
...
142
Fuel Bowl Gasket (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
142
Fuel Bowl Gasket (Furnish 951-11021, Carburetor Kit Major) MTD-NA
...
143
Starter Handle MTD-731-05696
...
145
Muffler Stud Assembly (Incl. Ref No. 20) MTD-951-10657
...
146
Choke Shaft (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
147
Choke Plate (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
148
Throttle Shaft (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
149
Throttle Plate (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
150
Screw, M3×5 (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
151
Lock Washer (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
152
Idle Jet Assembly (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
153
Idle Speed Adjusting Screw (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
154
Fuel Bowl (Furnish 951-10638 Carburetor Assembly) MTD-NA
...
155
Governor Arm Bracket MTD-951-11106
...
156
O-Ring MTD-951-11380
...
xx
Fuel Tank Nipple (Not Shown) MTD-951-10651
...
xx
Gasket Kit, External (Incl. Ref No. 5, 21, 30-32, 34, 78)(Not Shown) MTD-951-10661B
...
xx
Cylinder Head Kit (Incl. Ref No. 5-14, 16, 17, 21, 30, 31, 46, 90)(Not Shown) MTD-951-10722B
...
xx
Carburetor Kit - Huayi (Incl. Ref No. 133-142)(Not Shown) MTD-951-12788A
...
xx
Gasket Kit, Complete (Incl. Ref No. 5, 21, 30-32, 34, 46, 60-62, 70, 75, 78, 80)(Not Shown) MTD-951-11059A
...
xx
Short Block Assembly (Incl. Ref No. 5, 21, 30, 31, 46, 48, 49, 52-55, 58-80)(Not Shown) MTD-951-11060B
...
xx
Valve Cover Kit (Incl. Ref No. 2, 5)(Not Shown) MTD-951-12626
...
xx
Starter Pinion Shaft (Not Shown) MTD-951-11176
...
xx
Crankcase Cover Kit (Incl. Ref No. 64, 70-75)(Not Shown) MTD-951-11246
...
xx
Crankshaft Assembly (Incl. Ref No. 64-66, 75, 80)(Not Shown) MTD-951-11247A
...
xx
Crankcase Kit (Incl. Ref No. 61, 64, 70, 76, 80)(Not Shown) MTD-951-11249
...
xx
COMPLETE ENGINE 208cc (Not Shown) MTD-952Z670-WUB
...
...
...
Processing
