MTD 315-150-118 (1995) Snow Thrower

Model: 315-150-118 (1995)

Save
 Part Not Listed?Part Not Listed?
product name

Chassis

...
...
1
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
2
Carriage Bolt MTD-710-0276
...
3
Pan Head Screw MTD-710-0323
...
4
Carriage Bolt MTD-710-0451
...
5
Hex Washer Screw MTD-710-0642
...
6
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
7
Hex Washer Screw MTD-710-0773
...
8
Hex Washer Screw MTD-710-0896
...
9
Hex Cap Screw MTD-710-3015
...
10
Axle, .35 x .5 x 20.75 MTD-753-05480
...
11
Hex Center Lock Nut MTD-712-0429
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Hex Lock Nut MTD-712-0116
...
14
LOCK NUT 1/4 MTD-912-3027
...
15
LOCK NUT 1/4 MTD-912-3027
...
16
Knob MTD-720-0284
...
17
Chute Keeper MTD-731-0851A
...
18
Lower Chute MTD-731-0915B
...
19
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
20
Shave Plate MTD-731-1033
...
21
Extension Spring MTD-732-0357A
...
22
Flat Washer MTD-736-0108
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
25
Flat Washer MTD-736-0176
...
26
Washer MTD-736-0159
...
27
Flat Washer MTD-736-0326
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
30
BALL BEARING MTD-941-0600
...
31
Cable, 41.78" MTD-946-0910A
...
32
Spacer MTD-748-0234
...
33
Handle-Lower MTD-749-0796
...
34
Flat Idler MTD-756-0313
...
35
Bearing Cup MTD-784-5174-0637
...
36
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637
...
37
KIT-IDLER/BRAKE BRACKET MTD-753-05156
...
38
Blower Housing Replaces 784-5325 MTD-753-0713
...
39
Auger Ass'y. 21" MTD-984-04027A
...
40
Auger Rubber Replacement kit MTD-753-0613
...
41
Hex Washer Screw MTD-710-0352
...
42
Chute Crank Bracket MTD-784-5720-0637
...
43
Cap Screw MTD-710-0451
...
44
Bell Washer MTD-736-0242
...
45
BUSHING .380 ID MTD-941-0475
...
46
Hex Screw MTD-710-0191
...
xx
Wheel Ass'y (Not Shown) MTD-734-1176

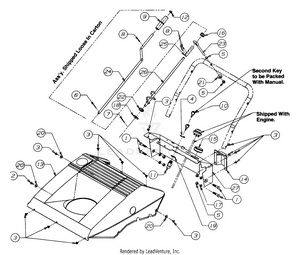

Cover & Dash

...
...
1
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
2
Special Screw, #10-16 x .625 MTD-710-04669
...
3
Screw Hex B-Tap MTD-710-1268
...
4
Nut-Hex MTD-712-0252
...
5
HEX NUT 5/16-18 MTD-712-3010
...
6
Cotter Pin MTD-714-0111
...
7
Cotter Pin MTD-714-0507
...
8
Rolled Pin, 1/8 x .63 MTD-915-0138
...
9
Knob-Chute Crank MTD-720-0201A
...
10
Key MTD-925-0201
...
11
Ignition Switch MTD-925-1425
...
12
Nut Push MTD-726-0100
...
13
Shroud-21" MTD-731-1087
...
14
Choke Cover MTD-731-1089
...
15
Plastic Cap 1.75 Dia x .72 MTD-731-1133C
...
16
Grommet MTD-735-0234
...
17
Lock Wash. 5/16" I.D. MTD-936-0119
...
18
Washer Flat MTD-736-0133
...
19
Washer-Internal Lock MTD-736-0225
...
20
Washer Flat MTD-736-0400
...
21
Washer Saddle MTD-736-0451
...
22
Bushing Hex MTD-741-0403
...
23
Eyebolt MTD-747-0697
...
24
Upper Chute Crank MTD-747-0737-0637
...
25
Spacer, .382 x .50 x 1.12 MTD-950-0785
...
26
Crank Ass'y. Chute Lower MTD-784-5497
...
27
Panel Ass'y. Dash MTD-784-5572

Wheel Ass'y

...
...
1
Wheel Ass'y.-White MTD-734-1176
...
xx
WHEEL-7X1.50 MTD-734-04062A
...
...
...
