product name

MTD 31245S (1985) Snow Thrower

Model: 31245S (1985)

Save
 Part Not Listed?Part Not Listed?
product name

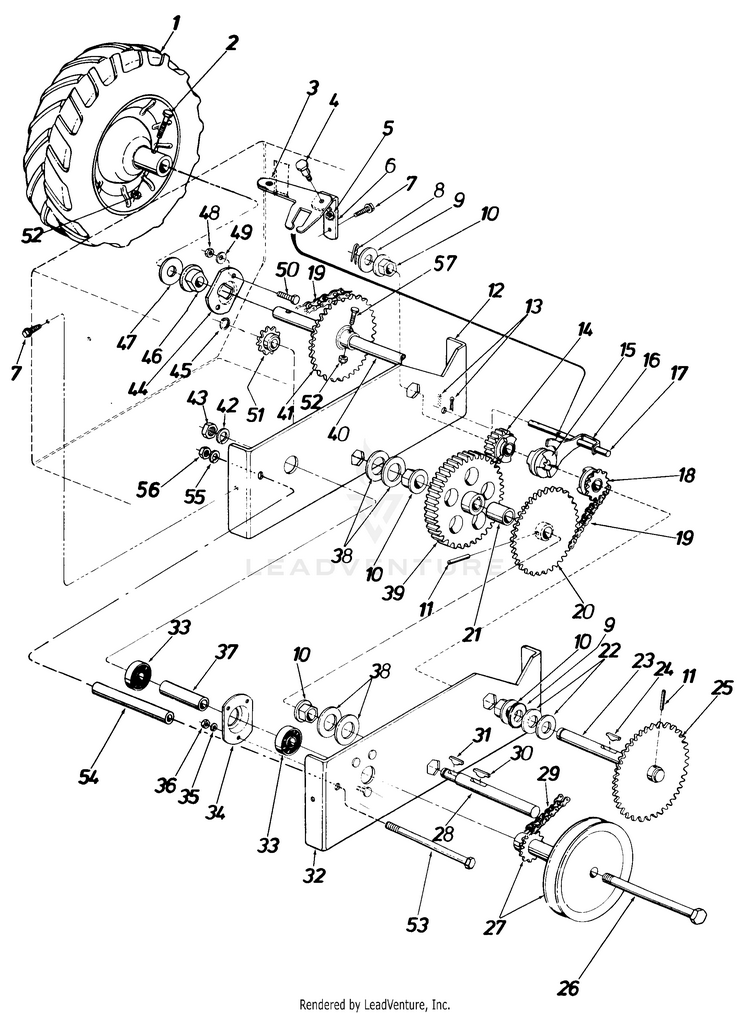

Snow

...
...
1
Wheel Ass'y. Comp. 12.5 x 3.5 R.H. MTD-734-0988
...
xx
Wheel Ass'y. Comp. 12.5 x 3.5 L.H. (Not Shown) MTD-734-0987
...
2
Hex Bolt 5/16-24 x 1.50" Lg. H .T. MTD-710-0624
...
3
Shifting Bracket MTD-05962
...
4
Shld. Scr. .438" Dia. x .180 Lg. MTD-738-0140
...
5
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
6
Shifting Bracket Support MTD-05808
...
7
Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50 MTD-710-0600
...
8
Cotter Pin 3/32 Dia. x 1.00" Lg. MTD-714-0111
...
9
Fl-Wash. .64 I.D. x 1.25 O.D. x .060 MTD-736-0187
...
10
Hex Flange Brg. MTD-948-0229
...
11
H-Spring Pin Spiral 1/4" Dia. x 1.50 Lg. MTD-715-0114
...
12
Drive Housing Bracket R.H. MTD-05792
...
13
Internal Cotter Pin 3/8 Dia. MTD-714-0104
...
14
Spur Gear 21 Teeth MTD-748-0163
...
15
Clutch Collar MTD-748-0161
...
16
Shifting Yoke MTD-05054
...
17
Rod MTD-738-0315
...
18
Sprocket 10 Teeth MTD-748-0164
...
19
#41 Chain 1/2" Pitch x 33 Links MTD-713-0263
...
xx
Master Link for #41 Chain MTD-913-0723
...
20
28 Teeth Sprocket Hub Ass'y. MTD-05093
...
21
Spacer .62 I.D. x .88 O.D. x 1.030 MTD-750-0229
...
22
Fl-Wash. .64 I.D. x 1.25 O.D. x .100 MTD-736-0237
...
23
Shifting Shaft MTD-738-0459
...
24
Hi-Pro Key 3/16 x 3/4" Dia. x 1 .062 MTD-714-0137
...
25
32 Teeth Sprocket Hub Ass'y. MTD-05137
...
26
Hex Scr. 1/2-20 x 5.50" Lg. MTD-710-0506
...
27
5.25" O.D. Pulley with 9 Teeth Sprocket MTD-756-0325
...
28
Shaft MTD-738-0564
...
29
#41 Chain 1/2 Pitch x 47 Links MTD-713-0265
...
xx
Master Link for #41 Chain MTD-913-0723
...
30
Hi-Pro Key 3/16 x 3/4" Dia. MTD-714-0126
...
31
#4 Hi-Pro Key 3/32 x 5/8" Dia. MTD-914-0129
...
32
Drive Housing Bracket Ass'y. L.H. MTD-05789
...
33
Ball Bearing .500 I.D. x 1.38 O.D. x .438 MTD-741-0133
...
34
Bearing Housing MTD-05034A
...
35
L-Wash. 1/4" I.D. MTD-936-0329
...
36
Hex Nut 1/4-20 Thd. MTD-912-0287
...
37
Spacer .52 I.D. x .62 O.D. x 2.69 MTD-750-0295
...
38
Fl-Wash. 1.06 I.D. x 1.75 O.D. x .100 MTD-736-0250
...
39
Spur Gear 62 Teeth MTD-748-0162
...
40
Wheel Axle MTD-738-0460
...
41
32 Teeth Sprocket Hub Ass'y. MTD-713-0261
...
42
L-Wash. 1/2" I.D. MTD-736-0921
...
43
Hex Ins. L-Nut 1/2-20 Thd. MTD-712-0200A
...
44
Bearing Plate MTD-10470
...
45
Snap Ring .562" Dia. Shaft MTD-716-0397
...
46
Flange Brg. w/Flats .75" I.D. MTD-941-0490
...
47
Fl-Wash. .81 I.D. x 1.25 O.D. x .060 MTD-736-0287
...
48
HEX NUT 5/16-18 MTD-712-3010
...
49
Bell-Wash. 5/16" I.D. MTD-736-0242
...
50
Carriage Bolt 5/16-18 x .75n Lg. MTD-710-0451
...
51
8 Teeth Sprocket #41 Chai n MTD-713-0337
...
52
NUT MTD-912-0273
...
53
Hex Bolt 5/16-18 x 4.0" Lg. MTD-710-0190
...
54
Spacer 3.25" Lg. MTD-750-0324
...
55
Lock Wash. 5/16" I.D. MTD-936-0119
...
56
HEX NUT 5/16-18 MTD-712-3010
...
57
Hex Bolt 5/16-24 x 1.5" Lg. MTD-710-0624

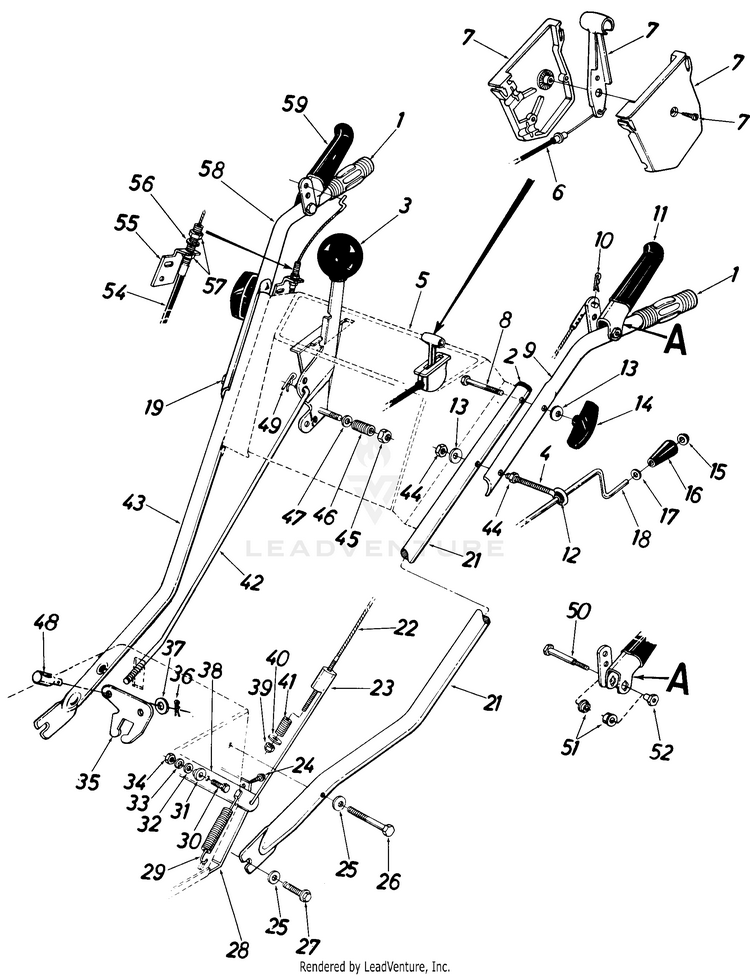

Snow

...
...
1
Grip MTD-720-04083
...
2
Plastic Plug MTD-731-0496
...
3
Shift Handle Ass'y. MTD-05805
...
4
Eye Bolt MTD-747-0416
...
5
Handle Panel Ass'y. MTD-784-5044
...
6
Throttle Control Wire MTD-946-0500
...
7
Throttle Control Box Ass'y. MTD-831-0796A
...
8
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
9
Upper Handle L.H. MTD-749-0593
...
10
Cotter Pin 3132" Dia. x .75" Lg. MTD-714-0507
...
11
Clutch Grip Ass'y. L.H. MTD-05987
...
12
BUSHING .380 ID MTD-941-0475
...
13
Belleville Wash. .34 I.D. x .88 O.D. x .060 MTD-736-0242
...
14
Star Knob MTD-720-04072A
...
15
Push Nut 3/8 Rod MTD-726-0100
...
16
Knob - Black MTD-920-0171
...
17
Fl-Wash. .385 I.D. x .62 O.D. x .060 MTD-736-0140
...
18
Chute Crank Ass'y. MTD-05981
...
19
Carriage Bolt 5/16-18 x 2.50" Lg. MTD-710-0572
...
21
Lower Handle Half L.H. MTD-749-0343
...
22
LOCKOUT CABLE MTD-946-0367
...
23
Auger Clutch Rod Ass'y. MTD-05567
...
24
Hex Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
25
Bel levi I le Wash. .40 I.D. x .88 O.D. x .060 MTD-736-0105
...
26
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
27
Hex Self-Tap Scr. 3/8-16 x .75" Lg. MTD-710-0623
...
28
Frame Cover MTD-05790
...
29
Extension Spring .38" O.D. x 3.25" Lg. MTD-932-0320
...
30
HEX BOLT 5/16-18 x 1 LG.* MTD-710-0322
...
31
Shoulder Spacer MTD-748-0233
...
32
Fl-Wash. .34 I.D. x 1.12 O.D. x .1 25 MTD-736-0231
...
33
Lock Wash. 5/16" I.D. MTD-936-0119
...
34
HEX NUT 5/16-18 MTD-712-3010
...
35
Shifting Brk't. MTD-05962
...
36
Cotter Pin 3/32" Dia. x 1.00" Lg. MTD-714-0111
...
37
Fl-Wash. .344 I.D. x .62 O.D. x .063 MTD-736-0264
...
38
Thrower Clutch Brk't. MTD-05559
...
39
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
40
Fl-Wash. .28 I.D. x .75 O.D. MTD-736-0173
...
41
Compression Spring .39 O . D. x .75" Lg. MTD-732-0337
...
42
Shifting Rod MTD-747-0323
...
43
Lower Handle Half R.H. MTD-749-0344
...
44
HEX NUT 5/16-18 MTD-712-3010
...
45
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
46
Compression Spring .60 O.D. x .88" Lg. MTD-732-0193
...
47
Belleville Wash. .40 I.D. x .88 O.D. MTD-736-0105
...
48
Engagement Ferru MTD-911-0677
...
49
Cotter Pin 3/32" Dia. x 1.00" Lg. MTD-714-0111
...
50
Shoulder Bolt .374 Dia. x 1.53" Lg. MTD-938-0560
...
51
Hex Flange Bearing MTD-741-0402
...
52
Shoulder Nut 1/4-20 Thd. MTD-938-0561
...
54
CLUTCH CONTROL CABLE MTD-946-0374
...
55
Cable Support Brk't. MTD-05795
...
56
Lock Wash. 5/16" I.D. MTD-936-0119
...
57
Hex Jam Nut 5/16-24 Thd. MTD-712-0256
...
58
Upper Handle Half R.H. MTD-749-0594
...
59
Clutch Grip Ass'y. R.H. MTD-05988

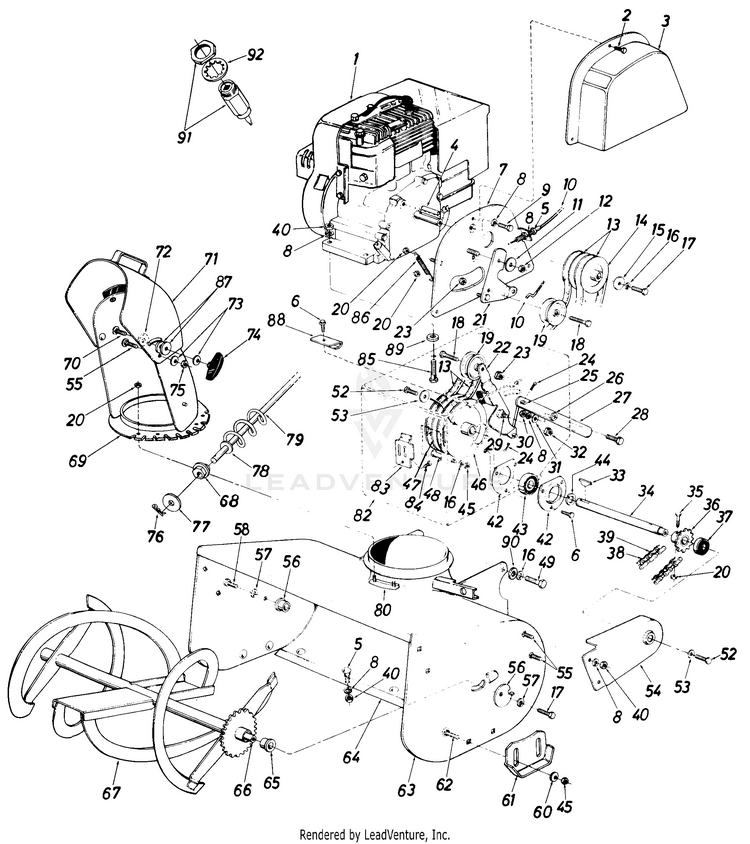

Snow

...
...
1
Engine B&S MTD-NA
...
2
Hex Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
3
Belt Cover MTD-05621
...
4
KEY, SPINDLE MTD-914-0105
...
5
Hex Jam Nut 5/16-24 Thd. MTD-712-0256
...
6
Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg. MTD-710-0600
...
7
Engine Plate Ass'y. MTD-05821
...
8
Lock Wash. 5/16" I.D. MTD-936-0119
...
9
Hex Scr. 5/16-24 x .62" Lg. MTD-710-0237
...
10
CLUTCH CONTROL CABLE MTD-946-0374
...
11
Fl-Wash. .39 I.D. x 1.50 O.D. x .060 MTD-736-0234
...
12
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
13
V-BELT 3/8 x 31.68 MTD-954-0205
...
14
Engine Pulley MTD-756-0257
...
15
FLAT WASHER .406 ID X 1 1/4 OD MTD-736-0247
...
16
L-Wash. 3/8 Scr. MTD-736-0169
...
17
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
18
Hex Scr. 3/8-16 x 1.25" Lg. MTD-710-0723
...
19
Flat Idler 2.25 O.D. MTD-756-0137
...
20
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
21
Drive Idler Bracket Ass'y. MTD-05823
...
22
Thrower Idler Bracket Ass'y. MTD-05556
...
23
JAM LOCK NUT MTD-712-0266A
...
24
Cotter Pin 3132" Dia. x 1.00" Lg.* MTD-714-0111
...
25
Clutch Rod 5/16" Dia. x 2.88 Lg. MTD-747-0174
...
26
Shoulder Spacer MTD-748-0233
...
27
Thrower Clutch Bracket MTD-05559
...
28
HEX BOLT 5/16-18 x 1 LG.* MTD-710-0322
...
29
Shoulder Scr. .625" Dia. x .1 70 " MTD-738-0281
...
30
HEX NUT 5/16-18 MTD-712-3010
...
31
Fl-Wash. .34 I.D. x 1.12 O.D. x .125 MTD-736-0231
...
32
JAM LOCK NUT MTD-712-0266A
...
33
Woodruff Key 5/32 x 5/8 Dia. MTD-714-0138
...
34
Thrower Shaft 22" and Snap Ring MTD-753-0294
...
35
Hex Scr. 1/4-20 x 1.50" Lg. MTD-710-0606
...
36
14 Teeth Sprocket Hub Ass'y. MTD-05156
...
37
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
38
#41 Chain 1/2" Pitch x 63 Links MTD-713-0106
...
39
Master Link for #41 Chain MTD-913-0723
...
40
HEX NUT 5/16-18 MTD-712-3010
...
xx
Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg. MTD-710-0600
...
42
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
43
Self Aligning Brg. MTD-941-0174
...
44
See Ref. No. 34 MTD-NA
...
45
Jam Nut, 3/8-16 MTD-912-3008
...
46
1/2" V-Pulley .753 I.D. MTD-756-0258
...
47
5.25" O.D. Pulley with 9 Teeth Sprocket MTD-756-0325
...
48
Shoulder Screw MTD-938-0481A
...
49
Hex Self-Tap Scr. 3/8-16 x .75" MTD-710-0623
...
52
Hex L-Scr. 5/16-18 x .62" Lg. MTD-710-0538
...
53
Belleville Wash. .34 I.D. x .88 O.D. x .060 MTD-736-0242
...
54
Chain Guard MTD-05563
...
55
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
56
Chain Adjuster MTD-06605
...
57
L-Wash. 3/8" Scr. MTD-736-0169
...
58
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
xx
Jam Nut, 3/8-16 MTD-912-3008
...
60
Belleville Wash. .40 I.D. x .88 O.D. MTD-736-0105
...
61
Skid Shoe MTD-784-5038B-0637
...
62
CARRIAGE BOLT 3/8-16 X .75 MTD-710-0389
...
63
Spiral Housing Ass'y. 22" MTD-784-5035
...
64
Shave Plate MTD-05843
...
65
Flange Bearing .630 I.D. MTD-748-0110
...
66
Spiral Shaft MTD-738-0484
...
67
Spiral Ass'y. 22" MTD-05844
...
68
Chute Bracket MTD-741-0403
...
69
Chute Ass'y. MTD-05996
...
70
Carriage Bolt 5/16-18 x 1.00" Lg. MTD-710-0276
...
71
Top Chute Ass'y. MTD-05225
...
72
Fl-Wash. .53 I.D. x 1.25 O.D. x . 1 00 MTD-736-0179
...
73
Belleville Wash. .34 I.D. x .88 O.D. MTD-736-0242
...
74
Star Knob MTD-720-04072A
...
75
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
76
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
77
Fl-Wash. .39" I.D. x 1.5" O.D. MTD-736-0234
...
78
Fl-Wash. .385" I.D. x .62" . O.D. MTD-736-0140
...
79
Chute Crank Ass'y. MTD-05981
...
80
Chute Flange Keeper Ass'y. MTD-05783
...
82
Frame Ass'y. MTD-05963
...
83
Belt Guard Plate MTD-05673
...
84
Hex Wash. Self-Tap Scr. 5/16-18 x .75" Lg. MTD-710-0726
...
85
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
86
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
87
UNKNOWN MTD-NA
...
88
Belt Guard MTD-05810
...
89
Fl-Wash. .34 I.D. x .62 O.D. x .060 MTD-736-0264
...
90
FLAT WASHER .406 ID X 1 1/4 OD (Top L..H. Side Only) MTD-736-0247
...
91
Ignition Switch MTD-925-1425
...
92
Ext. L-Wash. 5/8n l.D. MTD-736-0225
...
xx
Key (Not Shown) MTD-925-0201
...
...
...
