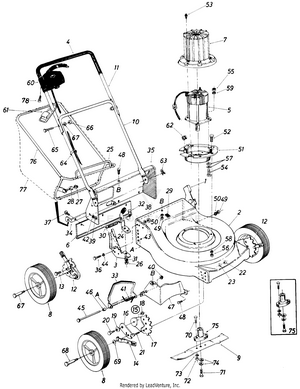

MTD 18312S (1985) Push Walk Behind Mower

Model: 18312S (1985)

Save
 Part Not Listed?Part Not Listed?
product name

Electric

...
...
1
Handle Brk't. Ass'y. L.H. MTD-12297
...
2
20" Deck Ass'y. MTD-15864
...
3
Handle Brk't. Ass'y. R.H. MTD-14592
...
4
Grip MTD-718-0145
...
5
120V Electric Motor B&S 101120 120 Volts, 8.0 Amps, 3200 AT RPM, 1000 Watts MTD-NA
...
6
Rear Flap Ass'y. MTD-731-0581
...
7
Shroud MTD-731-0655
...
8
Plastic Wheel 8 x 1.75 MTD-734-0841
...
9
20" Blade MTD-742-0123
...
10
Lower Handle MTD-749-0907B
...
11
Upper Handle (Chrome) MTD-749-0671
...
12
Height Adjust. Ass'y. L.H. MTD-12321
...
13
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
14
Spring Lever Ass'y. w/Knob MTD-10531
...
15
Height Adjust. Ass'y. R.H. MTD-12322
...
16
Pivot Bar MTD-10619
...
17
Index Plate MTD-12323
...
18
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
19
Bell-Wash. .515" I.D. x 1.14" O.D. MTD-736-0255
...
20
Shld. Bolt .500" Dia. x .295" MTD-738-0269
...
21
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
22
Hex Nut 3/8-16 Thd. MTD-712-0798
...
23
L-Wash. 3/8 I.D. MTD-736-0169
...
24
Grass Catcher Lock Lever w/Knob MTD-14845
...
25
Grass Catcher Lower Frame Ass 'y. MTD-14582
...
26
HEX NUT 5/16-18 MTD-712-3010
...
27
Push Nut 3/8" Rod MTD-726-0100
...
28
Plastic Roller MTD-731-0430
...
29
Plug MTD-731-0564
...
30
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
31
Lock Wash. 5/16" I.D. MTD-936-0119
...
32
Shoulder Bolt MTD-938-0155
...
33
Chute Door MTD-13407
...
34
Grass Catcher Hitch Brk't. MTD-14012
...
35
Rear Deck Secti on MTD-14585
...
36
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412
...
37
Carr. Bolt 1/4-20 x .75" Lg. MTD-710-0703
...
38
Hex Nut 1/4-28 Thd. MTD-712-0138
...
39
Sems Nuts 1/4-20 Thd. MTD-712-0271
...
40
PUSH NUT MTD-726-0106
...
41
Torsion Spring MTD-732-0346
...
42
Fl-Wash. .285" I.D. x 1.25" O.D. MTD-736-0211
...
43
SPRING WASHER BELL MTD-736-0270
...
44
L-Wash. 1/4" I.D. MTD-936-0329
...
45
Hinge Pin MTD-738-0386
...
46
Spacer MTD-950-0218
...
47
Rear Baffle MTD-14586
...
48
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
49
Hex Nut 1/4-20 Thd. MTD-912-0287
...
50
L-Wash. 1/4" I.D. MTD-936-0329
...
51
Adapter Plate MTD-15549
...
52
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
53
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
54
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
55
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
56
Hex Nut 3/8-16 Thd. MTD-712-0798
...
57
Fl-Wash. .38" I.D. x 1.0" O.D. MTD-936-0206
...
58
L-Wash. 3/8" I.D. MTD-736-0169
...
59
L-Wash. 1/4" I.D. MTD-936-0329
...
60
Control w/Cord MTD-725-0898
...
61
Restraint MTD-725-0899
...
62
Cord Restraint MTD-725-0908
...
63
Inter. Cot-Pin 5/16" Dia. MTD-714-0104
...
64
Cable Tie MTD-726-0223
...
65
Curve Carr. Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
66
HEX NUT 5/16-18 MTD-712-3010
...
67
Lock Wash. 5/16" I.D. MTD-936-0119
...
68
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
69
Shld. Bolt .498" Dia. x 1.450" MTD-738-0102
...
70
Hex Bolt 5/16-24 x 1.00" Lg. MTD-710-0888
...
71
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
72
Hex Nut 5/16-24 Thd. MTD-912-3057
...
73
Lock Wash. 5/16" I.D. MTD-936-0119
...
74
Bell-Wash. .345" I.D. x .88 O.D. MTD-736-0242
...
75
Blade Adapter Kit MTD-753-0351
...
76
Grass Catcher Upper Frame MTD-749-0278
...
77
Grass Bag MTD-764-0171
...
78
Truss Mach. AB-Tap Scr. MTD-710-0725
...
...
...
