MTD 140-844-000 (1990) Garden Tractor

Model: 140-844-000 (1990)

Save
 Part Not Listed?Part Not Listed?
product name

44" Rear Discharge Deck

...
...
1
Clevis Pin 1/4" Dia. x .53" Lg. MTD-911-0701
...
2
Hairpin Cotter 1/4" Dia. MTD-714-0104
...
3
Shld. Bolt .437" Dia. x .18" Lg. (5/1 6-1 8) MTD-738-0140
...
4
Spr. Wash. 7/16" I.D. MTD-936-0141
...
5
Spindle Brake Arm Ass'y. MTD-16339
...
6
Brake Cable Ass'y. (Deck) MTD-946-0237
...
7
PUSH NUT MTD-726-0106
...
8
Hex Jam Nut 5/8-18 Thd. MTD-712-0318
...
9
Bell-Wash. 5/8" I.D. x 1.25"O.D. MTD-736-0317
...
10
VBelt 1/2 x 56" Lg. MTD-954-0230
...
11
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
12
Belt Guard MTD-14258
...
13
Extension Spring MTD-732-0465
...
14
Bell-Wash..34" I.D. MTD-736-0242
...
15
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
16
Sprocket Pulley Ass'y. MTD-756-0334
...
17
Hex Bolt 5/16-24 x 1.0" Lg. (Grade 5) MTD-710-0888
...
18
Bearing Housing MTD-08253B
...
19
BALL BEARING MTD-941-0919B
...
20
Spindle Plate Ass'y. MTD-13868
...
21
L-Wash. 3/8" I.D. MTD-736-0169
...
22
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
23
44" R.D. Deck Ass'y. MTD-14251
...
24
Spacer MTD-750-0456
...
25
Lock Wash. 5/16" I.D. MTD-936-0119
...
26
Hex Nut 5/16-24 Thd. MTD-912-3057
...
27
SPINDLE (LH) MTD-738-0504
...
31
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
32
HHCS:3/8-24:.875:GR8:STD MTD-710-0696
...
33
22.5" Blade L.H. Rotation MTD-742-0216
...
34
Blade Adapter MTD-748-0235
...
35
Bearing Shield MTD-13703
...
37
Spacer 5/8" I.D. x 7/8" O.D. MTD-950-0932A
...
38
Deck Stabilizer MTD-17347-0637
...
39
BRACE-DIAGONAL MTD-17264
...
40
Fl-Wash. .5" I.D. x 1.0" O.D. x .090 MTD-736-0192
...
41
Cotter Pin 3132" Dia. x 1.00" Lg.* MTD-714-0111
...
42
Blade Spindle R.H. MTD-738-0505
...
43
Sq. Key 3/16" x .75" Lg. MTD-714-0122
...
44
Sq. Key 3/16" x 1.50" Lg. MTD-714-0133
...
45
Shoulder Spacer MTD-748-0279
...
46
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
48
Shld. Bolt 3/8-16 x 1.41 MTD-938-0455
...
49
Wheel Ass'y. Comp. 6" x 1.38" MTD-734-0974
...
51
Wheel Pivot Bar MTD-10937
...
52
Spring Lever Ass'y. w/Knob MTD-14082
...
53
Hex Bolt 3/8-24 x 1.25" Lg. (Grade 5) MTD-710-0191
...
54
Hex Cent. L-Nut 3/8-24 Thd. MTD-712-0214
...
56
CHAIN ADJUSTMENT LINK 5/16-18 x 4. MTD-710-0437A
...
57
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
58
Shld. Spacer .625" I.D. MTD-938-0347
...
59
Belt Idler Brkt. MTD-14256
...
60
Spacer, .380 x .625 x .255 MTD-750-04776
...
61
Fl-Wash. .38" I.D. x 1.37" O.D. x .1 25 MTD-736-0320
...
63
Spindle & Idler Mount Plate Ass'y. MTD-14254
...
64
HTD Twin Power Belt MTD-954-0260
...
65
Fl-ldler w/Flanges 3.50" O.D. MTD-956-0365
...
66
Bell-Wash. .38" I.D. MTD-736-0105
...
67
Hex Bolt 3/8-24 x 1.75" Lg. (Grade 5) MTD-710-0539
...
69
Bell-Wash. 5/8n I.D. MTD-736-0317
...
70
Hex Bolt 3/8-24 x 2" Lg. MTD-710-0151
...
71
Hex Insert L-Nut 5/16-18 Thd. MTD-712-0429
...
72
Fl-Wash. .344n I.D. x 1.125"O.D. x .125 MTD-736-0231
...
73
Shld. Spacer .625" I.D. MTD-938-0347
...
74
Spacer-Adj. Bolt MTD-750-0455
...
75
Compression Spring MTD-732-0377
...
77
N Belt Cover MTD-14253B
...
78
Deck Drive Pulley MTD-756-0375
...
79
Plate Deck Reinforcement MTD-09164A-0637
...
80
22.5" Blade R.H. Rotation MTD-742-0215
...
81
Fl-Wash. .38" I.D. x 1.0" O.D. MTD-936-0206
...
82
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
85
Open Bearing Housing MTD-15296A
...
86
Hairpin Cotter MTD-714-0145
...
87
Fl-Wash. 1/2" I.D. MTD-736-0192
...
90
Anti Scalp Plate MTD-07919B
...
91
Hex Nut 1/4-20 Thd. MTD-912-0287
...
92
L-Wash. 1/4" I.D. MTD-936-0329
...
93
Chute Deflector MTD-16411A
...
94
Truss Mach. Scr. 1/4-20 x .50"Lg. MTD-710-0286

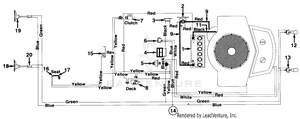

Style 4

...
...
1
N Battery (275 Cold Crank Amps) MTD-725-1430
...
2
Solenoid MTD-925-1426A
...
3
Circuit Breaker MTD-753-0685
...
4
Ammeter MTD-925-0925
...
5
Ignition Switch MTD-925-0267B
...
6
Light Switch MTD-925-0634
...
7
SWITCH (Clutch) MTD-925-04039
...
8
Safety Switch (PTO) MTD-925-0465A
...
9
WIRE ASSEMBLY (RED W/BOOT) (#6 X14) MTD-629-0705
...
11
Ground Wire 7.5" Lg. MTD-725-0996
...
12
Miniature Lamp 12V Socket Type MTD-925-0963
...
13
Headlight Socket MTD-925-1058A
...
14
N Wire Harness MTD-725-1445
...
15
Spring Switch MTD-725-0759
...
16
Outer Seat Spring Switch MTD-925-1303
...
17
N Spring Switch MTD-725-1439
...
18
Taillight Bulb MTD-725-3020
...
19
Taillight MTD-725-3018
...
20
Taillight Harness MTD-725-1380

Style 4

...
...
1
Hood MTD-16823
...
2
Shoulder Bolt .437" Dia. x .35 Lg. 5/16-18 Thd. MTD-938-0141
...
3
Bolt Retainer 1/4" I.D. MTD-726-0233
...
4
SPRING WASHER BELL MTD-736-0270
...
5
Shift Knob MTD-720-0218
...
6
Truss Mach. B-Tap Scr. #10 x .5" Lg. MTD-710-0351
...
8
Hood Reinforcement MTD-16808
...
9
Ball Knob Brake MTD-720-0166
...
10
Hood Hinge L.H. MTD-17271
...
11
Choke Control 46" Lg. MTD-946-3022B
...
12
Dash Support Brkt. L.H. MTD-17294
...
13
Circuit Breaker MTD-753-0685
...
14
Hood Hinge R.H. MTD-17270
...
15
Miniature Lamp 12V Socket Type MTD-925-0963
...
16
Headlight Socket MTD-925-1058A
...
17
Headlight Housing MTD-931-0705
...
19
7-Speed Selector Plate MTD-931-1746
...
20
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
21
Grille MTD-731-0935A
...
22
Dash Support Bracket R.H. MTD-17293
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
24
HEX NUT 5/16-18 MTD-712-3010
...
25
Fl-Wash. 1/4" I.D. x .93" O.D. MTD-736-0176
...
26
Lift Handle Ass'y. MTD-17282
...
27
Truss Mach. Scr. 1/4-20 x .51' Lg. MTD-710-0286
...
28
Deck Control Rod MTD-747-0708
...
29
Knob MTD-920-0232
...
30
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
31
PUSH NUT MTD-726-0106
...
32
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
33
PTO Lever MTD-747-0513
...
34
Deck Clutch Cont. Brkt. MTD-13950A
...
35
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
36
Hex Nut 1/4-20 Thd. MTD-912-0287
...
37
L-Wash. 1/4" I.D. MTD-936-0329
...
38
Rubber Washer .33" I.D. MTD-735-0126A
...
39
Truss Mach. Scr. 1/4-20 x .621" Lg. MTD-710-0946
...
40
Fl-Wash. .281" I.D. x .73" MTD-736-0173
...
41
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
42
Truss Mach. Scr. #10-24 x .5" Lg. MTD-710-0473
...
43
629 Rear Fender MTD-17425
...
44
BRACKET-LIGHT MTD-17223
...
45
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
46
Fl-Wash. .328" I.D. x .68" O.D. MTD-736-0278
...
47
Transmission Panel MTD-17401
...
48
Safety Switch MTD-925-0465A
...
49
Hex Nut #10-24 Thd. MTD-712-0121
...
50
Top Heat Shield MTD-17319
...
51
Front Heat Shield MTD-16934
...
52
Muffler MTD-751-0474
...
53
L-Wash. 5/16" I.D. (Special) MTD-736-0170
...
54
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
55
Side Cover R.H. MTD-17448
...
xx
Side Cover L.H. (Not Shown) MTD-17447
...
56
Double Ended Stud 1/4-20 Thd. MTD-710-1034
...
57
Trim Strip 12" Lg. MTD-731-0511-12
...
58
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
59
Throttle Control Box Ass'y. MTD-831-0823A
...
62
Lens-R.H. MTD-931-0948
...
63
Ignition Key MTD-725-1341B
...
64
Ignition Switch MTD-925-0267B
...
65
Dash Panel MTD-731-0957
...
66
Light Switch MTD-925-0634
...
67
Ammeter MTD-925-0925
...
68
Lens-L.H. MTD-931-0949
...
69
Ignition Switch Cap MTD-725-1347
...
xx
Seat - 14-1/4" High MTD-957-0350
...
71
Taillight Ass'y. MTD-725-3018
...
73
Ignition Switch Nut 5/8-32 MTD-925-1346
...
74
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
75
Truss Hd. AB-Tap Scr. #6 x .62" Lg. MTD-710-0936
...
77
Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg. MTD-710-0642
...
88
Fender Bracket R.H. MTD-15846
...
xx
Fender Bracket L.H. MTD-15847
...
97
Fl-Wash. .344" I.D. MTD-736-0159
...
104
Foot Pad MTD-731-1051
...
105
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
111
Speed Nut 1/4-20 Thd. MTD-712-0185
...
114
Solenoid MTD-925-1426A
...
115
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
116
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
xx
Steering Bellow - 9" (Not Shown) MTD-931-0954
...
...
...
