product name

MTD 140-843-000 (1990) Garden Tractor

Model: 140-843-000 (1990)

Save
 Part Not Listed?Part Not Listed?
product name

44" Rear Discharge Deck

...
...
1
Clevis Pin 1/4" Dia. x .53" Lg. MTD-911-0701
...
2
Hairpin Cotter 1/4" Dia. MTD-714-0104
...
3
Shld. Bolt .437" Dia. x .18" Lg. (5/1 6-1 8) MTD-738-0140
...
4
Spr. Wash. 7/16" I.D. MTD-936-0141
...
5
Spindle Brake Arm Ass'y. MTD-16339
...
6
Brake Cable Ass'y. (Deck) MTD-946-0237
...
7
PUSH NUT MTD-726-0106
...
8
Hex Jam Nut 5/8-18 Thd. MTD-712-0318
...
9
Bell-Wash. 5/8" I.D. x 1.25"O.D. MTD-736-0317
...
10
VBelt 1/2 x 56" Lg. MTD-954-0230
...
11
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
12
Belt Guard MTD-14258
...
13
Extension Spring MTD-732-0465
...
14
Bell-Wash..34" I.D. MTD-736-0242
...
15
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
16
Sprocket Pulley Ass'y. MTD-756-0334
...
17
Hex Bolt 5/16-24 x 1.0" Lg. (Grade 5) MTD-710-0888
...
18
Bearing Housing MTD-08253B
...
19
BALL BEARING MTD-941-0919B
...
20
Spindle Plate Ass'y. MTD-13868
...
21
L-Wash. 3/8" I.D. MTD-736-0169
...
22
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
23
44" R.D. Deck Ass'y. MTD-14251
...
24
Spacer MTD-750-0456
...
25
Lock Wash. 5/16" I.D. MTD-936-0119
...
26
Hex Nut 5/16-24 Thd. MTD-912-3057
...
27
SPINDLE (LH) MTD-738-0504
...
31
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
32
HHCS:3/8-24:.875:GR8:STD MTD-710-0696
...
33
22.5" Blade L.H. Rotation MTD-742-0216
...
34
Blade Adapter MTD-748-0235
...
35
Bearing Shield MTD-13703
...
37
Spacer 5/8" I.D. x 7/8" O.D. MTD-950-0932A
...
38
Deck Stabilizer MTD-17347-0637
...
39
BRACE-DIAGONAL MTD-17264
...
40
Fl-Wash. .5" I.D. x 1.0" O.D. x .090 MTD-736-0192
...
41
Cotter Pin 3132" Dia. x 1.00" Lg.* MTD-714-0111
...
42
Blade Spindle R.H. MTD-738-0505
...
43
Sq. Key 3/16" x .75" Lg. MTD-714-0122
...
44
Sq. Key 3/16" x 1.50" Lg. MTD-714-0133
...
45
Shoulder Spacer MTD-748-0279
...
46
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
48
Shld. Bolt 3/8-16 x 1.41 MTD-938-0455
...
49
Wheel Ass'y. Comp. 6" x 1.38" MTD-734-0974
...
51
Wheel Pivot Bar MTD-10937
...
52
Spring Lever Ass'y. w/Knob MTD-14082
...
53
Hex Bolt 3/8-24 x 1.25" Lg. (Grade 5) MTD-710-0191
...
54
Hex Cent. L-Nut 3/8-24 Thd. MTD-712-0214
...
56
CHAIN ADJUSTMENT LINK 5/16-18 x 4. MTD-710-0437A
...
57
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
58
Shld. Spacer .625" I.D. MTD-938-0347
...
59
Belt Idler Brkt. MTD-14256
...
60
Spacer, .380 x .625 x .255 MTD-750-04776
...
61
Fl-Wash. .38" I.D. x 1.37" O.D. x .1 25 MTD-736-0320
...
63
Spindle & Idler Mount Plate Ass'y. MTD-14254
...
64
HTD Twin Power Belt MTD-954-0260
...
65
Fl-ldler w/Flanges 3.50" O.D. MTD-956-0365
...
66
Bell-Wash. .38" I.D. MTD-736-0105
...
67
Hex Bolt 3/8-24 x 1.75" Lg. (Grade 5) MTD-710-0539
...
69
Bell-Wash. 5/8n I.D. MTD-736-0317
...
70
Hex Bolt 3/8-24 x 2" Lg. MTD-710-0151
...
71
Hex Insert L-Nut 5/16-18 Thd. MTD-712-0429
...
72
Fl-Wash. .344n I.D. x 1.125"O.D. x .125 MTD-736-0231
...
73
Shld. Spacer .625" I.D. MTD-938-0347
...
74
Spacer-Adj. Bolt MTD-750-0455
...
75
Compression Spring MTD-732-0377
...
77
N Belt Cover MTD-14253B
...
78
Deck Drive Pulley MTD-756-0375
...
79
Plate Deck Reinforcement MTD-09164A-0637
...
80
22.5" Blade R.H. Rotation MTD-742-0215
...
81
Fl-Wash. .38" I.D. x 1.0" O.D. MTD-936-0206
...
82
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
85
Open Bearing Housing MTD-15296A
...
86
Hairpin Cotter MTD-714-0145
...
87
Fl-Wash. 1/2" I.D. MTD-736-0192
...
90
Anti Scalp Plate MTD-07919B
...
91
Hex Nut 1/4-20 Thd. MTD-912-0287
...
92
L-Wash. 1/4" I.D. MTD-936-0329
...
93
Chute Deflector MTD-16411A
...
94
Truss Mach. Scr. 1/4-20 x .50"Lg. MTD-710-0286

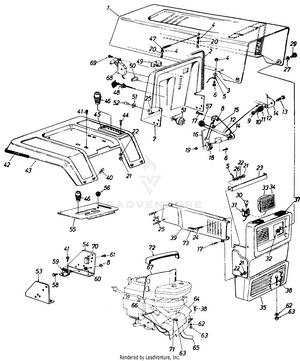

Style 3

...
...
1
Hood MTD-15808D
...
2
Trim Strip 31" Lg. MTD-731-0511
...
3
Fl-Wash. .20" I.D. x .41" O.D. MTD-736-0931
...
4
Hex Sems Nut #10-24 Thd. MTD-712-0272
...
5
Brake Cable 11.75" Lg. MTD-727-0290A
...
6
Truss Mach. Scr. #10-24 x .5" Lg. MTD-710-0473
...
7
Dash Ass'y. MTD-16550A
...
8
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
9
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
10
Fl-Wash. .281" I.D. x .73" O.D. MTD-736-0173
...
11
Rubber Washer .33" I.D. MTD-735-0126A
...
12
PTO Lever MTD-747-0513
...
13
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
14
Deck Clutch Control Brkt. MTD-13950A
...
15
PUSH NUT MTD-726-0106
...
16
Deck Control Rod MTD-747-0307
...
17
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
18
Safety Switch MTD-925-0465A
...
19
Hex Nut #10-24 Thd. MTD-712-0121
...
20
Hex Screw, #10-24 x 1.00 MTD-910-0749
...
21
Hex Nut 1/4-20 Thd. MTD-912-0287
...
22
L-Wash. 1/4" I.D. MTD-936-0329
...
23
Tie Strap Grille MTD-15931
...
24
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
25
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
26
Fl-Wash. .25" I.D. x.62" MTD-736-0463
...
27
Spr. Wash. .39" I.D. x .62" MTD-736-0413
...
29
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
30
Miniature Lamp 12V Socket Type MTD-925-0963
...
31
Headlight Socket MTD-925-1058A
...
32
Locking Flange Nut 1/4-28 Thd. MTD-712-0380
...
33
Headlight Housing MTD-931-0705
...
34
HEADLAMP LENS MTD-931-0706
...
35
Grille Ass'y. MTD-15804A
...
37
Foam Strip MTD-722-0157
...
38
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
39
Side Panel Ass'y. R.H. MTD-16469
...
xx
Side Panel Ass'y. L.H. (Not Shown) MTD-15815A
...
40
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
41
Hex Wash. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
42
Trim Strip 81" Lg. MTD-731-0511
...
43
Fender MTD-17426
...
44
Truss Mach. Scr. 1/4-20 x .62" Lg. MTD-710-0946
...
45
INDEX BRACKET 7-SPEED MTD-931-1774
...
46
Shift Knob MTD-720-0218
...
47
Hood Spring MTD-732-0462
...
48
Choke Control 44.0" Lg. MTD-946-0613A
...
49
Ammeter MTD-925-0925
...
50
Light Switch MTD-925-0634
...
51
Ignition Switch MTD-925-0267B
...
52
Key MTD-925-0201
...
53
Dash Support Brkt. R.H. MTD-15828C
...
54
Dash Support Brkt. - L.H. MTD-17294B-0637
...
55
Transmission Cover MTD-17399
...
56
Ball Knob MTD-720-0166
...
57
Knob MTD-920-0232
...
58
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
59
Solenoid MTD-925-0771
...
60
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
61
Hex Wash. Hd. Scr. 1/4 x .5" Lg. MTD-710-0599
...
62
Lock Wash. 5/16" I.D. MTD-936-0119
...
63
HEX NUT 5/16-18 MTD-712-3010
...
64
Front Heat Shield MTD-16934
...
65
Muffler MTD-751-0474
...
66
Trim Strip 10" Lg. MTD-731-0511
...
67
Top Shield MTD-15826
...
68
Throttle Control Box Ass'y. MTD-831-0823A
...
69
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
70
Circuit Breaker MTD-753-0685
...
71
Spec. L-Wash. 5/16" I.D. MTD-736-0170
...
72
PVC Foam MTD-722-0138
...
73
Rubber Strip MTD-735-0224
...
...
...
