product name

MTD 140-840-000 (1990) Garden Tractor

Model: 140-840-000 (1990)

Save
 Part Not Listed?Part Not Listed?
product name

44" Rear Discharge Deck

...
...
1
Clevis Pin 1/4" Dia. x .53" Lg. MTD-911-0701
...
2
Hairpin Cotter 1/4" Dia. MTD-714-0104
...
3
Shld. Bolt .437" Dia. x .18" Lg. (5/1 6-1 8) MTD-738-0140
...
4
Spr. Wash. 7/16" I.D. MTD-936-0141
...
5
Spindle Brake Arm Ass'y. MTD-16339
...
6
Brake Cable Ass'y. (Deck) MTD-946-0237
...
7
PUSH NUT MTD-726-0106
...
8
Hex Jam Nut 5/8-18 Thd. MTD-712-0318
...
9
Bell-Wash. 5/8" I.D. x 1.25"O.D. MTD-736-0317
...
10
VBelt 1/2 x 56" Lg. MTD-954-0230
...
11
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
12
Belt Guard MTD-14258
...
13
Extension Spring MTD-732-0465
...
14
Bell-Wash..34" I.D. MTD-736-0242
...
15
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
16
Sprocket Pulley Ass'y. MTD-756-0334
...
17
Hex Bolt 5/16-24 x 1.0" Lg. (Grade 5) MTD-710-0888
...
18
Bearing Housing MTD-08253B
...
19
BALL BEARING MTD-941-0919B
...
20
Spindle Plate Ass'y. MTD-13868
...
21
L-Wash. 3/8" I.D. MTD-736-0169
...
22
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
23
44" R.D. Deck Ass'y. MTD-14251
...
24
Spacer MTD-750-0456
...
25
Lock Wash. 5/16" I.D. MTD-936-0119
...
26
Hex Nut 5/16-24 Thd. MTD-912-3057
...
27
SPINDLE (LH) MTD-738-0504
...
31
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
32
HHCS:3/8-24:.875:GR8:STD MTD-710-0696
...
33
22.5" Blade L.H. Rotation MTD-742-0216
...
34
Blade Adapter MTD-748-0235
...
35
Bearing Shield MTD-13703
...
37
Spacer 5/8" I.D. x 7/8" O.D. MTD-950-0932A
...
38
Deck Stabilizer MTD-17347-0637
...
39
BRACE-DIAGONAL MTD-17264
...
40
Fl-Wash. .5" I.D. x 1.0" O.D. x .090 MTD-736-0192
...
41
Cotter Pin 3132" Dia. x 1.00" Lg.* MTD-714-0111
...
42
Blade Spindle R.H. MTD-738-0505
...
43
Sq. Key 3/16" x .75" Lg. MTD-714-0122
...
44
Sq. Key 3/16" x 1.50" Lg. MTD-714-0133
...
45
Shoulder Spacer MTD-748-0279
...
46
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
48
Shld. Bolt 3/8-16 x 1.41 MTD-938-0455
...
49
Wheel Ass'y. Comp. 6" x 1.38" MTD-734-0974
...
51
Wheel Pivot Bar MTD-10937
...
52
Spring Lever Ass'y. w/Knob MTD-14082
...
53
Hex Bolt 3/8-24 x 1.25" Lg. (Grade 5) MTD-710-0191
...
54
Hex Cent. L-Nut 3/8-24 Thd. MTD-712-0214
...
56
CHAIN ADJUSTMENT LINK 5/16-18 x 4. MTD-710-0437A
...
57
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
58
Shld. Spacer .625" I.D. MTD-938-0347
...
59
Belt Idler Brkt. MTD-14256
...
60
Spacer, .380 x .625 x .255 MTD-750-04776
...
61
Fl-Wash. .38" I.D. x 1.37" O.D. x .1 25 MTD-736-0320
...
63
Spindle & Idler Mount Plate Ass'y. MTD-14254
...
64
HTD Twin Power Belt MTD-954-0260
...
65
Fl-ldler w/Flanges 3.50" O.D. MTD-956-0365
...
66
Bell-Wash. .38" I.D. MTD-736-0105
...
67
Hex Bolt 3/8-24 x 1.75" Lg. (Grade 5) MTD-710-0539
...
69
Bell-Wash. 5/8n I.D. MTD-736-0317
...
70
Hex Bolt 3/8-24 x 2" Lg. MTD-710-0151
...
71
Hex Insert L-Nut 5/16-18 Thd. MTD-712-0429
...
72
Fl-Wash. .344n I.D. x 1.125"O.D. x .125 MTD-736-0231
...
73
Shld. Spacer .625" I.D. MTD-938-0347
...
74
Spacer-Adj. Bolt MTD-750-0455
...
75
Compression Spring MTD-732-0377
...
77
N Belt Cover MTD-14253B
...
78
Deck Drive Pulley MTD-756-0375
...
79
Plate Deck Reinforcement MTD-09164A-0637
...
80
22.5" Blade R.H. Rotation MTD-742-0215
...
81
Fl-Wash. .38" I.D. x 1.0" O.D. MTD-936-0206
...
82
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
85
Open Bearing Housing MTD-15296A
...
86
Hairpin Cotter MTD-714-0145
...
87
Fl-Wash. 1/2" I.D. MTD-736-0192
...
90
Anti Scalp Plate MTD-07919B
...
91
Hex Nut 1/4-20 Thd. MTD-912-0287
...
92
L-Wash. 1/4" I.D. MTD-936-0329
...
93
Chute Deflector MTD-16411A
...
94
Truss Mach. Scr. 1/4-20 x .50"Lg. MTD-710-0286

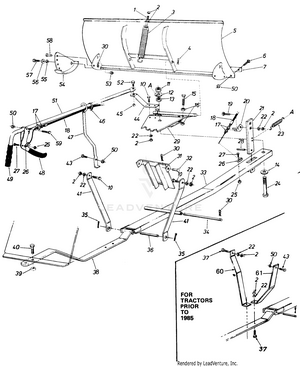

48" Snow Blade

...
...
1
Hex Scr. 3/8-16 x 4.50" Lg.* MTD-710-0693
...
2
HexNut 3/8-16 Thd.* MTD-712-0798
...
3
Blade AdjustmentSpring MTD-732-0359
...
4
Hairpin Clip 5/32"Dia. MTD-714-0117
...
5
48" Blade Ass'y. MTD-05741
...
6
Carriage Bolt 5/16-18 x .75" Lg.* MTD-710-0451
...
7
Wear Plate 48" MTD-05754
...
10
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
11
Hex L.-Nut 3/4-10Thd. MTD-712-0205
...
12
Fl.-Wash. .810" I.D. x 2.00" O.D. (Special) MTD-736-0306
...
13
Hex Jam Nut 3/4-10Thd.* MTD-712-0301
...
14
Fl.-Wash. .810" I.D. x 2.00" O.D. MTD-736-0306
...
15
Hex Scr. 1/2-13 x 2.00" Lg.* MTD-710-0489
...
16
HEX NUT MTD-712-0206
...
17
Hex Jam Nut 5/16- 0 0 24 Thd.* MTD-712-0256
...
18
Control Cable Ass'y. MTD-AF-49808P
...
19
Carriage Bolt 3/8-16 x 1-1/4" MTD-710-0431
...
20
Cable Guide Bracket MTD-05762
...
21
Angle Lock Bar MTD-AF-23151
...
22
L.-Wash. 3/8" I.D. MTD-736-0169
...
23
Angle Lock Spring MTD-AF-43348
...
24
Hex Scr. 3/4-10 x 4.00" Lg. (Special) MTD-710-0764
...
25
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
26
Clevis Lanyard Fitting MTD-746-0260
...
27
Hex Bolt 1/4-20 x .75" Lg. MTD-710-3015
...
28
Roll Pin 1/4" Dia. x 1.00" MTD-715-0114
...
29
Pivot Plate Ass'y. MTD-05764
...
30
Hairpin Clip 3/32" Dia. MTD-714-0101
...
31
Guide Bracket Ass'y. MTD-05751A
...
32
Clevis Pin 1 2" Dia. x 1.00" Lg. MTD-711-0310
...
xx
Clevis Pin, .62" Dia. MTD-711-0309A
...
33
Push Bar Ass'y. MTD-05744
...
34
LIFT SHAFT MTD-738-0454
...
35
Cotter Pin 1/8" Dia. x 1.00" Lg.* MTD-914-0121
...
36
Pivot Shaft MTD-738-0638
...
37
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
38
Hanger Bracket Ass'y. N MTD-05749A
...
39
Hex Jam L-Nut 5/8-11 Thd. MTD-912-0261
...
40
Hex Scr. 5/8-11 x 1.50" Lg.* MTD-710-0367
...
41
Hanger Link MTD-16367
...
43
Hex Bolt 5/16-18 x 1.00" Lg. MTD-710-0376
...
44
Blade Pivot Bracket MTD-05757
...
45
Hex L.-Nut 0 0 3/8-16 Thd. MTD-712-0375
...
46
Cable Tie MTD-725-0157
...
47
Tube Guide Ass'y. MTD-05761
...
48
Clutch Grip Ass'y. MTD-05639
...
49
Grip-3/4" Handle MTD-07071
...
50
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
51
Tube Handle Ass'y. MTD-05758
...
52
Shld. Scr.-Special 3/8-16 Thd. MTD-738-0234
...
53
Hex L.-Nut 3/8-16 Thd. MTD-712-0375
...
54
Skid Assembly MTD-05655
...
55
PIVOT BUSHING MTD-AF-42846
...
56
Fl.-Wash. .385" I.D. x 1.00" O.D. MTD-736-0258
...
57
Hex Scr. 3/8-16 x4 .75" Lg.* MTD-710-0216
...
58
Clevis Pin 5/16" Dia. x .75" Lg. MTD-711-0686
...
59
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
60
Mounting Brkt.-L.H. MTD-05755
...
61
Mounting Brkt-R.H. MTD-05756
...
...
...
