product name

MTD 13637A8 (1988) Lawn Tractor

Model: 13637A8 (1988)

Save
 Part Not Listed?Part Not Listed?
product name

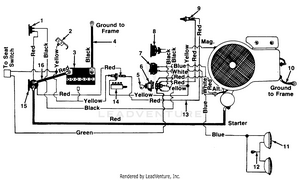

Electrical

...
...
1
Circuit Breaker MTD-753-0685
...
2
Spring Switch (Reverse Safety) MTD-725-0759
...
3
Battery 12V MTD-753-0607
...
4
Grounding Wire 9.0" Lg. (Black Negative) MTD-725-0975
...
5
Key MTD-925-0201
...
6
Ignition Switch MTD-925-0267B
...
7
Light Switch MTD-925-0634
...
8
Ammeter (13565 Only) MTD-925-0925
...
9
Safety Switch (Clutch) MTD-725-0577
...
10
Ground Wire 7.25" Lg. (Black Engine) MTD-725-0976
...
11
Head Light MTD-925-0222
...
12
Ground Wire (Headlight) MTD-725-0916A
...
13
Wire Harness MTD-725-1187
...
14
Safety Switch (P.T.O.) MTD-725-0803B
...
15
Solenoid MTD-925-0771
...
16
Electric Wire w/Boot (Red Positive) MTD-725-0926

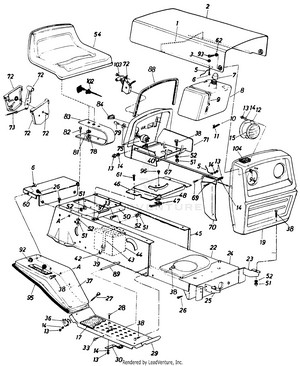

Lawn

...
...
1
Hood Spring MTD-732-0414
...
2
Hood MTD-14665
...
3
Hex Sems Nut #10-24 Thd. MTD-712-0272
...
5
Hood Stop 7" Lg. MTD-723-0302
...
6
Truss Hd. Scr. #10-24 x 1/2" MTD-710-0473
...
7
Fuel Cap Gauge MTD-723-0333
...
8
Fuel Tank MTD-753-0503
...
9
Cable Tie MTD-726-0230
...
10
Fuel Line MTD-751-10349-16
...
11
Hose Clamp MTD-726-0207
...
12
Headlight Retainer MTD-09960
...
13
Hex Nut 1/4-20 Thd. MTD-912-0287
...
14
L-Wash. 1/4" I.D. MTD-936-0329
...
15
Head Light MTD-925-0222
...
17
Foot Pad (Optional) MTD-723-0360
...
19
Grille Ass'y. MTD-14781
...
22
Lower Frame MTD-15930
...
23
Grille Mount Brkt. L.H. MTD-13863
...
24
Front Pivot Brkt. MTD-14619
...
25
Grille Mount Brkt. R.H. MTD-13862
...
26
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
27
Carriage Bolt 1/4-20 x 2.0 MTD-710-0495
...
28
Carriage Bolt 1/4-20 x .62" MTD-710-0134
...
29
Running Board (R.H. & L.H.) MTD-14604
...
30
Blade Brake Assembly MTD-961-0168D
...
33
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
36
Fender Clamp MTD-14671
...
37
Fender (R.H.) MTD-16197
...
xx
Fender (L.H.) MTD-14666
...
38
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
39
R.H. Side Frame MTD-14602G-0637
...
40
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
42
Battery Strap Hook MTD-747-0475
...
43
Battery Hold Down Strap MTD-731-0718
...
44
Battery 12V MTD-753-0607
...
45
L.H. Side Frame MTD-14603
...
46
Shift Cover MTD-16433
...
47
Reverse Safety Switch MTD-725-0759
...
48
Insulatop Nut Plate MTD-926-0320
...
50
Hitch Plate MTD-14607
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
Lock Wash. 5/16" I.D. MTD-936-0119
...
54
Seat Ass'y. MTD-757-0322
...
60
Fender Panel MTD-14789
...
61
Truss Mach. Tap Scr. #10 x .50" Lg. MTD-710-0351
...
62
Washer .39" I.D. x .62" MTD-736-0413
...
67
Grille Support Rod (R.H. & L.H.) MTD-749-0517
...
69
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
70
R.H. Grille Side Panel MTD-14748
...
xx
L.H. Grille Side Panel MTD-14749
...
71
Dash Panel Ass'y. MTD-15935
...
72
Throttle Control Box Ass'y. MTD-831-0823A
...
73
Throttle Control Wire MTD-746-0501
...
75
Ignition Switch MTD-925-0267B
...
78
HEX NUT MTD-712-0206
...
79
Key MTD-925-0201
...
81
L-Wash. 1/2" I.D. MTD-736-0921
...
82
Hex Bolt 5/16-18 x 1.0" MTD-710-0376
...
83
Seat Spring 5.5" High MTD-732-0458
...
84
Light Switch MTD-925-0634
...
88
Molding Strip 27" Lg. MTD-731-0511
...
89
Running Board Rod MTD-738-0526
...
92
Hex Sems Nut #10-24 Thd. MTD-712-0272
...
93
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
94
L-Nut 1/4-28 Thd. MTD-712-0380
...
95
Trim Strip 57" Lg. MTD-731-0511
...
96
Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg. MTD-710-0227
...
97
Speed Nut #10Z MTD-726-0139
...
102
CHOKE CONTROL 29" MTD-946-0615A
...
103
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
104
Foam Strip 3/8 x 1-1/8 X 1-1/2 MTD-722-0157
...
...
...
