MTD 135-716-000 (1985) Lawn Tractor

Model: 135-716-000 (1985)

Save
 Part Not Listed?Part Not Listed?
product name

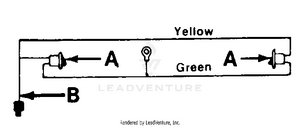

Electrical System

...
...
A
Safety Switch (Grass Catcher) MTD-725-0713
...
B
Wire Lead MTD-725-0881

Parts10

...
...

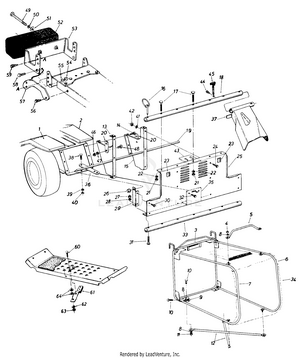

1
Fender L.H. MTD-15350
...
2
Fender R.H. MTD-16198
...
3
Grass Catcher Frame Ass'y. MTD-15370
...
4
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
5
Grass Catcher Handle MTD-749-0654
...
6
Catcher Side Frame Ass'y.-R.H. MTD-15992
...
7
Catcher Side Frame Ass'y.-L.H. MTD-15993
...
8
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
9
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
10
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
11
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
12
Bottom Cross Brace MTD-749-0652
...
13
Grass Catcher Support Brkt.-L.H. MTD-15363
...
14
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg. MTD-710-0726
...
15
Grass Catcher Support Brkt.-R.H. MTD-15364
...
16
Click Pin MTD-714-0143A
...
17
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
18
Grass Catcher Support Tube MTD-749-0578
...
19
Tubing .38" I.D. x 39.75" Lg. MTD-749-0576
...
20
Fender Support Brkt. MTD-16330
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Lock Wash. 5/16" I.D. MTD-936-0119
...
23
Safety Switch MTD-725-0713
...
24
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
25
Grass Catcher Adapter MTD-15369
...
26
Cap Speed Nut 1/2" Rod MTD-726-0221
...
27
HEX NUT 5/16-18 MTD-712-3010
...
28
Lock Wash. 5/16" I.D. MTD-936-0119
...
29
Chute Extension Support Brkt.-L.H. MTD-15361
...
xx
Chute Extension Support Brkt.-R.H. (Not Shown) MTD-15362
...
30
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
31
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
32
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
33
Tubing 1.00" I.D. x 40.25" MTD-749-0584
...
34
Grass Catcher Bag MTD-764-0211
...
35
Hitch Bracket MTD-15459
...
36
Hitch Plate MTD-05400
...
37
Chute Deflector Ass'y.-R.H. MTD-15366
...
xx
Chute Deflector Ass'y.-L.H. (Not Shown) MTD-15365
...
38
Hex Bolt 1/2-13 x 1.00" Lg. MTD-710-3131
...
39
L-Wash. 1/2" I.D. MTD-736-0921
...
40
Hex Jam Nut 1/2-13 Gr 5 MTD-712-3048
...
41
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
42
Hex Nut 1/4-20 Thd. MTD-912-0287
...
43
Grass Catcher Support Plate MTD-15995
...
44
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
45
Spring Latch Ass'y. MTD-723-0296
...
46
Hex Nut 1/4-20 Thd. MTD-912-0287
...
47
L-Wash. 1/4" I.D. MTD-936-0329
...
48
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
49
Hex Bolt 3/8-16 x 4.50" Lg. MTD-710-0693
...
50
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
51
Flat Washer, .395 x 1.12 x .14 MTD-736-04005
...
52
Front Counterweight MTD-723-0367
...
53
Weight Bracket Ass'y. MTD-15873
...
54
Hex Jam Nut 7/16-20 MTD-912-0240
...
55
L-Wash. 7/16" I.D. MTD-736-0171
...
56
Hex Wash. AB-Tap Scr. 5/16 x 1.0" Lg. MTD-710-0915
...
57
Weight Brkt. Tie Strap MTD-16024
...
58
Hex Bolt 7/16-20 x 1.0" Lg.* MTD-710-0314
...
59
Hex Wash. AB-Tap Scr. 5/16 x 1.0" Lg. MTD-710-0915
...
60
Carr. Bolt 1/4-20 x .62" Lg. MTD-710-0134
...
61
Blade Brake Assembly MTD-961-0197
...
62
L-Wash. 1/4" I.D. MTD-936-0329
...
63
Hex Nut 1/4-20 Thd. MTD-912-0287
...
64
Fl-Wash. .28" I.D. x .75" O.D. MTD-736-0173

Parts11

...
...

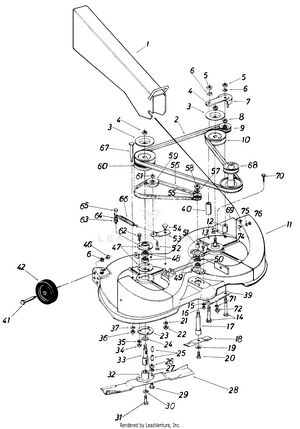

1
Chute Extension Ass'y.-L.H. MTD-16083
...
xx
Chute Extension Ass'y.-R.H. (Not Shown) MTD-16084
...
2
HEX BELT 1/2X84 MTD-954-0270
...
3
Brake Disc MTD-09322
...
4
Hex Jam L-Nut 5/8-11 Thd. MTD-912-0261
...
5
Jam Nut, 3/8-16 MTD-912-3008
...
6
L-Wash. 3/8" I.D.* MTD-736-0169
...
7
Idler Pulley Belt Guard Ass'y. MTD-15877
...
8
Jam Nut, 3/8-16 MTD-912-3008
...
9
Idler Pulley MTD-956-0399
...
10
5/8-V Pulley-.628" I.D. x 5.25" O.D. MTD-756-0397
...
11
40" Rear Discharge Deck MTD-16075
...
12
Spacer.40" I.D. x 1.25" O.D. x 1.59" Lg. MTD-750-0586
...
13
Hex Bolt 1/4-28 x 50" Lg. MTD-910-0195
...
14
SCREW 3/8-16 x 3.75 GR5 MTD-710-04576
...
15
L-Wash. 1/4" I.D. MTD-936-0329
...
16
Hex Nut 1/4-28 Thd.* MTD-712-0138
...
17
Blade Spindle MTD-738-0557
...
18
6.50" Blade MTD-742-0252
...
19
Bell-Wash. .40" I.D. x .88"O.D. MTD-736-0105
...
20
HHCS:3/8-24:.875:GR8:STD MTD-710-0696
...
21
L-Wash. 3/8" I.D.* MTD-736-0169
...
22
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
23
Plate Deck Reinforcement MTD-09164A-0637
...
24
Bearing Shield MTD-13703
...
25
#6 Hi-Pro Key 5/32 x 5/8" Dia. MTD-714-0365
...
26
Hex Nut 5/16-24 Thd. MTD-912-3057
...
27
Lock Wash. 5/16" I.D. MTD-936-0119
...
28
20" High Lift Blade-R.H. MTD-742-0254
...
xx
20" High Lift Blade-L.H. (Not Shown) MTD-742-0253
...
29
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) MTD-710-0888
...
30
L-Wash. 3/8" I.D. Heavy Duty MTD-736-0217
...
31
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
32
Blade Adapter Kit MTD-10769
...
33
Blade Spindle MTD-738-0396
...
34
HEX NUT 5/16-18 MTD-712-3010
...
35
Lock Wash. 5/16" I.D. MTD-936-0119
...
36
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
37
L-Wash. 3/8" I.D.* MTD-736-0169
...
39
Reinforcement Plate MTD-15878
...
40
Spacer 3/8" I.D. x .50" O.D. x 2.72" MTD-750-0593
...
41
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373
...
42
PLASTIC WHEEL 5X1.38 MTD-734-0973
...
46
Jam Nut, 3/8-16 MTD-912-3008
...
47
Bearing Housing MTD-08253B
...
48
BALL BEARING MTD-941-0919B
...
49
Bearing Housing MTD-15319B
...
50
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
51
Spacer.63" I.D. x .88" O.D. x 1.25" Lg. MTD-750-0182
...
52
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
53
Idler Bracket MTD-15358
...
54
Shld. Bolt .625" Dia. x .170" Lg. MTD-738-0281
...
55
3/8" V-Pulley .628" I.D. x 2.00" O.D. MTD-756-0406
...
56
Grass Bag MTD-954-0271
...
57
Bell-Wash. .63" I.D. x 1.05" O.D. MTD-736-0317
...
58
HEX NUT MTD-712-3015
...
59
Idler Pulley MTD-756-1035A
...
60
Double Pulley MTD-756-0398
...
61
Hex Top L-Jam Nut 3/8-16 Thd. MTD-712-0181
...
62
HEX BOLT 5/16-18 x 1 LG.* MTD-710-0322
...
63
L-Wash. 1/4" I.D. MTD-936-0329
...
64
Hex Nut 1/4-20 Thd. MTD-912-0287
...
65
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
66
Extension Spring 3.97" Lg. MTD-932-0429A
...
67
Shoulder Screw MTD-938-0481A
...
68
Two Step Engine Pulley MTD-756-0428
...
69
Inner Chute Extension-L.H. MTD-16081
...
xx
Inner Chute Extension-R.H. (Not Shown) MTD-16082
...
70
Hex Bolt 1/4-28 x 50" Lg. MTD-910-0195
...
71
L-Wash. 1/4" I.D. MTD-936-0329
...
72
Hex Nut 1/4-28 Thd. MTD-712-0138
...
74
Shld. Scr. .500" Dia. x .218 MTD-738-0183
...
75
L-Wash. 3/8" I.D. MTD-736-0169
...
76
Jam Nut, 3/8-16 MTD-912-3008
...
...
...
