product name

MTD 12A-26JC006 (2010) Self Propelled Mower

Model: 12A-26JC006 (2010)

Save
 Part Not Listed?Part Not Listed?
product name

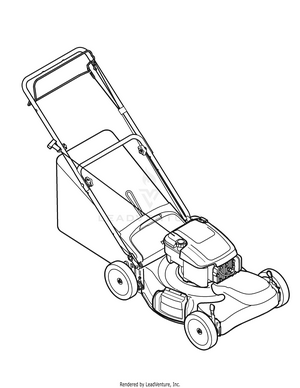

.Quick Reference 12A-26JC

...
...
xx
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
xx
Pre Filter MTD-NA
...
xx
Air Filter MTD-951-10732
...
xx
FUEL FILTER MTD-951-12296A
...
xx
Fuel Cap MTD-951-10300
...
xx
ERS Control Cable MTD-946-04300
...
xx
Drive Control Cable MTD-946-04304
...
xx
Choke Cable MTD-NA
...
xx
Belt MTD-954-04100
...
xx
Blade Adapter MTD-687-02555
...
xx
Blade MTD-942-0742A
...
xx
Blade Bell Support MTD-732-1026
...
xx
Blade Bolt MTD-710-1044
...
xx
Wheel MTD-634-0190A
...
xx
Wheels - Rear MTD-734-1987
...
xx
Trailshield MTD-731-06952
...
xx
Discharge Chute MTD-710-1044
...
xx
Mulch Plug MTD-631-04045
...
xx
Grass Bag MTD-NA
...
xx
Grass Bag Frame MTD-NA
...
xx
Key MTD-NA
...
xx
Key Switch MTD-NA
...
xx
Battery MTD-NA
...
xx
Battery Charger MTD-NA

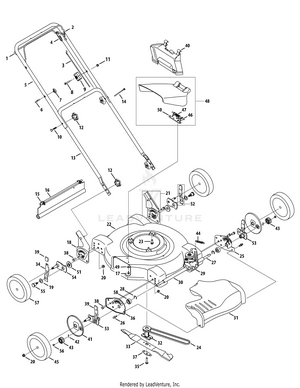

General Assembly 12A-26JC

...
...
1
Drive Control MTD-747-1214
...
2
Blade Control MTD-747-1161A-0637
...
3
ERS Control Cable MTD-946-04300
...
4
Drive Control Cable MTD-946-04304
...
5
Upper Handle MTD-749-1092A-0637
...
6
Eye Bolt MTD-710-1205
...
7
Wing Nut, 1/4-20 MTD-720-0279
...
8
Hex Screw, 1/4-20 x 1.50 MTD-710-0606
...
9
Cable Mount MTD-731-06749
...
10
Carriage Bolt, 5/16-18 x 2.0 MTD-710-1174
...
11
Flange Lock Nut, 1/4-20 MTD-712-04064
...
12
Star Knob MTD-720-04072A
...
13
Lower Handle MTD-749-04037
...
14
Cable Tie MTD-725-0157
...
15
Hinge Clip MTD-732-04631A
...
16
Trail Shield MTD-731-06952
...
17
Hex Screw, 1/4-20 x.500 MTD-710-0599
...
18
Handle Bracket Assy - RH MTD-682-3064-0637
...
19
Bell Washer, .760 x 1.25 x.041 MTD-736-0741
...
20
Lock Nut, 3/8-16 MTD-712-04065
...
21
Handle Bracket Assembly - LH MTD-682-3065-0637
...
22
22" Deck Assembly MTD-687-02046-0638
...
23
Hex Washer Scr., 3/8-16 x 1.0 MTD-710-0654A
...
24
V-Belt, 3L x 32.90 MTD-954-04100
...
25
Forward Height Adj. Plate - LH MTD-782-0585A-0637
...
26
Rivet MTD-728-0199
...
27
Sleeve Spacer, .550 ID x 2.22 MTD-750-04407
...
28
Retainer Ring MTD-716-0198
...
29
Transmission Assy. Comp. MTD-918-04375B
...
30
Sleeve Spacer, .550 ID x 8.51 MTD-750-04406A
...
31
Transmission Cover MTD-731-0073
...
32
Blade Adapter MTD-687-02555
...
33
22" Mulching Blade MTD-942-0742A
...
34
Spring Lever MTD-732-1026
...
35
Screw, 3/8-24 x 1.5 MTD-710-1044
...
36
Forward Hght. Adj. Plate - RH MTD-782-0584-0637
...
37
BLADE BELL SUPPORT MTD-736-0524B-1
...
38
Hex Cap Screw, 3/8-16 x.75 MTD-710-0216
...
39
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
40
Mulch Plug MTD-631-04045
...
41
Wheel Dust Cover MTD-731-04643
...
42
Pin MTD-915-0221
...
43
Spur Gear 14T - RH MTD-717-1762
...
43
Spur Gear 14T - LH MTD-717-1761
...
44
Ext. Spring, .47 OD x 2.50 MTD-732-04049
...
45
Wheel MTD-634-0190A
...
46
Hinge Pin MTD-747-0710A
...
47
Torsion Spring MTD-732-1014C
...
48
Side Discharge Assembly MTD-931-1034B
...
49
SPRING WASHER BELL MTD-736-0270
...
50
Deflector Chute Adapter MTD-17032A
...
51
Height Adjustment Bearing MTD-741-04242
...
52
Lever Ass'y MTD-687-02051
...
53
Front Lever Assembly - RH MTD-987-02140A
...
53
Front Lever Assembly - LH MTD-987-02141A
...
54
Rear Pivot Arm Assembly MTD-687-02342
...
55
Shoulder Screw, 3/8-16 MTD-738-1173
...
56
Screw, 1/4-20 x .390 MTD-710-04531
...
57
Rear Wheel MTD-734-1987
...
58
Bearing Support Spacer MTD-748-0390

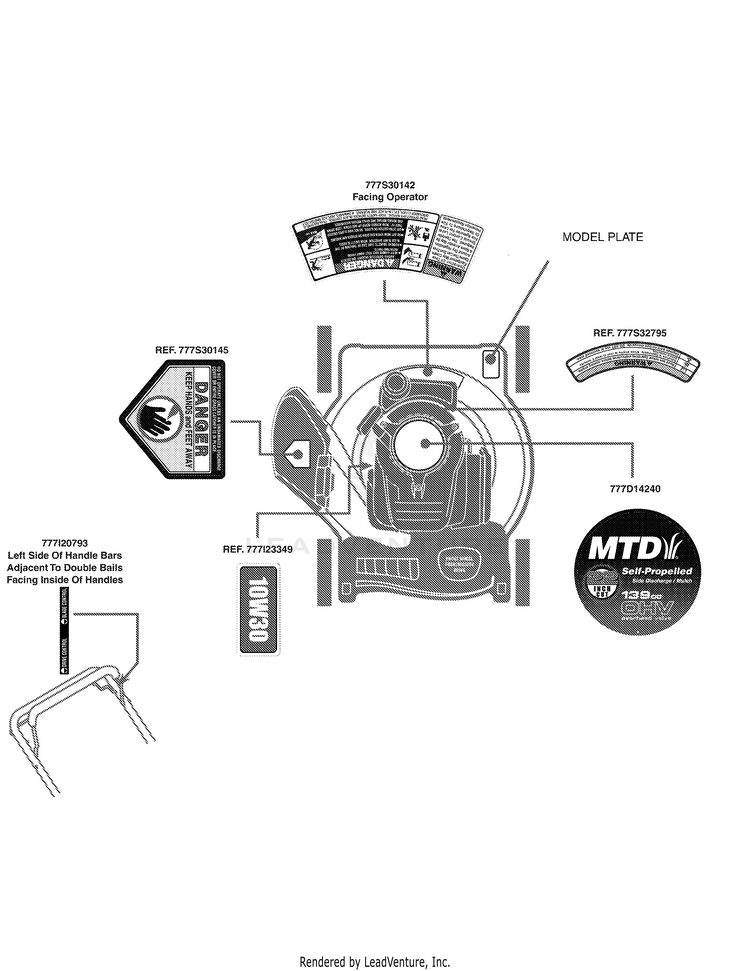

Label Map 12A-26JC006

...
...
777S30145
LABEL MTD-977S30145
...
777I20793
LABEL-HANDLE MTD-777I20793
...
777I23349
LABEL-10W30 MTD-777I23349
...
777D14240
LABEL-MWR:SHD:MO:MTD:139/SM/SP MTD-777D14240
...
777S32795
LABEL MTD-777S32795
...
777S30142
LABEL-DANGER CURVE MTD-777S30142
...
...
...
