MTD 129-352R000 (1989) Self Propelled Mower

Model: 129-352R000 (1989)

Save
 Part Not Listed?Part Not Listed?
product name

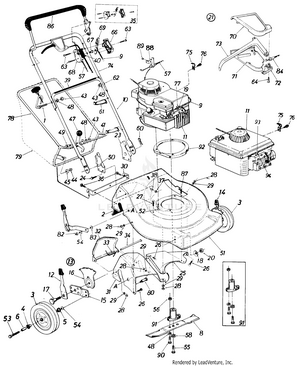

Parts

...
...
1
Rope Guide Bolt MTD-710-0842B
...
2
Rear Flap Ass'y. MTD-731-0665
...
3
Front Wheel Ass'y. Comp. MTD-734-0636
...
4
BALL BEARING MTD-941-0484
...
5
Flanged Ball Brg. 3/8" I.D. MTD-741-0267
...
6
Spacer 3/8" I.D. MTD-750-0434
...
8
20" Blade MTD-742-0123B
...
9
Throttle Wire-58" Lg. MTD-946-0674A
...
10
Lower Handle MTD-749-0907B
...
11
Engine MTD-NA
...
12
Front Spring Lever MTD-94832
...
13
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
14
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
15
Pivot Bar MTD-15262B
...
16
Height Adjustment Plate MTD-787-01290A
...
17
Shld. Bolt .50" Dia. x .357" MTD-738-0507B
...
18
Bell Washer .39" I.d. x 1.38" O.D. MTD-936-0356
...
19
Hex Self-Tap Scr. #8 x .38" Lg. (352R) MTD-710-0227
...
20
Hex Nut 3/8-16 Thd. MTD-712-0798
...
21
Clutch Control Housing Comp. MTD-753-0362
...
23
Handle Brkt. Ass'y.-L.H. MTD-12297
...
24
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
25
Rear Baffle-L.H. MTD-13405A
...
26
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
27
Hex Bolt 1/4-20 x .88" Lg. MTD-710-0206
...
28
Hex Nut 1/4-20 Thd. MTD-912-0287
...
29
L-Wash. 1/4" I.D. MTD-936-0329
...
30
Grass Catcher Hitch Brkt. MTD-14012
...
31
Rear Chute Baffle Ass'y. MTD-14235
...
32
Chute Door MTD-13407
...
33
Torsion Spring MTD-732-0346
...
34
Hinge Pin MTD-738-0386
...
35
Kit-Control Housing Comp. MTD-753-0430
...
36
Carriage Bolt 1/4-20 x .75"* MTD-710-0703
...
37
Sems Nut 1/4-20 Thd. MTD-712-0271
...
38
Fl-Wash. .285" I.D. x 1.25" O.D. MTD-736-0211
...
39
Instruction Label MTD-777-5776
...
40
Control Label MTD-777-5773
...
41
Grass Catcher Lower Frame Ass'y. MTD-13924
...
43
HEX NUT 5/16-18 MTD-712-3010
...
44
Push Nut 3/8" Rod MTD-726-0100
...
45
Plastic Roller MTD-731-0430
...
47
Cam Lever Ass'y. MTD-13435
...
48
Lock Wash. 5/16" I.D. MTD-936-0119
...
49
Shld. Bolt .437" Dia. x .180" MTD-738-0140
...
50
Handle Brkt. Ass'y.-R.H. MTD-12296B-0637
...
51
20" Deck Ass'y. MTD-16109
...
52
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg. MTD-710-0654A
...
53
Hex Bolt 3/8-16 x 1.75" Lg. MTD-710-0347
...
54
Bell-Wash. .44" I.D. x .88" O.D. MTD-736-0105
...
55
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) MTD-710-0331
...
56
Hex Nut 5/16-24 Thd. MTD-912-3057
...
57
Clutch Control Cable 45" Lg. MTD-946-0477A
...
58
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
60
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
61
Cable Tie MTD-725-0157
...
62
Curved Hd. Carriage Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
63
Truss Mach. Scr. #12 x 1.50" Lg. MTD-710-0796
...
64
Flat "C"-Sunk Hd. Scr. #10 x 1.0" Lg. MTD-710-0841
...
66
Control Panel Half MTD-731-0817
...
67
Control Disc Pin MTD-731-0524
...
68
Clutch Panel Half MTD-731-0816
...
69
Throttle Control Lever MTD-931-0972
...
70
Control Cover Half-Upper MTD-731-0617A
...
71
Control Cover Half-Lower MTD-753-0833
...
72
Cable Mtg. Cap MTD-731-0619
...
73
Drive Control MTD-731-0620A
...
74
Upper Handle MTD-749-0439E-0637
...
75
Casing Clamp MTD-12894A
...
76
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
77
Casing Clamp (352R) MTD-751-0369
...
78
Grass Catcher Upper Frame MTD-749-0278
...
79
Grass Catcher Bag MTD-764-0170B
...
80
Shld. Bolt .500" Dia. x .685" MTD-738-0430
...
82
Jam Nut, 3/8-16 MTD-912-3008
...
83
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
84
Clutch Cable-50" MTD-746-0463A
...
86
Control Handle Ass'y.-L.H. MTD-731-0609
...
87
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
88
Cable Brkt. MTD-14924
...
89
Pop Rivet MTD-728-0171
...
90
Hex Bolt 5/16-24 x 1.0" Lg. Special MTD-710-0888
...
91
Blade Adapter Kit MTD-753-0348
...
92
Engine Mount Cover MTD-13773A
...
93
Casing Clamp (359R) MTD-751-0463
...
94
Hex Wash. Hd. Self-Tap Scr. (359R) MTD-710-0651
...
xx
Grass Catcher Comp. MTD-190-006-000

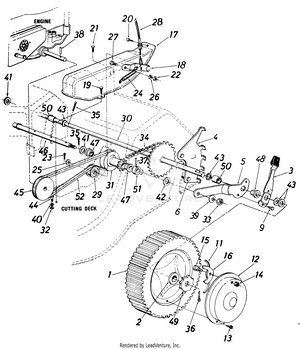

Parts

...
...
1
Rear Wheel Ass'y. Comp. MTD-734-1411
...
2
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
3
Spring Lever w/Knob MTD-732-0467
...
4
Index Plate-L.H. MTD-16097
...
xx
Index Plate-R.H. (Not Shown) MTD-16098
...
5
Pivot Brkt.-L.H. MTD-16099
...
xx
Pivot Brkt.-R.H. (Not Shown) MTD-16100
...
6
Hex Wash. Hd. Tap Scr. 1/4 x 62n Lg. MTD-710-0892
...
9
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
11
Nylon Spring MTD-10622B
...
12
Hub Cap MTD-10647
...
13
Pan Hd. Tap Scr. #12 x .50" MTD-710-0748
...
14
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
15
Shld. Bolt .342" Dia. x .268 MTD-738-0137
...
16
Pawl LH MTD-948-0188B
...
17
456/N Belt Cover MTD-12309C
...
18
Idler Bracket Ass'y. MTD-13415
...
19
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
20
Hex Drilling Scr. #10 x .50" MTD-710-0456
...
21
Hex TT-Tap Scr. 1/4-20 x .75" MTD-710-0642
...
22
Hex Nut 1/4-20 Thd. MTD-912-0287
...
23
Cotter Pin 1/8" Dia. x 1" MTD-714-0115
...
24
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
25
Fl-Wash. .531" I.D. x .930" MTD-736-0160
...
26
L-Wash. 1/4" I.D. MTD-936-0329
...
27
SHOULDER SCREW MTD-938-0255
...
28
Clutch Cable-50" MTD-746-0463
...
29
Flat Idler-Plastic MTD-756-0360
...
30
Rear Shaft Ass'y. MTD-11866
...
31
Pulley w/9 Tooth Sprocket Ass'y. MTD-756-0191
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Jam Nut, 3/8-16 MTD-912-3008
...
34
#48 Chain Pitch x 32 Links (Endless) MTD-913-0144
...
xx
Master Link MTD-713-0122
...
35
Cotter Pin 3/32" Dia. x 1." MTD-714-0111
...
36
Cotter Pin 1/8" Dia. x 1" MTD-714-0115
...
37
Spring Pin Spir. 3/16" Dia. x 1.00" Lg. MTD-715-0120
...
38
Spring Pin Spir. 3/16" Dia. x 1.50" Lg. MTD-715-0144
...
39
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
40
Lock Wash. 5/16" I.D. MTD-936-0119
...
41
Fl-Wash. .531" I.D. x .930" MTD-736-0160
...
42
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
43
Fl-Wash. .510" I.D. x 1.0" O.D. MTD-736-0326
...
44
Shoulder Bolt .437" Dia. x .35 Lg. 5/16-18 Thd. MTD-938-0141
...
45
Engine Pulley MTD-756-0384
...
46
Pulley Shaft 9.18" Lg. MTD-738-0385
...
47
Flange Brg. .506" I.D. Plastic MTD-741-0248
...
48
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
49
Rachet MTD-748-0187
...
50
Spacer .765" I.D. x .960" Lg. MTD-750-0190
...
51
Spacer. 505" I.D. x .44" Lg. MTD-750-0387
...
52
V-Belt MTD-954-0935
...
...
...
