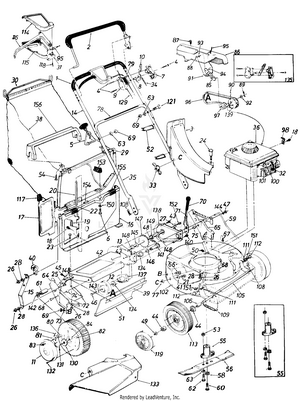

MTD 128-216R000 (1988) Self Propelled Mower

Model: 128-216R000 (1988)

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
Grip MTD-718-0145
...
2
Control Handle Assembly MTD-731-0609
...
3
Top Discharge Chute Assembly MTD-731-0733
...
4
Truss Machine Screw #12 x 1.5 " MTD-710-0796
...
5
Rope Guide Bolt MTD-710-0842
...
6
Hex Tap Screw 1/4-20 x 75 " MTD-710-0875
...
7
Control Panel Half MTD-731-0817
...
8
Control Disc Pin MTD-731-0524
...
9
Clutch Panel Half MTD-731-0816
...
10
Throttle Control Lever MTD-931-0972
...
11
Hub Cap (Rear) MTD-10647
...
12
1/2" V Pulley MTD-756-0459
...
13
Cotter Pin 3/32" Diameter x 75"* MTD-714-0507
...
14
Upper Handle MTD-749-0437
...
15
Panel Support Brkt. MTD-16129A-0637
...
16
Top Catcher Panel Assembly MTD-17196
...
17
Top Door MTD-17095
...
18
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
19
Torsion Spring MTD-732-0483A
...
20
Pivot Pin MTD-747-0514
...
21
Carriage Bolt 1/4-20 x .62 "* MTD-710-0134
...
22
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
23
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
24
Shoulder Bolt MTD-738-0704
...
25
Hex Bolt 1/4-20 x 62"* MTD-710-0258
...
26
Hex Nut 1/4-20 Thd. MTD-912-0287
...
27
SPRING WASHER BELL MTD-736-0270
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
29
Front Grass Catcher Frame MTD-16702
...
30
Grass Catcher Handle MTD-747-0495
...
31
Control Cover MTD-731-0619
...
32
Spark Plug Insulator MTD-735-0639
...
33
Wing Nut MTD-712-0397A
...
34
Throttle Wire-58" Lg. MTD-946-0674A
...
35
Lower Handle MTD-749-0907B
...
36
Engine MTD-NA
...
38
21 " Top Discharge Grass Bag MTD-764-0212
...
39
Retaining Strip MTD-14835
...
40
Rope Guide MTD-719-0279
...
41
Flat Washer .344" I.D. x .62 " MTD-736-0204
...
42
Chain Axle Assembly MTD-16121
...
43
Hex B-Tap Screw 1/4" x .38 " MTD-710-0352
...
44
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
46
Hex TT-Tap Screw 1/4-20 MTD-710-0875
...
47
Hex L-Nut 3/8-24 Thd. MTD-912-0296
...
48
#48 Chain 5" Pitch x 30 Links MTD-713-0353
...
49
Hex Lock Nut 1/2-20 Thread MTD-712-0346
...
50
Plug MTD-731-0564
...
51
Rear Flap 3.75" x 17.30" Lg. MTD-731-0672A
...
52
Cable Tie MTD-725-0157
...
53
Hex Nut 5/16-24 Thd. MTD-912-3057
...
54
Hex AB-Tap Screw MTD-710-0969
...
55
Blade Adapter Kit MTD-753-0348
...
56
21" Blade MTD-742-0307
...
58
Lock Washer 3/8" I D. MTD-736-0217
...
59
Height Adjustment Rod MTD-747-0510
...
60
Hex Bolt 3/8-24 x 2 25" (Grade 5) MTD-710-0331
...
61
Spacer 51" I D. MTD-748-0190
...
62
Hex Bolt 5/16-24 x 1 0" (Grade 5) MTD-710-0888
...
63
Lock Wash. 5/16" I.D. MTD-936-0119
...
64
R.H. Handle Wheel Bracket Assembly MTD-16136
...
65
L.H. Handle Wheel Bracket Assembly MTD-16137
...
66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
67
Hex B-Tap Screw 5/16-18 MTD-710-0603
...
68
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
Grip MTD-720-0223
...
71
Height Adj. Lever MTD-732-0473B
...
72
Extension Spring MTD-732-0481
...
73
Belleville Washer 5/16" I D. MTD-736-0242
...
74
Spacer 385" I.D. MTD-750-0526
...
75
Shoulder Spacer MTD-750-0624
...
77
Bolt Retainer MTD-726-0233
...
78
Instruction Label MTD-777-5776
...
79
Control Label MTD-777-5773
...
80
Shoulder Bolt MTD-738-0137
...
81
Pawl LH MTD-948-0188B
...
82
Rear Wheel Assembly Complete MTD-734-1411
...
83
Hex Lock Nut 1/4-20 Thread MTD-712-0324
...
84
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
85
Belt Idler Bracket Assembly MTD-16134
...
86
Belt Cover MTD-16146
...
87
Hex Self-Tap Screw 1/4-20 x 50 " MTD-710-0599
...
88
Hex Nut 1/4-20 Thd. MTD-912-0287
...
89
Cotter Pin 1/8" Diameter x 1.0"* MTD-714-0115
...
90
Spring Pin Spiral 3/16" Diameter MTD-715-0247
...
91
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
92
Flat Washer .531 " I.D. MTD-736-0160
...
93
L-Wash. 1/4" I.D. MTD-936-0329
...
94
SHOULDER SCREW MTD-938-0255
...
95
Cable-53" Long MTD-746-0466
...
96
"V"-Belt 1/2" x 32" Long MTD-754-0104
...
97
Flat Idler Pulley MTD-756-0360
...
98
Casing Clamp MTD-12894
...
100
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
101
Casing Clamp MTD-751-0463
...
102
21 " Deck Assembly MTD-16126
...
105
Front Axle Assembly MTD-10662
...
106
Sleeve 526" I.D. MTD-711-0313
...
108
Internal Cotter Pin 5/16" Dia roeter MTD-714-0104
...
109
Extension Spring MTD-732-0482
...
111
LOCK WASHER 3/8 X.56 OD MTD-736-0221
...
112
Shld. Bolt .623" Dia. x .425 MTD-938-0705
...
113
Front Wheel Assembly Complete MTD-734-0922
...
114
Control Cover Half-Upper MTD-731-0617A
...
115
Control Cover Half-Lower MTD-753-0833
...
116
Drive Control MTD-731-0620A
...
117
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
118
Counter Sunk Tap Screw #10 x .75" MTD-710-0841
...
119
Hub Cap-Plastic MTD-731-0354
...
121
Carriage Bolt 5/16-18 x 1 .38 " MTD-710-0671
...
129
Clutch Control Cable 45" Lg. MTD-946-0477A
...
130
Wheel Ratchet MTD-948-0318
...
131
Cotter Pin 1/8" Diameter x l.O" MTD-714-0115
...
132
Pan Head Tap Screw #12 x .50" MTD-710-0748
...
133
Side Chute Deflector Assembly MTD-16559
...
134
Flange Bushing MTD-748-0249
...
135
Kit-Control Housing Complete MTD-753-0430
...
136
Spring - Nylon MTD-10622B
...
137
Bearing Hub Flange Assembly MTD-16118
...
138
Chain Cover MTD-16119
...
139
Engine Pulley 1/2" MTD-756-0460
...
140
Hex Self-Tap Screw 1/4-20 x .50" MTD-710-0599
...
141
Sprocket Shaft Assembly MTD-713-0355
...
142
Flat Washer .531 " I.D. x .93" O.D. MTD-736-0160
...
143
SPRING WASHER BELL MTD-736-0270
...
144
Flat Washer .385" I.D. x .87" O.D. MTD-736-0300
...
145
Flat Washer .51 " I.D. x 1.0" O.D. MTD-736-0326
...
146
FLAT WASHER MTD-936-0349
...
147
Rear Shaft Assembly MTD-738-0719
...
148
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
149
Spacer .510" I.D. MTD-748-0301
...
150
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
151
Flanged Nyliner Bearing MTD-741-0491
...
152
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
153
Grass Catcher Locking Knob MTD-920-0224
...
154
Foam Strip MTD-722-0139
...
155
Panel Clip MTD-731-0883
...
156
Bag Handle MTD-731-0801
...
...
...
