MTD 11A-54M9006 (2009) Push Walk Behind Mower

Model: 11A-54M9006 (2009)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
xx
Pre-Filter MTD-951-10298
...
xx
Air Filter MTD-951-10298
...
xx
FUEL FILTER MTD-951-12296A
...
xx
Fuel Cap MTD-951-10300
...
xx
Control Cable MTD-946-04486
...
xx
Choke Cable MTD-NA
...
xx
Blade Adapter MTD-748-0377E
...
xx
21-inch Mulching Blade MTD-942-0741A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1257
...
xx
Wheels - Front MTD-734-1987
...
xx
Wheels - Rear MTD-734-04082
...
xx
Trailshield MTD-731-05642A
...
xx
Discharge Chute MTD-731-04177
...
xx
Mulch Plug MTD-987-02055
...
xx
Grass Bag MTD-964-04007A
...
xx
Grass Bag Frame MTD-747-04080A

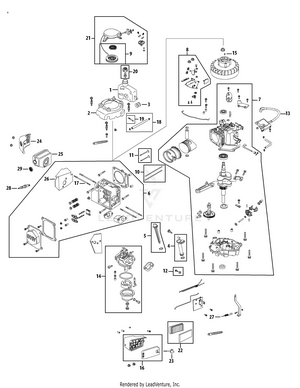

Engine Assembly

...
...
1
Fuel Tank MTD-951-10337
...
2
Flywheel Shroud MTD-951-10875
...
3
Rubber Fuel Tank Mounting Washer MTD-951-10335
...
4
Oil Filler Tube Assembly MTD-951-10334
...
5
Dipstick Assembly MTD-951-10333
...
6
CYLINDER HEAD ASSEMBLY MTD-951-10877A
...
7
Short Block MTD-951-11789
...
8
Stop Switch and Brake Ass'y MTD-951-10320A
...
9
Recoil Spring and Pulley Assembly MTD-951-10319
...
10
Push Rod Kit MTD-951-10314
...
11
Valve Kit MTD-951-10313
...
12
Oil Drain Plug and Washer Assembly MTD-951-10370
...
13
Ignition Coil MTD-951-10367
...
14
Carburetor Assembly MTD-951-10873
...
15
WOODRUFF KEY MTD-751P10307A
...
16
Air Cleaner Housing Assembly Complete MTD-951-10876
...
17
Carb Stud M6x92 MTD-710-05093
...
18
Fuel Line Kit - Inc. hoses, clamps & filter MTD-951-10363
...
19
FUEL FILTER MTD-951-12296A
...
20
Fuel Cap Assembly MTD-951-10300
...
21
Recoil Starter MTD-951-10299A
...
22
Air Cleaner Kit MTD-951-10298
...
23
Air Cleaner Thumb Screw MTD-951-10297
...
24
Muffler Guard MTD-951-10404
...
25
Muffler MTD-951-10403
...
26
Muffler Gasket /Heat Shield MTD-951-10402
...
27
Governor Return Spring MTD-951-10387
...
28
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
29
SPARK ARRESTOR MTD-951-10351A
...
xx
Engine - Complete Not Shown MTD-952Z5P65M0A
...
xx
Carburetor Kit -Major Not Shown MTD-951-10874A
...
xx
Cylinder Head Svc Kit Not Shown MTD-951-10846A
...
xx
Gasket Kit - Complete Not Shown MTD-951-10409A
...
xx
Gasket Kit - External Not Shown MTD-951-10410A

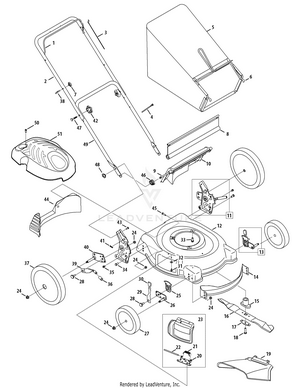

General Assembly

...
...
1
Blade Control MTD-747-1161A-0637
...
2
Upper Handle MTD-749-1092A-0637
...
3
Control Cable MTD-946-04486
...
4
Cable Tie MTD-725-0157
...
5
Grass Bag MTD-964-04007A
...
6
Grass Bag Frame MTD-747-04080A
...
7
Handle Knob MTD-720-0279
...
8
Trail shield MTD-731-05642A
...
9
Pivot Rod MTD-747-04588
...
10
Rear Discharge Door MTD-731-06847
...
11
Rear Handle Bracket Assy. - LH MTD-987-02280A
...
11
Rear Handle Bracket Assy. - RH MTD-987-02279A
...
12
Deck 21-inch MTD-787-01279-0638
...
13
Front Hgt. Adj. Assy. - LH MTD-987-02075B
...
13
Front Hgt. Adj. Assy. - RH MTD-987-02074B
...
14
FRONT BAFFLE MTD-782P5002B
...
15
Blade Adapter MTD-748-0377E
...
16
21-inch Mulching Blade MTD-942-0741A
...
17
BLADE BELL SUPPORT MTD-736-0524B-1
...
18
Hex Screw, 3/8-24 x 2.5 MTD-710-1257
...
19
Side Discharge Chute MTD-731-04177
...
20
Deflector Chute Adaptor MTD-17032A
...
21
Torsion Spring MTD-732-1014C
...
22
Hinge Pin MTD-747-0710A
...
23
Mulch Plug Assembly MTD-987-02055
...
24
Flange Lock Nut 3/8-16 MTD-712-04065
...
25
Height Adjustment Plate MTD-787-01290A
...
26
Pivot Arm Assy. - RH MTD-987-02337
...
26
Pivot Arm Assy. - LH MTD-987-02338
...
27
Front Wheel MTD-734-1987
...
28
Shoulder Scr., .5D x .385 MTD-738-04266
...
29
Front Spring Lever MTD-94832
...
30
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
31
TT Screw, 1/4-20 x .500 MTD-710-0599
...
32
SPRING WASHER BELL MTD-736-0270
...
33
TT Screw, 3/8-16 x 1.0 MTD-710-0654A
...
34
Hex Screw, 3/8-16 x .75 MTD-710-0216
...
35
TT Screw, 1/4-20 x .625 MTD-710-1652
...
36
Foam Grip MTD-720-0312
...
37
Rear Wheel MTD-734-04082
...
38
Eye Bolt MTD-710-1205
...
39
Rear Hi-Wheel Spring Lever MTD-732-0866
...
40
Rear Pivot Arm Assy - RH MTD-987-02335
...
40
Rear Pivot Arm Assy - LH MTD-987-02336
...
41
Hairpin Clip MTD-714-0104
...
42
Star Knob MTD-720-04072A
...
43
Carriage Bolt ,1/4-20 x .75 MTD-710-0703
...
44
Rear Baffle MTD-731-04150C
...
45
Screw HL, 1/4-15 x 1.00 MTD-710-1241
...
46
Torsion Spring - RH MTD-732-04090A
...
47
Carriage Bolt, 5/16-18 x 2 MTD-710-1174
...
48
Wing Nut MTD-712-0397A
...
49
Lower Handle MTD-749-0928A-0637
...
50
Screw, HL, #12-16 x 1.00 MTD-710-04744
...
51
Engine Shroud - Black MTD-731-06265A

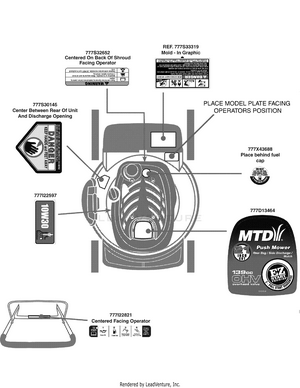

Label Map

...
...
777S32652
LABEL:MOWER:ENGINE SHROUD MTD-777S32652
...
777S30145
LABEL MTD-977S30145
...
777I22597
LABEL:MOWER SHROUD MTD-777I22597
...
777I22821
LABEL-MOWER HANDLE MTD-777I22821
...
777D13464
LABEL:MOWER SHROUD OHV MTD-777D13464
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777S33319
LABEL-DANGER Mold-In Graphic MTD-NA
...
...
...
