MTD 11A-02BT706 (2015) Push Walk Behind Mower

Model: 11A-02BT706 (2015)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-759-3336
...
xx
Air Filter MTD-BS-799579
...
xx
Fuel Cap MTD-BS-799585
...
xx
Control Cable (brake) MTD-946-04661A
...
xx
Blade MTD-942-0640
...
xx
Genuine Factory Parts 20" MULCHING BLADE (STAR) Retail Packaged Part MTD-490-100-M115
...
xx
Blade Bolt MTD-710-1044
...
xx
Blade Adapter MTD-748-0376E
...
xx
Wheels - Front MTD-734-04063B
...
xx
Wheels - Rear MTD-734-04063B
...
xx
Trailshield MTD-731-06953
...
xx
20" FIXED DISCHARGE CHUTE MTD-731-0064A
...
xx
Blade Removal Tool (Optional Accessory) MTD-490-850-0005
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional Accessory) MTD-490-850-0018
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional Accessory) MTD-490-850-0018
...
xx
Oil Siphon (Optional Accessory) MTD-490-850-0008
...
xx
Side Discharge Blower (Optional Accessory) MTD-490-850-0016
...
xx
Cargo Carrier (Optional Accessory) MTD-490-850-0015
...
xx
Garage Floor Mat (Optional Accessory) MTD-735-04255
...
xx
Mower Kick Stand (Optional Accessory) MTD-490-850-0012
...
xx
Mower Cover (Optional Accessory) MTD-490-290-0012
...
xx
Non-Stick Mower Deck Spray (Optional Accessory) MTD-490-900-0062
...
xx
STA-BIL 32 OZ (Optional Accessory) MTD-22287
...
xx
STA-BIL Fuel Stabilizer 8 oz. (Optional Accessory) MTD-22208
...
xx
Carburetor & Choke Cleaner (Optional Accessory) MTD-490-000-0028

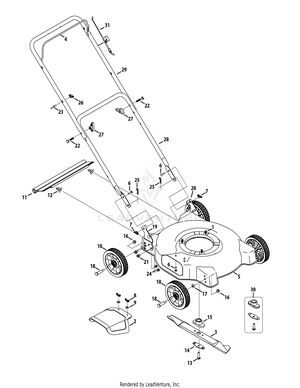

General Assembly

...
...
1
Hex Ind. Washer Screw, 3/8-16 x 1.0 MTD-710-0654A
...
2
20" FIXED DISCHARGE CHUTE MTD-731-0064A
...
3
Cutting Blade MTD-942-0640
...
3
Genuine Factory Parts 20" MULCHING BLADE (STAR) Retail Packaged Part MTD-490-100-M115
...
4
Blade Control MTD-747-1161A-0637
...
5
Cutting Deck, 20" MTD-787-01759A-0638
...
6
Carriage Screw, 1/4-20 x 1.0" MTD-710-0932A
...
7
Wing Nut, 1/4-20 MTD-712-0397A
...
8
Wing Nut, 1/4-20 MTD-712-05057
...
9
Flat Washer MTD-736-0173
...
10
Wheel, 7" Star-Dia., Oys. Gray MTD-734-04063B
...
11
Rear Flap MTD-731-06953
...
12
Hinge Clip MTD-732-04631A
...
13
Screw, 3/8-24 x 1.5" MTD-710-1044
...
14
BLADE BELL SUPPORT MTD-736-0524B-1
...
15
Blade Adapter MTD-748-0376E
...
16
Flange Lock Nut, 3/8-16 MTD-712-04065
...
17
Bell Washer MTD-736-0105
...
18
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
19
HANDLE BRACKET ASSEMBLY (RH) MTD-687Z05078
...
20
HANDLE BRACKET ASSEMBLY (LH) MTD-687Z05079
...
21
Hex Screw, 5/16-18 x .625" MTD-710-0759
...
22
Carriage Bolt, 5/16-18 x 2.0 MTD-710-1174
...
23
Eye Bolt MTD-710-1205
...
24
Flange Lock Nut, 5/16-18 MTD-712-04063
...
25
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
26
Wing Nut MTD-720-0279
...
27
Wing Knob MTD-720-04122
...
28
Lower Handle MTD-749-0928A-0637
...
29
Upper Handle MTD-749-1092A-0637
...
30
Blade Adapter Kit (Incl. Ref. 13-15) MTD-753-06315
...
31
Control Cable MTD-946-04661A

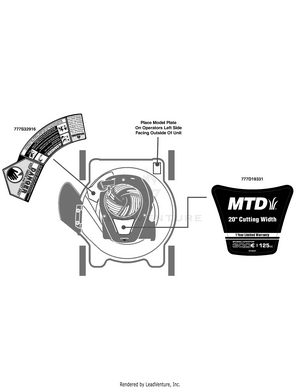

Label Map 11A-02BT706

...
...
777D19331
LABEL-MOWER SHROUD MTD 20" MTD-777D19331
...
777S32916
LABEL-MOWER DECK SAFETY MTD-777S32916
...
...
...
