MTD 113-108A000 (1993) Push Walk-Behind Mower

Model: 113-108A000 (1993)

Save
 Part Not Listed?Part Not Listed?
product name

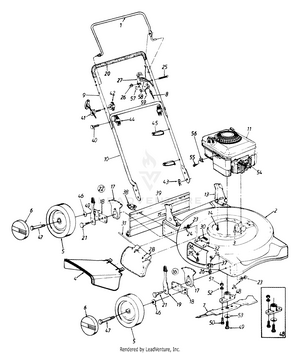

Handle And Deck Assembly

...
...
1
Std. Control Handle MTD-747-0824B-0637
...
2
20" Deck Assembly MTD-682-0016
...
3
Hex TT-Tap Scr. 3/8-16 x 1" Lg. MTD-710-0654A
...
4
Side Discharge Deflector MTD-731-1409B
...
5
Wheel Ass'y. MTD-634-0020
...
6
Hub Cap Gray (3-1/2" Dia.) MTD-920-0249
...
7
20" Mulching Blade MTD-942-0720
...
8
Control Cable 39" MTD-946-0550
...
9
Upper Handle MTD-749-0538C
...
10
Lower Handle MTD-749-0928A-0637
...
11
Engine 5 H.P MTD-NA
...
13
Handle Brkt. Ass'y.- L.H. MTD-12935B
...
14
Hex B-Tap Scr. 5/16-18 x .5" Lg MTD-710-0603
...
15
Handle Brkt. Ass'y.- R.H. MTD-12936B
...
16
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
17
Height Adjustment Plate MTD-787-01290A
...
18
Small Wheel Pivot Bar MTD-15262B
...
19
Front Spring Lever MTD-94832
...
20
Grip Foam MTD-720-0295
...
21
Shoulder Bolt .5" Dia. x .434" MTD-738-0507B
...
22
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
23
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798
...
24
Bell Washer .39" I.d. x 1.38" O.D. MTD-936-0356
...
25
Oval C-Sunk Mach. Scr. MTD-710-0605
...
26
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
27
Throttle Body MTD-946-0875
...
28
Mulching Plug Ass'y. (Incl. Ref. 30, 31, 32) MTD-682-7000
...
30
Torsion Spring MTD-932-0731
...
31
Hinge Pin MTD-747-0710A
...
32
Plug Adapter MTD-782-7006
...
34
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
35
Hex TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
36
SPRING WASHER BELL MTD-736-0270
...
37
Chute Stop Brkt. MTD-782-7009
...
38
Hinge Clip MTD-17098P
...
39
Rear Flap MTD-731-1447
...
40
Carriage Bolt 5/16-18 x 2" Lg. MTD-710-1174
...
41
Rope Guide MTD-710-1205
...
42
Wing Nut MTD-712-0397A
...
43
Int. Cotter Pin 5/16" Dia. MTD-714-0104
...
44
Hand Knob MTD-920-0276
...
45
Cable Tie MTD-725-0157
...
46
Bell-Wash .38" I.D. x .88" O.D. MTD-736-0105
...
47
Axle Bolt MTD-738-0102
...
48
Blade Adapter Kit MTD-753-0484
...
49
Hex Bolt 3/8-24 x 1.5" Lg.- Gr. 5 MTD-710-1044
...
50
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1055
...
51
Hex Nut 3/8-24 Thd. MTD-712-0241
...
52
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169
...
53
Bell-Wash .39" I.D. MTD-736-0452
...
54
Spark Plug Boot MTD-735-0639
...
55
Hex Self-Tap Scr. #10-32 x .62" Lg. MTD-710-1237
...
56
Cable Clamp (B&S) MTD-BS-690798
...
57
Curved Spring Wash. .66" I.D. MTD-936-0501
...
58
Throttle Lever MTD-946-0876
...
59
Throttle Wire 55" Lg. MTD-946-0671A
...
...
...
