product name

MTD 110854R (1990) Push Walk-Behind Mower

Model: 110854R (1990)

Save
 Part Not Listed?Part Not Listed?
product name

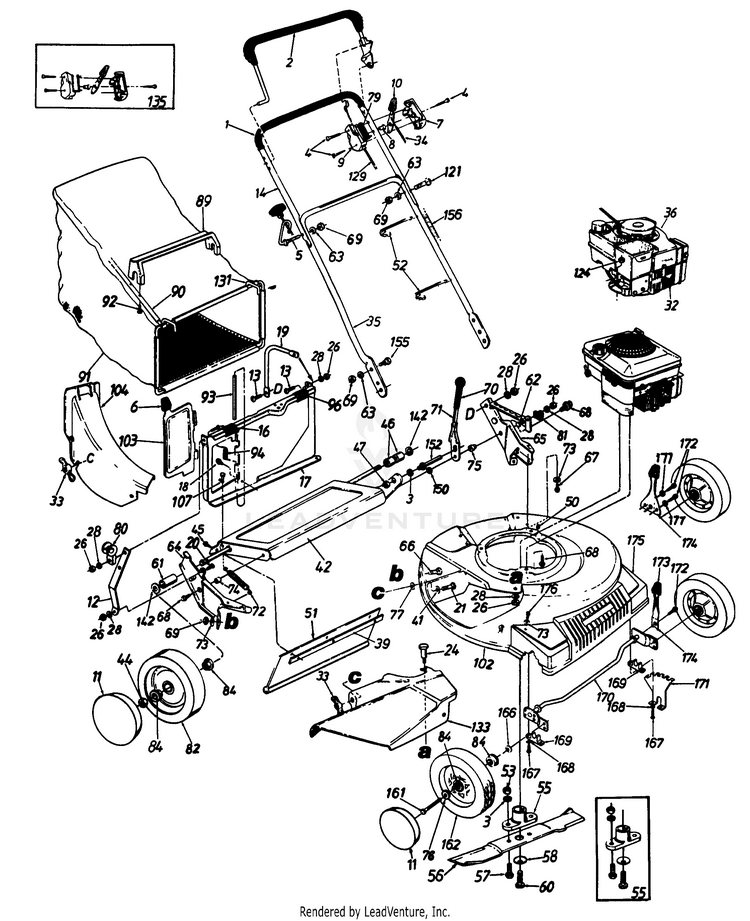

21"

...
...
1
Grip Foam MTD-720-0295
...
2
Control Handle Ass'y. L.H. MTD-731-0609
...
3
L-Wash. 3/8" I.D. MTD-736-0169
...
4
Truss Mach. Scr. #12 x 1.5" MTD-710-0796
...
5
Rope Guide Bolt MTD-710-0842B
...
6
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
7
Control Panel Half MTD-731-0817
...
8
Control Disc Pin MTD-731-0524
...
9
Clutch Panel Half MTD-731-0816
...
10
Throttle Control Lever MTD-931-0972
...
11
Hub Cap (Beige) MTD-731-0982C
...
12
Panel Support Brkt. MTD-16129A-0637
...
13
Truss Mach. Scr. 1/4-20 x .62" MTD-710-0946
...
14
Upper Handle Chrome MTD-749-0438D-0637
...
xx
Foam Strip 1" Lg. MTD-722-0139
...
16
Truss Mach. Scr. 1/4-20 x .75" MTD-710-0225
...
17
Top Catcher Panel Ass'y. MTD-16862
...
18
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
19
Catcher Panel Support Arm MTD-749-0778
...
20
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
21
Carriage Bolt 1/4-20 x .62" MTD-710-0134
...
24
Shoulder Bolt .312 Dia. x .18 Lg. Special MTD-738-0704
...
26
Hex Nut 1/4-20 Thd. MTD-912-0287
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
32
Spark Plug Insulator MTD-735-0639
...
33
Wing Nut MTD-712-0397A
...
34
Throttle Wire-58" Lg. (110864R, 110868R) MTD-946-0674A
...
xx
Throttle Wire-58" Lg. (110867R) MTD-946-0674A
...
xx
Throttle Cable (110869R) MTD-946-1115
...
35
Lower Handle MTD-749-0907B
...
36
Engine MTD-NA
...
39
Retaining Strip MTD-14835
...
41
Fl-Wash. .344" I.D. x .62" MTD-736-0204
...
42
Rear Axle Ass'y. MTD-16131A
...
44
Hex L-Nut 1/2-20 Thd. MTD-712-0346
...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
46
Spacer.526" I.D. MTD-711-0500
...
47
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
50
Plug MTD-731-0564
...
51
Rear Flap MTD-731-0671A
...
52
Cable Tie MTD-725-0157
...
53
Hex Nut 3/8-24 Thd. MTD-712-0241
...
55
Blade Adapter Kit MTD-753-0485
...
56
21" Blade MTD-942-0621
...
57
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1055
...
58
Bell-Wash. .46" I.D. MTD-936-0453
...
60
Hex Bolt 7/16-20 x 1.5" Grade 5 MTD-710-0757
...
61
Sleeve.526" I.D. MTD-711-0313
...
62
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
63
Lock Wash. 5/16" I.D. MTD-936-0119
...
64
R.H. Handle Wheel Brkt. Ass'y. MTD-16136A
...
65
L.H. Handle Wheel Brkt. Ass'y. MTD-16137B
...
66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
67
Hex B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex TT-Tap Scr. 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
Grip MTD-720-0223
...
71
Height Adj. Lever MTD-732-0606
...
72
Extension Spring 3.80" Lg. MTD-732-0481
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
Spacer .383" I.D. x .503" O.D. MTD-950-0736
...
75
Shld. Spacer.5" Dia. MTD-750-0624
...
76
Wave Wash. .53" I.D. x .78" MTD-736-0232
...
77
Bolt Retainer 1/4 x .50" O.D. MTD-726-0233
...
79
Control Label MTD-777-5814
...
80
Rope Guide MTD-719-0279
...
81
Clamp MTD-726-0175
...
82
Wheels with Ball Brgs.(Beige) (Brg. Part No. 741-0484) MTD-734-1517B
...
84
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
89
Bag Handle MTD-731-0801
...
90
Rear Grass Catcher Frame MTD-749-0764A-0637
...
91
21" Rear Discharge Grass Bag MTD-964-0082
...
92
Hex AB-Tap Scr. #12 x 1.25" Lg. MTD-710-1025
...
93
Chute Rod .188" Dia. MTD-747-0514
...
94
Torsion Spring MTD-732-0483A
...
96
Panel Clip MTD-731-0880
...
102
21" DeckAss'y. MTD-17050
...
103
Top Discharge Door MTD-17095
...
104
Top Discharge Chute Ass'y. MTD-731-1024
...
107
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
121
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
124
Hex Nut 3/8 x 16 Thd. (110867R) MTD-712-0798
...
129
Control Cable 46" (110864R & 110868R) MTD-746-0480A
...
xx
CONTROL CABLE 55" (110867R) MTD-946-0479A
...
xx
Control Cable 58" (110869R) MTD-746-0482
...
131
Front Grass Catcher Frame MTD-747-0705-0637
...
133
Side Chute Deflector Ass'y. MTD-731-0885
...
135
Kit Control Housing Comp. MTD-753-0430
...
142
Fl-Wash. .510" I.D. x .75" MTD-736-0108
...
150
Fl-Wash. 3/8" I.D. x 1.0" MTD-736-0258
...
152
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
155
Truss Mach. Scr. 5/16-18 x .75" MTD-710-0323
...
156
Plastic Tubing 24" Lg. MTD-731-0759
...
161
Front Axle Bolt MTD-738-0102
...
162
Wheels with Ball Brgs.(Beige) (Brg. Part No. 741-0484) MTD-734-1517B
...
166
Bell-Wash. .400" I.D. x .88 MTD-736-0105
...
167
Screw, Hex MTD-710-0788
...
168
L-Wash. 1/4" I.D. MTD-936-0329
...
169
Block Bushing (Used with 1 hole lever only) MTD-741-0492A
...
xx
Block Bushing (Used with 3 hole lever only) MTD-741-0492A
...
170
Axle Ass'y. (Used with 1 hole lever only) MTD-17060
...
xx
Axle Ass'y. (Used with 3 hole lever only) MTD-17733
...
171
Height Adj. Bracket MTD-17059
...
172
Hex TT-Tap Scr. 1/4-20 x .50" (Used with 1 hole lever only) MTD-710-0599
...
xx
Hex TT-Tap Scr. 1/4-20 x .38' (Used with 3 hole lever only) MTD-710-0653
...
173
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
174
Spring Lever (With 1 hole only) MTD-732-0553
...
xx
Spring Lever (With 3 holes) MTD-732-0639
...
175
Plastic Front End MTD-731-0865
...
176
HL Screw, 5/16-14 x .750 MTD-710-1242
...
177
Ext. L-Wash. 1/4" I.D. (Used with 3 hole lever only) MTD-736-0322

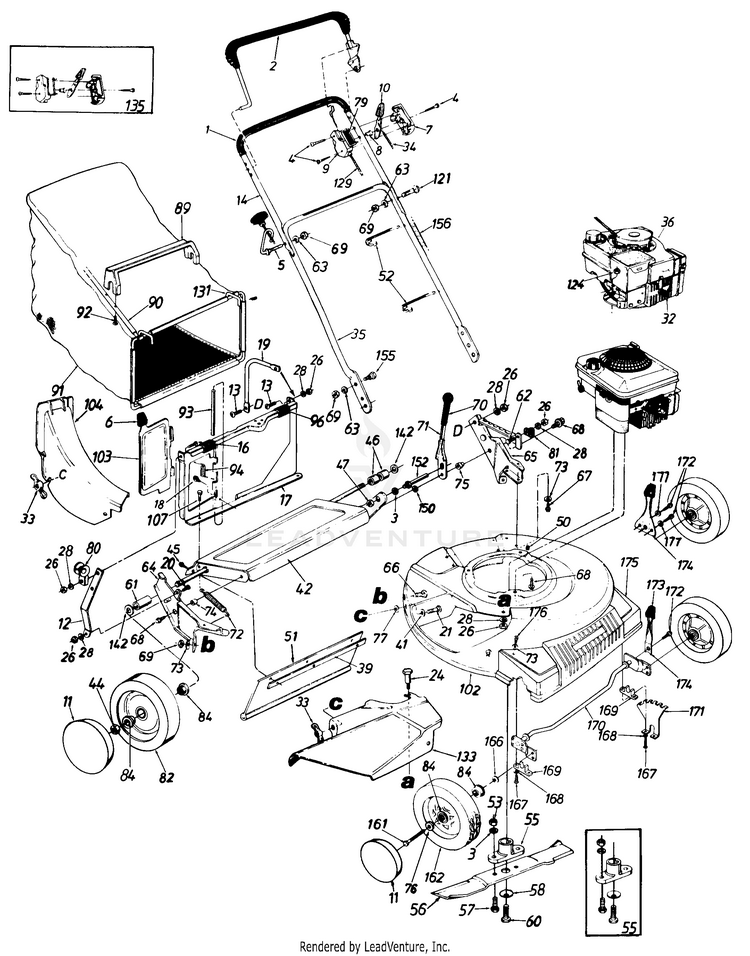

21"

...
...
