Husqvarna VF550, 96082001500 (2010-02) Cultivator/Tiller

Model: VF550, 96082001500 (2010-02)

Save
 Part Not Listed?Part Not Listed?
product name

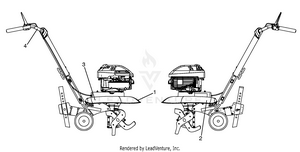

Decals

...
...
1
Decal, Tine, Shield, Poulan PLN-430007
...
2
Decal, Tine, Shield, Warning PLN-422972
...
3
Decal, Warning, Rotating Tines PLN-120076X
...
4
Decal, Hand Placement PLN-110614X
...
4
Manual, Owner's (Eng/Fren) PLN-433552

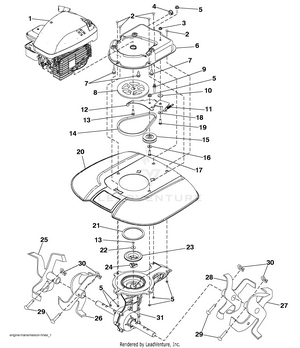

Engine, Transmission, And Tines

...
...
1
Engine PLN-421338
...
2
Bolt Carriage 3/8 - 16 x 1 PLN-72110608
...
3
Nut Lock Flg 5/16 -18 unc PLN-73900500
...
4
Plug Snap In PLN-425398
...
5
Nut Lock Flg 3/8 - 16 unc PLN-73900600
...
6
Housing Clutch PLN-421337
...
7
Screw 3/8 - 16 x 1-1/2 PLN-17000616
...
8
Sheave Upper PLN-421335
...
9
Stud Belt Guard PLN-421341
...
10
Bushing Pivot PLN-175331
...
11
Spring Return PLN-421373
...
12
Bracket Idler PLN-421339
...
13
Bolt Hex 3/8 - 24 x 1 PLN-74610616
...
14
Belt Drive PLN-421379
...
15
Pulley Idler PLN-421378
...
16
Washer 13/32 x 7/8 x 16 Ga. PLN-19131416
...
17
Bolt 3/8 - 16 x 1.25 PLN-74780620
...
18
Washer .328 x 1.375 x 0.055 PLN-133944
...
19
Bolt Fin Hex 5/16-18 unc x 7/8 PLN-74760514
...
20
Shield Tine PLN-421354X428
...
21
Seal Foam PLN-421340
...
22
Washer 13/32 x 1-1/2 x 11 Ga. PLN-413524
...
23
Sheave Lower PLN-421336
...
24
Coupling Clutch PLN-421334
...
25
Tine Outer RH PLN-156926
...
26
Tine Inner RH PLN-156924
...
27
Tine Outer LH PLN-156925
...
28
Tine Inner LH PLN-156923
...
29
Pin Clevis PLN-4929H
...
30
Retainer Spring Zinc PLN-3146R
...
31
Transmission PLN-425399

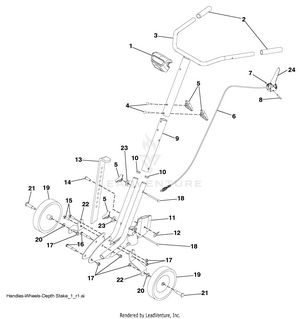

Handle, Wheel, And Depth Stake

...
...
1
Console Tiller Handle PLN-430579X428
...
2
Grip Handle PLN-165787
...
3
Assembly Handle Column PLN-431332
...
4
Bolt 5/16 - 18 x 2.50 PLN-72010520
...
5
Knob Wing PLN-189713X428
...
6
Lever Control Tine PLN-425091
...
7
Retainer Ring PLN-12000059
...
8
Pin Pivot PLN-431762
...
9
Handle Lower PLN-424190
...
10
Plug Snap In PLN-425398
...
11
Weldment Transport Arm PLN-432521
...
12
Clip Hairpin PLN-4921H
...
13
Stake Depth PLN-421342
...
14
Pin Clevis PLN-326J
...
15
Bolt 3/8 - 16 x 1-1/4 PLN-72110610
...
16
Screw Hex Head 3/8 - 16 x 2.5 PLN-74780640
...
17
Nut Lock Flg 3/8 - 16 unc PLN-73900600
...
18
Bolt 5/16 - 18 x 4.5 PLN-72140536
...
19
Wheel PLN-193850X427
...
20
Washer 17/32 x 7/8 x 16 Ga. PLN-19171416
...
21
Bolt Shoulder "A" 2.28 " B" 1.53 PLN-121117X
...
22
Bracket Wheel PLN-421345
...
23
Washer 11/32 x 3/4 x 16 Ga. PLN-19111216
...
24
Lever Control PLN-434948
...
...
...
