Husqvarna RF500AR (1999 & Before) Tiller

Model: RF500AR (1999 & Before)

Save
Part Not Listed?Part Not Listed?
product name

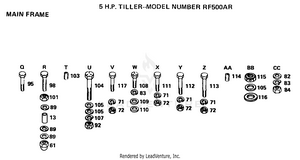

HARDWARE (MAIN FRAME)

...
...
13
SPACER - SPLIT PLN-3328R

...

...
71
LOCKWASHER PLN-10040500

...
72
NUT.HEX.5/16-18 PLN-73220500

...
82

...
83
LOCKWASHER PLN-10040400

...
84
SUB= 50675 PLN-73220400

...
89

...
92
GRIPCO NUT PLN-7810H

...
95

...
98
HEX BOLT PLN-74930648

...
101
NUT.HEX.3/8-16UNC PLN-73220600

...
103
SET SCREW PLN-23200506

...
104
BOLT.3/8-24X3.75 PLN-74610652

...
105

...
107
Washer, Lock Hvy. Hlcl. Spr. 3/8 PLN-10040600

...
108

...
109

...
110

...
111

...
112

...
113
SUB= 74780544 PLN-74760544

...
114
SET SCREW PLN-23200506

...
115
SUB= 73800600 PLN-73560600

...
116

...
117
BOLT.HEX.5/16-1.5 PLN-74760524

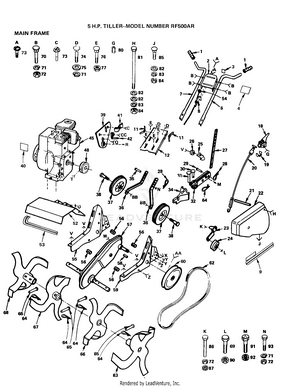

MAIN FRAME

...
...
1
SUB= 624A78 PLN-9266R

...
2
BRACKET - HANDLE PLN-101229D358



...
6
SUB= 2623J500 PLN-2623J

...
7
SUB= 2624J500 PLN-2624J

...
8
THROTTLE CONT TI PLN-2630J

...
9
DECAL - BELT GUARD PLN-104220X

...
11
SUB= 136376 PLN-2628J


...
18
CONTROL LEVER TI PLN-2635J

...
19

...
20
CABLE CLUTCH T PLN-3066J

...
21
SPLIT SPACER PLN-316J

...
22
BELT GUARD PLN-2638J358

...
23
SUB= 674A30 PLN-674H20

...
24
SUB= 75673 PLN-9178R

...
25
STAKE SPRING TI PLN-5388J

...
26
WASHER CT PLN-635J

...
27
SUB= 2582J PLN-624H151

...
28
SPRING.RETAINER PLN-4921H

...
29
SUB= 4929H PLN-326J

...
30
RIVET TI PLN-2010J

...
31

...
32
SUB= 674A111 PLN-674H136

...
34
SUB= 1953J PLN-674H126

...
35
DRILLED RIVET RT PLN-9194R

...
36
SUB= 9190R500 PLN-674H5

...
37
WHEEL TI PLN-2727J

...
38
BOLT M PLN-4898H

...
39
BRACKET TI PLN-674H175

...
40
DECAL - 5HP PLN-102697X

...
41
CONDIUT CLIP T PLN-9484R

...
42
BELT GUIDE PLN-2609J

...

...
48
SUB= 130812 PLN-9177R

...
52
SUB= 9057R505 PLN-9057R358

...
53
DECAL - TINE SHIELD PLN-104219X

...
54
KNOB TI PLN-2878J

...
55
SUB= 1949J500 PLN-674H130

...
56
SPLIT SPACER RT PLN-9173R

...
57
SUB= 532126669 PLN-674A145

...
58

...
59
SUB= 1948J PLN-674H131

...
60
TRANS SHEAVE RT PLN-9175R

...
62
V BELT STD PLN-9180R

...
63
TINE WELDMENT TI PLN-100744M

...
64
RETAINER.SPRING PLN-3146R

...
65
RIVET.PAN HD.1.75 PLN-4929H

...
66
SUB= 674A42 PLN-674H31

...
67
SUB= 674A43 PLN-674H32

...
68
TINE WELDMENT TI PLN-100746M

...
69
Bolt Fin Flex 3/8-16unc X 1-1/4 PLN-74760620

...
70

...
71
LOCKWASHER PLN-10040500

...
72
NUT.HEX.5/16-18 PLN-73220500

...
73
SCREW TI PLN-17561008

...

...
75

...


...
80


...
82

...
83
LOCKWASHER PLN-10040400

...
84
SUB= 50675 PLN-73220400

...

...
86
SUB= 74760532 PLN-74930532

...
87
SUB= 68478 PLN-1685H


...

...
92
GRIPCO NUT PLN-7810H

...
93
SUB= 77394 PLN-74760516

...
xx
OWNER'S MANUAL PLN-102544X
...
...
...
