Husqvarna PR7R21B (2004-02) Walk-Behind Mower

Model: PR7R21B (2004-02)

Save
 Part Not Listed?Part Not Listed?
product name

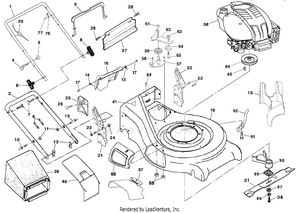

Drive

...
...
1
Handle, Upper PLN-189663X479
...
2
Handle, Lower PLN-161105X479
...
3
Spring, Rear Door, RH PLN-186053
...
4
Guide, Rope, Side PLN-179585
...
5
Nut, Hex, with Lockwasher Insert 1/4-20 PLN-132004
...
6
Wire, Tie PLN-664-26
...
7
Bolt, Handle 5/16-18 x 2-5/8 PLN-131959
...
8
Knob, Handle PLN-189713X428
...
9
Control Bar PLN-182810
...
10
Bolt, Carriage PLN-188821
...
11
Nut, Hex, with Lockwasher Insert 5/16-18 UNC PLN-73930500
...
12
Cotter, Hairpin PLN-51793
...
13
Spring, Rear Door, LH PLN-186052
...
16
Rear Door Assembly PLN-185855X428
...
17
Bolt, Rear Door PLN-184193
...
18
Plug, Mulcher PLN-187535
...
19
Kit, Housing PLN-181763
...
20
Handle Bracket Asembly, Left PLN-187249X479
...
21
Handle Bracket Assembly, Right PLN-187250X479
...
22
Screw, Hex Washer Head PLN-150078
...
23
Bolt, Hex Head 5/16-18 x 5/8 PLN-163183
...
24
Nut, Hex, with Lockwasher Insert 5/16-18 PLN-73800500
...
25
Baffle, Side PLN-161333
...
26
Screw #12 x 5/8 PLN-163409
...
27
Skirt, Rear PLN-188986
...
28
Screw, Hinge 1/4-20 x 1.25 PLN-88652
...
29
Cable, Engine Zone Control PLN-183567
...
31
Blade, 21" PLN-189028
...
34
Bolt, Hex Head PLN-851084
...
37
Bolt, Engine PLN-150406
...
39
Grassbag PLN-189004
...
40
Frame, Grassbag PLN-188817
...
41
Danger Decal PLN-107339X
...
57
Bracket Assembly PLN-179783X004
...
58
Screw PLN-57808
...
59
V-Groove Pulley PLN-184543
...
61
Nut, Hex, Flanged PLN-145212
...
62
Locknut PLN-155552
...
63
Idler Arm PLN-179719X004
...
64
Idler Pulley PLN-166043
...
65
Shoulder Bolt PLN-160829
...
66
Rear Door Assembly PLN-183058X428
...
67
Mulcher Door, Multi-Cut PLN-169699X428
...
68
Nut, Hex PLN-88349
...
76
Bracket, Upstop PLN-850733X004
...
77
Screw PLN-750634
...
84
Screw PLN-54583
...
85
Key, Hi-Pro PLN-187723
...
86
Pulley PLN-184941
...
87
Washer PLN-851074
...
88
Washer, Lock PLN-850263
...
89
Blade Adapter PLN-184590
...
90
Debris Shield PLN-188786
...
91
Bolt PLN-188040
...
92
Mounting Bracket, Debris Shield PLN-188839X004
...
92
Warning Decal (not shown) PLN-162300
...
92
Operator's Manual, English PLN-172787
...
92
Operator's Manual, French PLN-172788
...
92
Repair Parts Manual, English / French PLN-190877

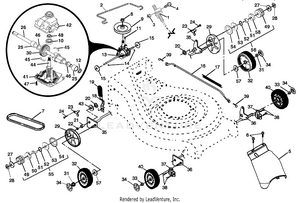

Frame

...
...
1
Drive Control Assembly PLN-189181
...
2
Control Bar, Drive PLN-188952X428
...
3
Nut, Hex PLN-751152
...
4
Screw PLN-185681
...
5
Cover Drive PLN-161537X428
...
6
Screw, Threaded, Rolled #10-25 x .50 PLN-750634
...
7
V-Belt PLN-182212
...
8
Nut, Flangelock, Zinc Plated 3/8-16 PLN-132010
...
9
Pulley, Drive PLN-184749
...
10
Bearing, Ball PLN-183506
...
11
Screw PLN-187653
...
12
Seal, Output Shaft PLN-183508
...
13
Gear Case Assembly, Complete PLN-187213
...
14
Pin, Spring, Thrust PLN-145354
...
15
Washer, Hardened PLN-57079
...
16
Rod, Connecting PLN-161584
...
17
Spring, Extension PLN-161602
...
18
Spring, Selector PLN-188953X004
...
19
Knob, Selector Spring PLN-189808X421
...
20
E-Ring 7/8 PLN-12000022
...
21
Bearing, Support PLN-163365
...
22
Bearing, Ball PLN-169911
...
23
Retainer, Drive Assembly PLN-161118X004
...
24
Screw, Tapping, Hex Head 1/4-20 x .75 PLN-57808
...
25
Bushing PLN-183511
...
26
Shaft, Output PLN-187534
...
27
Washer, Shim (as required) PLN-52160
...
28
E-Ring 7/16 PLN-12000058
...
29
Cover, Dust, Wheel PLN-189403
...
30
Gear, 24 Teeth PLN-187532
...
31
Nut, Flangelock PLN-145212
...
32
Wheel 9 x 2 PLN-180764
...
33
Nut, Flangelock 3/8-16 PLN-83923
...
34
Hubcap, Mag, Platinum PLN-77400
...
35
Shaft Assembly, Rear PLN-189180X004
...
36
Shaft Assembly, Front PLN-160786X004
...
37
Retainer, Front Shaft PLN-161463
...
38
Screw #12 x 5/8 PLN-163409
...
39
Clip, Retainer PLN-700279
...
40
Wheel 8 x 2 PLN-172297
...
41
Case, Lower Use Dow Corning #709 to reseal Gear Case Halves. PLN-187530
...
42
Case, Upper Use Dow Corning #709 to reseal Gear Case Halves. PLN-187531
...
43
Washer PLN-19572216
...
44
Shaft, Input PLN-187533
...
45
Wire, Formed PLN-183505
...
46
Washer PLN-183509
...
47
Screw PLN-183513
...
48
Seal, Input Shaft PLN-183514
...
49
Pinion, Gear PLN-175103
...
50
Retainer, Drive, RH PLN-175102
...
51
Pawl PLN-175098
...
52
Spring, Torsion PLN-188291
...
53
Disc, Drive PLN-175104
...
54
Seal, Friction PLN-184172
...
55
Pinion Assembly, RH PLN-188330
...
56
Pinion Assembly, LH PLN-188331
...
57
Washer PLN-67725
...
58
Retainer, Drive, LH PLN-175105
...
...
...
