Husqvarna PR6Y22SHA (2000-02) Walk-Behind Mower

Model: PR6Y22SHA (2000-02)

Save
 Part Not Listed?Part Not Listed?
product name

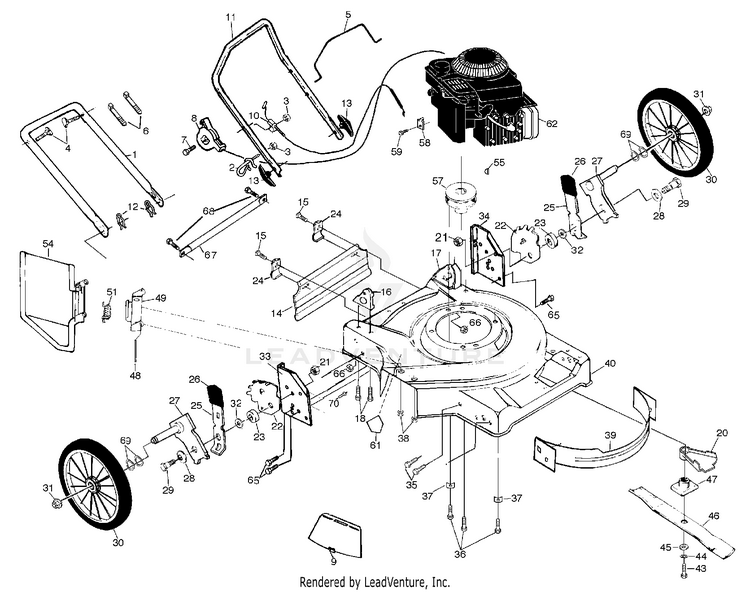

Drive

...
...
1
Lower Handle PLN-151721X479
...
2
Rope Guide PLN-153638
...
3
Locknut 1/4-20 PLN-63601
...
4
Handle Bolt PLN-131959
...
5
Control Bar PLN-170287
...
6
Wire Ties PLN-664-26
...
7
Hex Washer Head Screw 1/4-20 x 2-1/8 PLN-144929
...
8
Throttle Control PLN-170294
...
9
Mulcher Plate PLN-751772X479
...
10
Engine Zone Control Cable PLN-130861
...
11
Upper Handle PLN-166862X479
...
12
Hairpin Cotter PLN-51793
...
13
Handle Knobs PLN-170146
...
14
Rear Skirt PLN-140540
...
15
Hex Head Screw PLN-750097
...
16
Handle Bracket Assembly (Right) PLN-170345X479
...
17
Handle Bracket Assembly (Left) PLN-170346X479
...
18
Screw 5/16-18 x 3/4 PLN-149741
...
20
Debris Shield PLN-134612
...
21
Locknut PLN-751592
...
22
Wheel Adjusting Bracket PLN-700325X007
...
23
Spacer PLN-146630
...
24
Skirt Bracket PLN-87584X004
...
25
Selector Spring PLN-700331X004
...
26
Selector Knob PLN-170143
...
27
Axle Arm Assembly PLN-750913X004
...
28
Belleville Washer PLN-61651
...
29
Shoulder Bolt 3/8-16 PLN-142748
...
30
Wheel & Tire Assembly (Rear) PLN-170258
...
31
Flanged Locknut 3/8-16 PLN-83923
...
32
Flat Washer PLN-88348
...
33
Wheel Support Bracket (RT) PLN-750386X479
...
34
Wheel Support Bracket (LT) PLN-750388X479
...
35
Screw PLN-17600406
...
36
Thread Rolling Screw 3/8-16 x 1 PLN-150406
...
37
Engine Washer PLN-851201X004
...
38
Nut PLN-63601
...
39
Front Baffle Kit PLN-170031
...
40
Mower Housing Kit (Includes Key No. 61) PLN-172837
...
43
Hex Head Screw 3/8-24 x 1-3/8 Gr. 8 PLN-851084
...
44
Helical Washer 3/8 PLN-850263
...
45
Hardened Washer PLN-851074
...
46
22" Blade PLN-141114
...
47
Blade Adapter PLN-851514
...
48
Hinge Rod PLN-147286
...
49
Housing Bracket PLN-87593
...
51
Torsion Spring PLN-87589
...
54
Discharge Guard PLN-750149
...
55
Hi-Pro Key PLN-87677
...
57
Engine Pulley PLN-84596
...
58
Cable Clamp PLN-213146
...
59
Screw #10 x 5/8 PLN-83816
...
61
Danger Decal PLN-107339X
...
65
Bolt PLN-74760612
...
66
Nut PLN-751592
...
67
Support Rod PLN-165175X479
...
68
Screw hex Tap. 1/4/20 PLN-54583
...
69
Wave Washer PLN-57143
...
70
Pop Rivet PLN-128415
...
70
Warning Decal PLN-162300
...
70
Rear Baffle (Not Shown) PLN-134027X479
...
70
Operator's Manual (English) PLN-172787
...
70
Operator's Manual (French) PLN-172788
...
70
Repair Parts Manual PLN-173816
...
70
Grass Catcher Available accessories not included with lawn mower: PLN-GCK3200

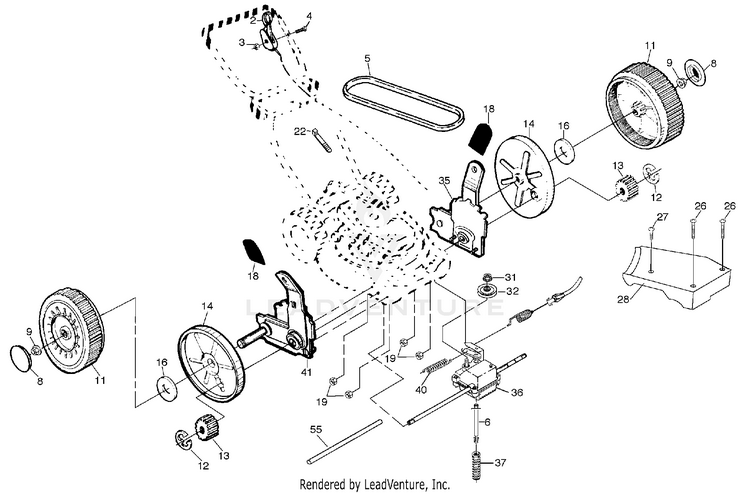

Frame

...
...
2
Drive Control PLN-174318
...
3
Locknut #10-24 PLN-751152
...
4
Hex Washer Head Screw 1/4-20 x 2.12 PLN-158755
...
5
V-Belt PLN-146527
...
6
Spring Retainer PLN-150495
...
8
Hubcap PLN-77400
...
9
Flanged Locknut 3/8-16 PLN-145212
...
11
Wheel & Tire Assembly PLN-170263
...
12
E-Ring PLN-12000058
...
13
Pinion PLN-137054
...
14
Dust Cover PLN-88080
...
16
Washer 1/2 x 1-1/2 x .134 PLN-67725
...
18
Selector Knob PLN-170143
...
19
Hex Locknut 1/4-20 PLN-63601
...
22
Wire Tie PLN-664-26
...
26
Pan Head Tapping Screw #10-24 x 2-3/4 PLN-146072
...
27
Hex Head Tapping Screw #10-2 PLN-750097
...
28
Drive Cover PLN-171320
...
31
Hex Flange Nut PLN-132010
...
32
Drive Pulley PLN-137052
...
35
Wheel Adjuster Assembly (Left) PLN-172291
...
36
Gear Case Assembly PLN-702511
...
37
Spring PLN-137090
...
40
Spring PLN-75192
...
41
Wheel Adjuster Assembly (Right) PLN-172290
...
55
Driveshaft Cover PLN-86012

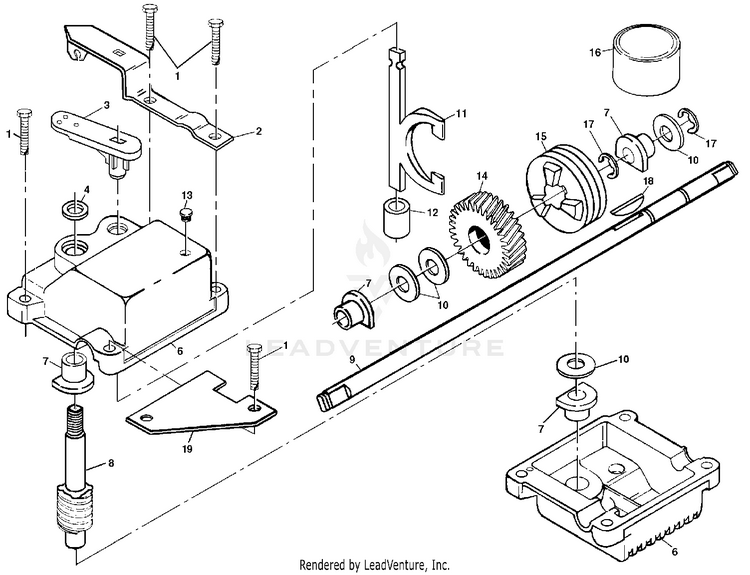

Housing

...
...
1
Screw, Tapping 1/4-20 x 1-1/4 PLN-17490416
...
2
Bracket, Adjusting PLN-137055
...
3
Shifter PLN-137053
...
4
Seal PLN-57072
...
6
Gear Case Halves, Upper and Lower (Includes Key #4, and 7) PLN-48373
...
7
Bearing PLN-77881
...
8
Shaft, Worm PLN-137051
...
9
Drive Shaft PLN-137077
...
10
Washer, Hardened PLN-57079
...
11
Yoke, Clutch PLN-131484
...
12
Bushing PLN-700343
...
13
Plug PLN-86447
...
14
Gear, Helical PLN-137050
...
15
Jaw, Clutch PLN-750436X
...
16
Grease PLN-750369
...
17
E-Ring PLN-12000003
...
18
Key, Hi-Pro PLN-850848
...
19
Spring Bracket PLN-81585X004
...
...
...
