Husqvarna PR6Y22CHA (1999-12) Walk-Behind Mower

Model: PR6Y22CHA (1999-12)

Save
 Part Not Listed?Part Not Listed?
product name

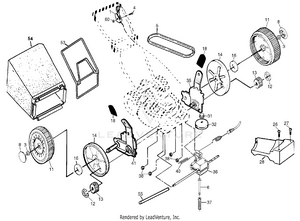

Drive

...
...
1
Control Cable Assembly PLN-170296
...
3
Flanged Locknut 3/8-16 PLN-145212
...
4
Hex Washer Head Screw 1/4-20 x 2.12 PLN-158755
...
5
V-Belt PLN-146527
...
6
Spring Retainer PLN-150495
...
8
Hubcap PLN-77400
...
11
Wheel & Tire Assembly PLN-170263
...
12
E-Ring PLN-12000058
...
13
Pinion PLN-137054
...
14
Dust Cover PLN-88080
...
16
Washer 1/2 x 1-1/2 x .134 PLN-67725
...
18
Selector Knob PLN-170143
...
26
Pan Head Tapping Screw #10-24 x 2- 3/4 PLN-146072
...
27
Pan Head Screw #10-24 x 1- 3/4 PLN-149746
...
28
Drive Cover PLN-170151
...
31
Hex Flange Nut PLN-132010
...
32
Drive Pulley PLN-137052
...
35
Wheel Adjuster Assembly (Left) PLN-172291
...
36
Gear Case Assembly PLN-702511
...
37
Spring PLN-137090
...
38
Locknut 1/4-20 PLN-63601
...
40
Spring PLN-75192
...
41
Wheel Adjuster Assembly (Right) PLN-172290
...
53
Frame Assembly PLN-149555
...
54
Grass Catcher PLN-170449
...
55
Driveshaft Cover PLN-86012
...
60
Nut PLN-751152

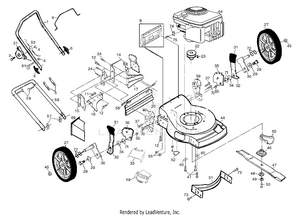

Frame

...
...
1
Upper Handle PLN-166862X479
...
3
Hex Washer Head Screw 1/4-20 x 2-1/8 PLN-144929
...
4
Locknut 1/4-20 PLN-63601
...
5
Wire Tie PLN-664-26
...
6
Handle Knob PLN-170146
...
8
Control Bar PLN-170287
...
9
Rear Door Kit PLN-151023
...
11
Self Tapping Screw #10-24 x 5/8 PLN-150050
...
12
Hex Tapping Screw w/Sems 1/4-20 x 1/2 PLN-54583
...
14
Back Plate PLN-156380X479
...
15
Side Baffle PLN-700365X479
...
16
Discharge Baffle PLN-133190X479
...
17
Rear Baffle PLN-133040X479
...
19
Combi-cut Door PLN-148195
...
20
Rear Skirt PLN-140540
...
21
Throttle Control PLN-173489
...
22
Engine Pulley PLN-84596
...
23
Hi-Pro Key #505 PLN-87677
...
24
Pop Rivet PLN-128415
...
27
Wheel PLN-170258
...
28
Shoulder Bolt 3/8-16 x 1-3/8 PLN-142748
...
29
Spring Washer PLN-61651
...
30
Axle Arm Assembly PLN-750913X004
...
31
Selector Knob PLN-170143
...
32
Selector Spring PLN-700331X004
...
33
Clip-on Discharge Deflector PLN-145285
...
34
Spacer PLN-146630
...
35
Wheel Adjusting Bracket PLN-700325X007
...
37
Thread Cutting Screw w/Sems 5/16-18 x 3/4 PLN-150078
...
39
Handle Bracket Assembly (Left) PLN-161814X479
...
40
Handle Bracket Assembly (Right) PLN-161812X479
...
41
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 PLN-150406
...
44
Lawn Mower Housing (Incl. Key Nos. 14, 15, 51 & 52) PLN-172287
...
45
Flanged Locknut 3/8-16 PLN-83923
...
46
Blade Adapter PLN-851514
...
47
Blade 22" PLN-141114
...
48
Hardened Washer PLN-851074
...
49
Helical Washer PLN-850263
...
50
Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8 PLN-851084
...
51
Front Baffle Kit PLN-170557
...
52
Danger Decal PLN-107339X
...
53
Cable PLN-130861
...
55
Locknut 3/8-16 PLN-751592
...
56
Hinge Screw 1/4-20 x 1-1/4 PLN-88652
...
57
Hairpin Cotter PLN-51793
...
58
Lower Handle PLN-151721X479
...
59
Handle Bolt PLN-131959
...
60
Washer PLN-851201X004
...
61
Rope Guide PLN-132001
...
62
Debris Shield PLN-134612
...
69
Mulcher Plug PLN-166649
...
70
Bolt PLN-74760612
...
71
Washer PLN-88348
...
72
Wave Washer PLN-57143
...
73
Screw Hx Serrated 1/4 x 20.TT PLN-17600406
...
74
Clamp PLN-111190X
...
75
Screw PLN-83816
...
75
Operator's Manual (English) PLN-172787
...
75
Operator's Manual (French) PLN-172788
...
75
Warning Decal (Not Shown) PLN-162300
...
75
Repair Parts Manual PLN-172289

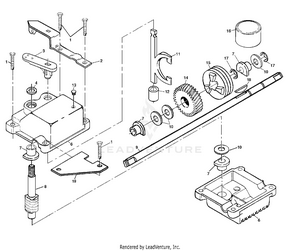

Housing

...
...
1
Tapping Screw 1/4-20 x 1-1/4 PLN-17490416
...
2
Engagement Bracket PLN-137055X004
...
3
Shifter PLN-137053
...
4
Seal PLN-57072
...
6
Gear Case Halves Kit (Includes Key Nos. 4 and 7) PLN-48373
...
7
Bearing PLN-77881
...
8
Worm Shaft PLN-137051
...
9
Drive Shaft PLN-137074
...
10
Hardened Washer PLN-57079
...
11
Clutch Yoke PLN-131484
...
12
Bushing PLN-700343
...
13
Plug PLN-86447
...
14
Helical Gear PLN-137050
...
15
Clutch Jaw PLN-750436X
...
16
Grease PLN-750369
...
17
E-Ring PLN-12000003
...
18
Hi-Pro Key PLN-850848
...
19
Spring Bracket PLN-81585X004
...
...
...
