Husqvarna PPWT60022, 96172000600 (2009-11) Trimmer/Edger

Model: PPWT60022, 96172000600 (2009-11)

Save
 Part Not Listed?Part Not Listed?
product name

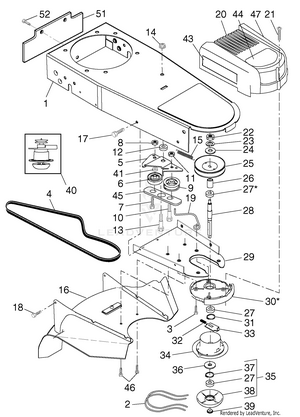

Chassis

...
...
1
Chassis Assembly PLN-174031X421
...
2
Line, Trimmer .155 diameter x 18.75 long PLN-182219
...
3
Screw, Self-Tapping 5/16-18 x 1 PLN-173715
...
4
V-Belt PLN-185476
...
5
Bracket, Idler PLN-172145X004
...
6
Pulley, Idler, V-Groove PLN-166042
...
7
Bolt, Hex Head 3/8-16 x 1.25 PLN-173716
...
8
Locknut, Hex 3/8-16 PLN-751592
...
9
Pulley, Idler, Flat PLN-166043
...
10
Bolt, Shoulder PLN-160829
...
11
Locknut, Hex 5/16-18 PLN-73930500
...
12
Spacer PLN-173717
...
13
Bolt, Shoulder PLN-174719
...
14
Locknut, Flange PLN-409149
...
15
Spring, Return PLN-173811
...
16
Defl ector, Bottom PLN-180268
...
17
Screw 1/4-20 x 1/2 PLN-17060410
...
18
Screw #10-24 x 3/4 PLN-178848
...
19
Belt Keeper PLN-199574
...
20
Cover, Chassis, Top PLN-178390
...
21
Screw #10-24 x 1-3/4 PLN-149746
...
22
Nut, Hex 3/8-24 UNF PLN-STD541137
...
23
Washer, Lock 3/8 PLN-STD551137
...
24
Washer, Flat 3/8 PLN-STD551037
...
25
Pulley, Driven PLN-180340
...
26
Spacer, Pulley PLN-172551
...
27
Bearing PLN-174549
...
28
Jackshaft PLN-172520
...
29
Cover, Chassis, Bottom PLN-169766X479
...
30
Spindle Housing Assembly ( Includes Upper Bearing, Key No. 27) PLN-174543
...
31
Ring, Retaining, External, 17mm PLN-174581
...
32
Spring, Locking Plate PLN-173973
...
33
Locking Plate PLN-172519
...
34
Carrier Plate Assembly PLN-180338
...
35
Mow Ball Assembly (Includes Key Numbers 27, 37 and 38) PLN-182217
...
36
Cover, Bearing PLN-172516
...
37
Ring, Retaining, Internal, 40mm PLN-174580
...
38
Mow Ball PLN-172523
...
39
Bolt, Mow Ball PLN-180334
...
40
Spindle Assembly, Complete (Includes Key No. 22-28 and 30-39) PLN-180333
...
41
Spacer PLN-174029
...
43
Decal, Instruction PLN-174042
...
44
Decal, Chassis Cover PLN-430665
...
45
Belt Keeper, Bottom PLN-174596X479
...
46
Screw, Self-Tapping PLN-17060408
...
47
Decal, Instruction PLN-174036
...
51
Defl ector, Rear PLN-189006
...
52
Screw PLN-178848

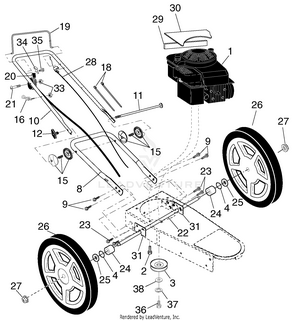

Engine

...
...
2
Bolt, Engine Mounting 3/8-16 PLN-150406
...
3
Pulley, Engine PLN-179466
...
4
Washer, Flat PLN-88348
...
8
Handle, Lower PLN-169821X479
...
9
Screw, Hex Washer Head 5/16-18 x 3/4 PLN-428867
...
10
Handle, Upper PLN-169797X479
...
11
Bolt, Handle PLN-170980
...
12
Knob, Handle PLN-189713X428
...
15
Handle Adjuster Assembly PLN-179751
...
16
Guide, Rope PLN-194788
...
18
Wire Tire PLN-664-26
...
19
Control Bar PLN-176983X421
...
20
Throttle Control PLN-417238
...
21
Screw, Hex Washer Head PLN-158755
...
22
Axle Shaft Assembly PLN-169787
...
23
Screw, Hex Washer Head 5/16-18 x 3/4 PLN-428867
...
24
Washer, Axle PLN-169823
...
25
O-Ring PLN-197480
...
26
Wheel, 12 x 1-3/4 PLN-195012X428
...
27
Locknut, Hex 3/8-16 PLN-409149
...
28
Drive Control Cable PLN-181699
...
29
Decal, Warning PLN-406678
...
30
Decal, Warning PLN-178365
...
31
Bracket, Support, Axle Shaft PLN-172221X479
...
33
Nut, Hex PLN-132004
...
34
Bracket, Upstop PLN-429930X004
...
35
Screw #10-24 x 5/8 PLN-750634
...
36
Bolt, Hex Head PLN-851084
...
37
Washer, Lock PLN-850263
...
38
Washer, Flat, Hardened PLN-851074
...
38
Manual, Replacement Parts PLN-431477
...
38
Manual, Operator's, English PLN-177817
...
38
Manual, Operator's, French PLN-180102
...
...
...
