product name

Husqvarna PP133 (2009-01) Trimmer/Edger

Model: PP133 (2009-01)

Save
 Part Not Listed?Part Not Listed?
product name

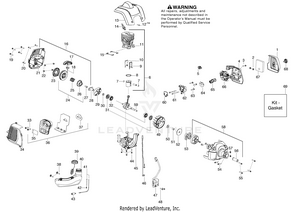

Engine

...
...
1
Cover-Airbox PLN-545177001
...
2
Nut-Carb. Screw PLN-530016101
...
3
Screw 8-32 PLN-530016301
...
4
Base-Airbox PLN-545176901
...
5
Purge Bulb PLN-530047721
...
6
Kit-Piston/Cyl. (Incl. 7,8,9,10,11) PLN-545008046
...
7
Retainer-Piston pin PLN-545194801
...
8
Ring-Piston PLN-545194601
...
9
Insert-Front Transfer Port PLN-545194901
...
10
Insert-Rear Transfer Port PLN-545195001
...
11
Cylinder-Machined PLN-545181801
...
12
Screw M4 x 1.75 x 16mm PLN-530016449
...
13
Cover-Top PLN-545156401
...
14
Spark Plug (RCJ- 6Y) PLN-952030249
...
15
Seal-Cylinder (Kit) PLN-545008044
...
16
Assy-Shroud Rear (Incl. 17,18,21,22,23,24,27) PLN-545190701
...
17
Handle-Starter PLN-545208401
...
18
Kit-Rope PLN-545029901
...
19
Screw M5 x 25mm PLN-530015897
...
20
Screw M4 x 1.75 PLN-530016449
...
21
Housing-Starter w/eyelet PLN-545216101
...
22
Spacer PLN-545185301
...
23
Kit-Starter Spring PLN-545008013
...
24
Kit-Pulley (Incl 25,26) PLN-545008049
...
25
Spring-Starter Hub PLN-545188301
...
26
Hub-Starter PLN-545188001
...
27
Screw M6 PLN-545112801
...
28
Coupling-Starter PLN-545188201
...
29
Assy-Starter Cup PLN-545188701
...
30
Washer-Flat PLN-530015828
...
31
Seal-Crankshaft (kit) PLN-545008044
...
32
Bearing-Crankshaft PLN-545013401
...
33
Bolt-Muffler PLN-530058982
...
34
Guard-Muffler PLN-545156301
...
35
SPARK ARRESTER PLN-545224001
...
36
Assy-Muffler (Incl. 33,35,37) PLN-545180701
...
37
Gasket-Muffler (kit) PLN-545008044
...
38
Screw-Tank Retainer PLN-530016445
...
39
Assy-Fuel Cap PLN-530057973
...
40
ASSY FUEL TANK (Incl. 39,41,42,43) PLN-578942701
...
41
Kit-Fuel line (Incl. 42) PLN-530069599
...
42
Fitting-Fuel Line PLN-530023877
...
43
Assy-Fuel Pickup PLN-530095646
...
44
Screw-m5x25mm PLN-530015897
...
45
Assy-Crankcase PLN-545181901
...
46
Assy-Leadwire PLN-545191601
...
47
Module-Ignition PLN-545189701
...
48
Screw 8-32 PLN-530016357
...
49
Assy-Flywheel PLN-545120401
...
50
Washer PLN-530016463
...
51
Spacer-Flywheel PLN-530057852
...
52
Washer-Clutch PLN-530094189
...
53
Assy-Clutch PLN-530055122
...
54
Screw 10-24 x 1" PLN-530015774
...
55
Screw M5 x 25mm PLN-530015897
...
56
Guide-Clutch Drum PLN-545186401
...
57
Locknut 10-24 PLN-530015768
...
58
Assy-Fan Hsg (Incl.54,56,57) PLN-545190801
...
59
CRANKSHAFT PLN-545194001
...
60
Seal-Cyl./Adapter (kit) PLN-545008044
...
61
Bolt M5 x .80 PLN-530016418
...
62
ADAPTER, CARBURETOR PLN-575391501
...
63
Screw .20 x 32 PLN-530016441
...
64
Gasket-Carb./Adapter(kit) PLN-545008044
...
65
Boot-Carb. PLN-545190501
...
66
CARBURETOR PLN-545189502
...
67
Filter-Air PLN-545195901
...
68
Assy-Airbox Knob PLN-545188801
...
69
Kit - Gasket (Incl. 15,31,37,60,64) PLN-545008044

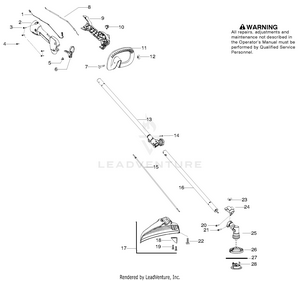

Shaft

...
...
1
Assy-Switch Wire PLN-545191801
...
2
Housing-Throttle (RH) PLN-545187602
...
3
Screw M4 PLN-530016449
...
4
Screw PLN-530015886
...
5
Spring-Trigger PLN-545190001
...
6
Kit - Trigger (Incl. 5) PLN-545008077
...
7
Bolt -1/4-20 x 2 PLN-530015786
...
8
Assy - Throttle Cable PLN-545199301
...
9
Housing-Throttle (LH) PLN-545187502
...
10
Kit-Switch PLN-545008040
...
11
Assy - Handle Assist (Incl. 7,12) PLN-530058583
...
12
Wingnut PLN-530401992
...
13
KIT UPPER SHAFT BLACK (Incl.#14) PLN-575260201
...
14
Screw - 12-24 x 480 PLN-530016344
...
15
Flexshaft PLN-545132002
...
16
Kit-Driveshaft Lower (Incl. 15) PLN-545180854
...
17
Kit-Shield (Incl. 18,19,22,23) PLN-545003325
...
18
Limiter-Line PLN-530052286
...
19
Screw - 10-14 x 3/4 PLN-530015814
...
20
Screw - 8-16 x .593 PLN-530015775
...
21
Screw - 12-24 x .960 PLN-530016014
...
22
Bolt - 1/4-20 x 1-1/4 PLN-530015820
...
23
Wingnut PLN-530401992
...
24
Bracket - Shield PLN-545150701
...
25
Assy - Gearbox 1" PLN-530096099
...
26
Assy - Fixed Line Head PLN-545053902
...
27
Accy - Line (12 pcs ) PLN-952711635
...
28
Cap - Fixed Line PLN-545049501
...
28
Manual Not Shown PLN-545186846
...
28
Decal-Shaft Warning (lower) Not Shown PLN-545209101
...
28
Decal-Shaft Warning (upper) Not Shown PLN-545167716
...
...
...
