Husqvarna NCFG550A (1999 & Before) Tiller

Model: NCFG550A (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

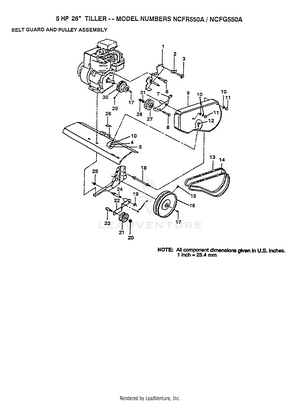

BELT GUARD, PULLEY ASSY

...
...
1
SUB= 159268 PLN-123643X
...
2
CONDIUT CLIP T PLN-9484R
...
3
SUB= 750097 PLN-86777
...
4
LOCKWASHER PLN-10040400
...
5
SUB= 50675 PLN-73220400
...
6
SCREW PLN-74770812
...
7
REV IDLER ARM TI PLN-106953X
...
8
SUB= 74930624 PLN-74760624
...
9
SUB= 106970X505 PLN-106970X423
...
xx
"GRD,BELT" PLN-106970X429
...
10
WASHER PLN-19091016
...
11
NUT-CAP TI PLN-104213X
...
12
BOLT T PLN-72140405
...
13
SUB= 133035 PLN-4833H
...
14
SUB= TH3H440 PLN-2614J
...
15
SET SCREW PLN-23230506
...
16
SHEAVE TI PLN-2607J
...
17
KEY T PLN-2649M
...
18
BOLT TI PLN-110550X
...
19
KLIP RING TI PLN-12000036
...
20
NUT PLN-73350600
...
21
SUB= 75673 PLN-9178R
...
22
IDLER ARM TI PLN-674A30
...
23
Bolt Fin Flex 3/8-16unc X 1-1/4 PLN-74760620
...
24
SHAFT IDLER TI PLN-106968X
...
25
JAM NUT TI PLN-73350500
...
26
PAD IDLER TI PLN-109227X
...
27
PULLEY W/SPACER PLN-2009J
...
28
NUT.HEX.3/8-16UNC PLN-73220600
...
29
SET SCREW PLN-23200404
...
30
ENGINE PULLEY TI PLN-101189L
...
31
WASHER PLN-19131316
...
xx
DECAL, BELT GUARD PLN-129222
...
xx
NLA PLN-129214

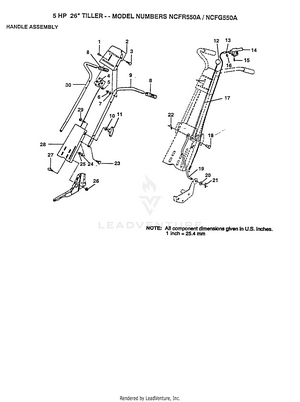

HANDLE ASSEMBLY

...
...
1
SCREW PLN-71091008
...
2
BRKT HDLE TI PLN-127046X423
...
xx
"BRKT,HANDLE" PLN-127046X429
...
3
BOLT PLN-72140512
...
4
SUB= 532127011 PLN-127011X
...
5
NUT PLN-73731000
...
6
SUB= 73690500 PLN-73680500
...
7
WASHER PLN-19111116
...
8
SUB= 624A78 PLN-9266R
...
9
SUB= 2623J500 PLN-2623J
...
10
WASHER PLN-19121414
...
11
SUB= 136376 PLN-63688
...
12
SUB= 106932X PLN-100196K
...
13
CABLE CLUTCH T PLN-3066J
...
14
CONTROL LEVER TI PLN-2635J
...
15
SCREW PLN-23200405
...
16
E-RING PLN-12000027
...
17
ROD REVERSE TI PLN-101248K
...
18
RIVET.RD.HD.DRILL PLN-1778E
...
19
REVERSE ROD TI PLN-2613J
...
20
WASHER PLN-19131316
...
21
COTTER PIN PLN-76020412
...
22
SUB= 3145 PLN-76020308
...
23
BOLT CT PLN-471J
...
24
LOCKWASHER PLN-10040500
...
25
NUT.HEX.5/16-18 PLN-73220500
...
26
NUT PLN-98000129
...
27
BOLT PLN-72140506
...
28
SUB= 674A150505 PLN-674A150423
...
xx
"PANEL,HANDLE " PLN-674A150429
...
29
BOLT PLN-72110510
...
30
SUB= 2624J500 PLN-2624J
...
xx
DECAL, THROTTLE PLN-121751X
...
xx
DECAL REVERSE PLN-121753X
...
xx
DECAL TI PLN-110614X
...
xx
PLATE, LOGO (HANDLE BRACKET) PLN-129213
...
xx
"MANUAL,OWNERS" PLN-129220
...
xx
"MANUAL,OWNERS" PLN-129221

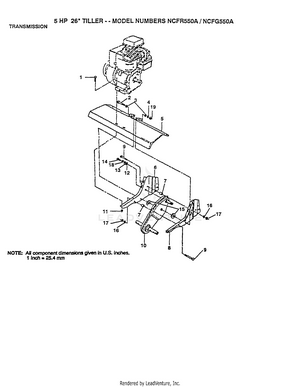

TRANSMISSION HOUSING

...
...
1
BOLT.HEX.5/16-1.5 PLN-74760524
...
2
BOLT.3/8-24X3.75 PLN-74610652
...
3
WASHER PLN-19131311
...
4
Washer, Lock Hvy. Hlcl. Spr. 3/8 PLN-10040600
...
5
SUB= 9057R505 PLN-9057R423
...
xx
"SHIELD,TINE" PLN-9057R429
...
6
SUB= 1949J500 PLN-1949J
...
7
SPLIT SPACER RT PLN-9173R
...
8
BRACKET.ENG.LH. PLN-110519X
...
9
SUB= 74780544 PLN-74760544
...
10
SUB= 532126669 PLN-126669X
...
11
NUT PLN-73510500
...
12
WASHER PLN-19091412
...
13
WASHER PLN-19092016
...
14
BOLT PLN-74610412
...
15
WASHER PLN-19171616
...
16
LOCKWASHER PLN-10040500
...
17
NUT.HEX.5/16-18 PLN-73220500
...
18
LOCKWASHER PLN-10040400
...
19
GRIPCO NUT PLN-7810H
...
xx
DECAL TI PLN-110612X
...
*-
SUB= 120075X PLN-120076X
...
xx
SUB= 271948 PLN-121543X
...
...
...
