product name

Husqvarna 961240001 (2004-12) Walk-Behind Mower

Model: 961240001 (2004-12)

Save
 Part Not Listed?Part Not Listed?
product name

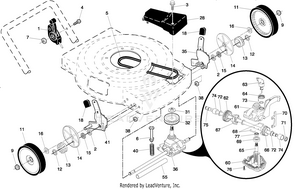

Drive

...
...
1
Drive Control Assembly PLN-184588
...
2
Bearing, Wheel Adjuster PLN-88058
...
3
Screw, Tapping, Pan Head #10-24 x 2-3/4 PLN-143603
...
4
Screw, Machine, Pan Head 1/4-20 x 2-3/16 PLN-158755
...
5
V-Belt PLN-146527
...
6
Bolt, Hex Head 1/4-20 x 2 PLN-150495
...
7
Nut, Hex, Flanged 1/4-20 PLN-191730
...
9
Locknut PLN-145212
...
11
Wheel & Tire Assembly PLN-196149
...
12
E-Ring PLN-12000058
...
13
Pinion PLN-137054
...
14
Dust Cover PLN-189403
...
16
Washer PLN-67725
...
18
Knob, Selector PLN-87877
...
28
Drive Cover PLN-194398X428
...
31
Locknut, Hex PLN-132010
...
32
Pulley, Drive PLN-189407
...
35
Kit, Wheel Adjuster, LH (Includes Knob and Bearing) PLN-151521
...
36
Gear Case Assembly, Complete PLN-187211
...
38
Locknut, Hex PLN-73800400
...
40
Spring PLN-137090
...
41
Kit, Wheel Adjuster, RH (Includes Knob and Bearing) PLN-151520
...
55
Drive Shaft Cover PLN-86012
...
60
Case, Lower Use Dow Corning #709 to reseal Gear Case Halves. PLN-183497
...
61
Case, Upper Use Dow Corning #709 to reseal Gear Case Halves. PLN-183498
...
62
Gear, 27 Teeth PLN-183499
...
63
Lever, Clutch PLN-183500
...
64
Spring, Return PLN-183501
...
65
Shaft, Input PLN-183502
...
66
Dog, Movable PLN-183503
...
67
Dog, Fixed PLN-183504
...
68
Wire, Formed PLN-183505
...
69
Bearing, Ball PLN-183506
...
70
Fork, Shift PLN-183507
...
71
Seal, Output Shaft PLN-183508
...
72
Washer PLN-183509
...
73
Seal, Case PLN-183510
...
74
Bushing PLN-183511
...
75
Shaft, Output PLN-187521
...
76
Screw PLN-183513
...
77
Seal, Input Shaft PLN-183514

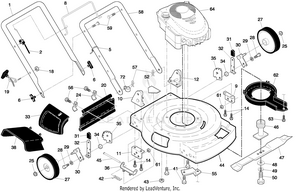

Frame

...
...
1
Upper Handle PLN-166860X479
...
2
Engine Zone Control Cable PLN-156581
...
5
Wire Tie PLN-664-26
...
6
Handle Knob PLN-189713X428
...
8
Control Bar PLN-146771
...
9
Support Bracket, Handle, LH PLN-153282X479
...
10
Handle Bracket Assembly, RH PLN-170345X479
...
11
Support Bracket, Handle, RH PLN-153350X479
...
12
Handle Bracket Assembly, LH PLN-170346X479
...
14
Screw, Thread Cutting 5/16-18 x 3/4 PLN-149741
...
18
Locknut, Keps PLN-132004
...
19
Rope Guide PLN-179585
...
20
Rear Deflector PLN-189008
...
24
Clamp, Rear Deflector PLN-87584X004
...
25
Locknut, Hex 3/18-16 PLN-83923
...
27
Wheel & Tire Assembly PLN-196146
...
28
Shoulder Bolt PLN-142748
...
29
Belleville Washer PLN-62335
...
30
Axle Arm Assembly PLN-145935X004
...
31
Knob, Selector PLN-87877
...
32
Spring, Selector PLN-700331X004
...
33
Discharge Guard PLN-151889
...
34
Spacer PLN-146630
...
35
Bracket, Wheel Adjuster PLN-700325X007
...
36
Bracket, Housing PLN-154132
...
38
Deflector, Discharge PLN-176509
...
41
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8 PLN-150406
...
42
Spring, Torsion PLN-152124
...
43
Locknut, Hex PLN-73800400
...
44
Kit, Lawn Mower Housing (Includes Key Number 52) PLN-196102
...
45
Rod, Hinge PLN-147286
...
46
Blade Adapter / Pulley PLN-189179
...
47
Blade, 22" PLN-192682
...
48
Washer, Hardened PLN-851074
...
49
Washer, Lock, Helical PLN-850263
...
50
Screw, Hex Head 3/8-24 x 1-3/8 Grade 8 PLN-851084
...
52
Decal, Danger PLN-141846
...
55
Mounting Bracket, Debris Shield PLN-188839X004
...
56
Screw, Hex Washer Head #10-24 x 1/2 PLN-750097
...
57
Hairpin Cotter PLN-51793
...
58
Lower Handle PLN-151590X479
...
59
Handle Bolt PLN-191574
...
61
Locknut, Hex PLN-751592
...
62
Debris Shield PLN-188784
...
63
Screw, Debris Shield PLN-192325
...
72
Clip, Cable PLN-192770
...
72
Warning Decal (not shown) PLN-161058
...
72
Operator's Manual, English PLN-193733
...
72
Operator's Manual, Spanish PLN-193743
...
72
Repair Parts Manual PLN-195592
...
72
Grass Catcher Available accessories not included with lawn mower PLN-GCK5000
...
...
...
