Husqvarna 4A (1999 & Before) Walk Behind Rotary Mower

Model: 4A (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

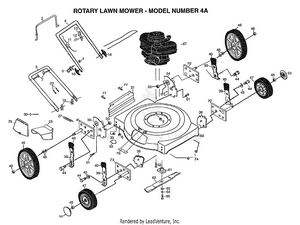

ROTARY LAWN MOWER

...
...
1
SUB= 73800400 PLN-63601
...
2
CONTROL BAR PM PLN-86902
...
3
ROPE GUIDE PLN-132001
...
4
UPPER HANDLE PLN-160834X479
...
5
LOWER HANDLE PLN-160609X479
...
6
SUB= 73800400 PLN-63601
...
7
BOLT.HANDLE.LM PLN-131959
...
11
"CONTROL-ZONE,ENG" PLN-153892
...
12
TAPPING SCREW PLN-750097
...
13
"BRKT,UPSTOP" PLN-850733X004
...
16
KNOB HANDLE PLN-136376
...
19
HAIRPIN COTTER PLN-51793
...
21
SKIRT.REAR.FGD.22 PLN-140540
...
22
SUB= 7192J PLN-664-26
...
23
GUARD.DISCHARGE PLN-160831
...
27
HINGE.SPRING PLN-160832
...
30
HINGE.ROD.22SD PLN-160833
...
33
SUB= 73690500 PLN-63124
...
34
BRKT.WHEEL.SUPPORT.LEFT PLN-161107X479
...
35
SUB= 169585 PLN-161108X479
...
36
WHEEL.BRKT.ADJ. PLN-160835X007
...
39
SLECTOR SPRING PLN-160826X004
...
40
KNOB PM PLN-87877
...
41
ASSM.AXLE.ARM.RIGHT PLN-161111X004
...
43
WASHER.BELLEVELLE PLN-19112222
...
44
SHOULDER BOLT PLN-160828
...
45
WHEEL.14X2.PR.RAD PLN-701401
...
46
HEX FLANGE LOCKNT PLN-83923
...
47
WHEEL.8X2.PR.RAD. PLN-146247
...
48
WAVE WASHER PLN-57143
...
50
HUB CAP PLN-77400
...
51
BOLT PLN-74760514
...
52
BOLT.ENG.3/8-16 PLN-150406
...
55
DECAL HYT PLN-107339X
...
59
LAWNMOWER HOUSING KIT PLN-161469
...
61
ADAPTOR.BLADE.LM PLN-851514
...
62
"BLADE.MULCH.22""" PLN-141114
...
63
"WASHER,HARDEN" PLN-851074
...
64
LOCKWASHER PLN-850263
...
65
SCREW PLN-851084
...
70
ARM.ASM.AXLE.REAR PLN-161109X004
...
72
ARM.ASM.AXLE.RR/LF PLN-161114X004
...
73
SUB= 167133X004 PLN-161113X004
...
74
LOCKNUT PLN-751153
...
75
MULCHER PLATE PLN-160830
...
76
CLIP.CLOSECUT.22SD PLN-161622
...
xx
MANUAL.GEN.PUSH PLN-161116
...
xx
MANUAL.OPER.FRENCH PLN-163686
...
xx
MANUAL.P.4A PLN-164119
...
xx
GRASS CATCHER KIT PLN-GCK3300
...
...
...
