product name

Husqvarna 425133 (1996) Walk Behind Rotary Mower

Model: 425133 (1996)

Save
 Part Not Listed?Part Not Listed?
product name

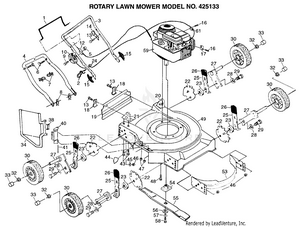

ROTARY LAWN MOWER

...
...
1
CONTROL BAR PM PLN-86902
...
2
ROPE GUIDE PLN-132001
...
3
SUB= 160223X479 PLN-132649X479
...
4
LOWER HANDLE PLN-151516X479
...
5
SUB= 73800400 PLN-63601
...
6
BOLT.HANDLE.LM PLN-131959
...
7
SUB= 7192J PLN-151517
...
8
HAIRPIN COTTER PLN-51793
...
9
SCREW.HXHD.WASH. PLN-144929
...
10
CONTROL THROTTLE PLN-851462
...
12
"CABLE,ENG ZONE CO" PLN-130861
...
13
TAPPING SCREW PLN-750097
...
14
"BRKT,UPSTOP" PLN-850733X004
...
15
KNOB HANDLE PLN-136376
...
16
SCREW PM PLN-83816
...
17
CABLE CLAMP PLN-213146
...
18
"BRKT,DEFL PM" PLN-87584X004
...
19
SKIRT.REAR.FGD.22 PLN-140540
...
20
HDLE BRKT ASSY LH PLN-151667X479
...
21
HDLE BRKT ASSY.RH PLN-151665X479
...
22
BRACKET.ADJ.9POS. PLN-700325X007
...
23
SPACER.HEIGHT.ADJ PLN-146630
...
24
NUT PLN-73510400
...
25
SPRING SELECTOR PLN-700331X004
...
26
KNOB PM PLN-87877
...
27
ARM.AXLE.ASM.BZP. PLN-145935X004
...
28
"WASHER, BELLEVIL." PLN-62335
...
29
BOLT.SHLD.W/PATCH PLN-151611
...
30
WHEEL.ASM PLN-800220
...
32
HEX FLANGE LOCKNT PLN-83923
...
33
HUB CAP-PLASTIC PLN-800090
...
34
GUARD.DISCH.22SD. PLN-145282
...
38
SUB= 152186 PLN-145286
...
40
BRACKET.HINGE.W/F PLN-147775
...
41
ROD.HINGE.COMBI-C PLN-147286
...
43
SCREW 5/16-18X3/4 PLN-149741
...
44
DECAL-DANGER PM PLN-85463
...
45
SUB= 19132012 PLN-61537
...
46
SUB= 73220600 PLN-54178
...
47
SUB= 73800400 PLN-63601
...
48
BOLT.ENG.3/8-16 PLN-150406
...
49
MOWER HSG KIT PLN-152917
...
53
BAFFLE.FRT/REAR PLN-700929X479
...
54
BLADE ADAPTOR PLN-850977
...
55
"BLADE.MULCH.22""" PLN-141114
...
56
"WASHER,HARDEN" PLN-851074
...
57
LOCKWASHER PLN-850263
...
58
SCREW PLN-851084
...
61
GUIDE CLIP PM PLN-87930
...
xx
MANUAL.OP.GEN.PUS PLN-145655
...
xx
MAN.PART.425133.E PLN-152916
...
...
...
