product name

Husqvarna 409940 (1999 & Before) Walk Behind Rotary Mower

Model: 409940 (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

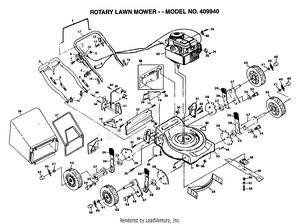

ROTARY LAWN MOWER

...
...
1
CONTROL BAR PM PLN-86902
...
2
ROPE GUIDE PLN-132001
...
3
SUB= 151516X479 PLN-84676X479
...
4
BOLT.HANDLE.LM PLN-131959
...
5
SUB= 73800400 PLN-63601
...
6
SUB= 7192J PLN-664-26
...
7
SCREW.HXHD.WASH. PLN-144929
...
8
MULCHER PLATE PLN-133169X479
...
9
CONTROL THROTTLE PLN-851462
...
10
"CABLE,ENG ZONE CO" PLN-130861
...
11
TAPPING SCREW PLN-750097
...
12
4 PLN-85073X004
...
13
HINGE SCREW PLN-88652
...
14
"NUT,WING PM" PLN-128638
...
15
HAIRPIN COTTER PLN-51793
...
16
SCREW PM PLN-86344
...
17
SUB= 160223X479 PLN-132649X479
...
18
REAR BAFFLE PLN-700063X479
...
19
DISCHARGE GUARD PLN-133188X479
...
20
PLATE.BACK.20RD PLN-700356X479
...
21
BAFFLE.SIDE PLN-700363X479
...
22
SKIRT.PUSH.20RD PLN-140657
...
23
SUB= 146630 PLN-84920
...
24
SCREW PM PLN-83816
...
25
CABLE CLAMP PLN-213146
...
26
KNOB PM PLN-87877
...
27
CATCHER FRAME PLN-133413
...
28
GBAG.250B1.BLK PLN-701619
...
29
SCREW PLN-54583
...
30
LOCKNUT PM PLN-751592
...
31
SUB= 150956 PLN-700913X479
...
32
SUB= 150956 PLN-700915X479
...
33
SCREW PLN-55187
...
34
BOLT SHLD 3/8-16 PLN-142748
...
35
"WASHER, BELLEVIL." PLN-62335
...
37
AXLE ARM PLN-85021X004
...
38
SPRING SELECTOR PLN-700331X004
...
39
BRACKET.ADJ.9POS. PLN-700325X007
...
40
RETAINER CLIP PM PLN-85179
...
41
WASHER PLN-52160
...
42
WHL. & TIRE ASM. PLN-752005
...
45
HUB CAP-PLASTIC PLN-800090
...
46
SCREW PLN-850998
...
48
BLADE ADAPTOR PLN-850977
...
49
SUB= 145106 PLN-134871
...
50
"WASHER,HARDEN" PLN-851074
...
51
LOCKWASHER PLN-850263
...
52
SCREW PLN-851084
...
53
KIT.HSG.20RD.PUSH PLN-146489
...
56
"KIT, REAR DOOR PM" PLN-48257
...
58
SUB= 144961 PLN-132198X479
...
60
DECAL-DANGER PM PLN-85463
...
63
GUIDE CLIP PM PLN-87930
...
64
BLIND RIVET PLN-128415
...
xx
MANUAL.O.409940.E PLN-146482
...
xx
CLIPPING DEFL PLN-MA36
...
...
...
