product name

Husqvarna 3P302E (1998) Walk Behind Rotary Mower

Model: 3P302E (1998)

Save
 Part Not Listed?Part Not Listed?
product name

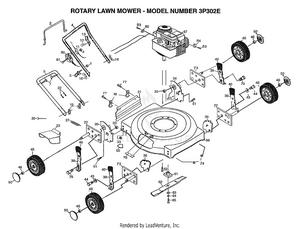

ROTARY MOWER

...
...
1
SUB= 73800400 PLN-63601
...
2
CONTROL BAR PM PLN-86902
...
3
ROPE GUIDE PLN-132001
...
4
UPPER HANDLE PLN-160834X479
...
5
LOWER HANDLE PLN-160609X479
...
7
BOLT.HANDLE.LM PLN-131959
...
11
"CABLE,ENG ZONE CO" PLN-130861
...
12
TAPPING SCREW PLN-750097
...
13
"BRKT,UPSTOP PM" PLN-86899X004
...
16
"NUT,WING PM" PLN-128638
...
19
HAIRPIN COTTER PLN-51793
...
21
SKIRT.REAR.FGD.22 PLN-140540
...
22
SUB= 7192J PLN-664-26
...
23
GUARD.DISCHARGE PLN-160831
...
27
HINGE.SPRING PLN-160832
...
30
HINGE.ROD.22SD PLN-160833
...
33
LOCKNUT PLN-751153
...
34
WHL BRKT SUPT LEFT PLN-161268X479
...
35
WHL BRKT SUPT RIGHT PLN-161269X479
...
36
WHEEL.BRKT.ADJ. PLN-160835X007
...
39
SLECTOR SPRING PLN-160826X004
...
40
KNOB PM PLN-87877
...
43
WASHER.BELLEVELLE PLN-19112222
...
44
SHOULDER BOLT PLN-160828
...
45
WHEEL.ASM PLN-800220
...
46
HEX FLANGE LOCKNT PLN-83923
...
50
HUB CAP PLN-77400
...
51
SCREW 1/4X20 PLN-17600406
...
52
BOLT.ENG.3/8-16 PLN-150406
...
55
DECAL HYT PLN-107339X
...
59
LAWN MOWER HOUSING PLN-161115
...
61
ADAPTOR.BLADE.LM PLN-851514
...
62
"BLADE.MULCH.22""" PLN-141114
...
63
"WASHER,HARDEN" PLN-851074
...
64
LOCKWASHER PLN-850263
...
65
SCREW PLN-851084
...
72
ARM.ASM.AXLE.RR/LF PLN-161114X004
...
73
SUB= 167133X004 PLN-161113X004
...
74
LOCKNUT PLN-751153
...
76
CLIP.CLOSECUT.22SD PLN-161622
...
77
TAPPING SCREW PLN-750097
...
78
"BRKT,DEFL PM" PLN-87584X004
...
79
SHOULDER BOLT PLN-160829
...
80
CONTROL THROTTLE PLN-851462
...
81
PAN HEAD SCREW PLN-158755
...
82
CABLE CLAMP PLN-111190X
...
83
SCREW PM PLN-83816
...
84
GUIDE CLIP PM PLN-87930
...
xx
MANUAL.OP.GEN.PUS PLN-145655
...
xx
MANUAL.P.3P302E PLN-164007
...
xx
GRASS CATCHER KIT PLN-GCK3300
...
xx
MULCHER KIT PLN-MK3300
...
...
...
